AFL Airfield Lighting Cable / 5 KV Low Voltage Electrical Wiring 1x6mm2 Low Smoke Zero Halogen
AFL Airfield Lighting Cable / 5 KV Low Voltage Electrical Wiring 1x6mm2 Low Smoke Zero Halogen
AFL Airfield Lighting Cable / 5 KV Low Voltage Electrical Wiring 1x6mm2 Low Smoke Zero Halogen
AFL Airfield Lighting Cable / 5 KV Low Voltage Electrical Wiring 1x6mm2 Low Smoke Zero Halogen
Specifications
Brand Name :
yifang
Model Number :
5kV FAA L-824
Certification :
CE ISO
Place of Origin :
China
MOQ :
1000 meter
Price :
USD 1~10 PER METER
Supply Ability :
10000 M PER WEEK
Packaging Details :
steel wooden drum or steel drum
Standard :
ICEA S-93-639 / NEMA WC74 FAA L-824 Type C FAA AC 150 / 5345-7E
Application :
Airfield lighting systems AFL
Conductor :
Stranded bare or tinned copper.
Minimum Bending Radius static: :
static: 10×OD; dynamic: 20×OD
Operating Temperatures :
-40℃~+90℃
Impacted Resistant :
Yes
Weather Resistant :
Yes
Description

FAA Certified Airfield Lighting (AFL) cable 5 KV 1x6mm2

Applications

These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational

FAA Certified Airfield Lighting (AFL) 5 KV grade, Single Core 6 sqmm, Copper Conductor, Copper shielded, XLPE insulated, and with inner and outer semi conductor, Polyethylene (PE) outer sheathed, Copper Braid, Unarmoured Underground Cable for airfield lighting Primary Circuit, confirming to specification as specified in technical specification of the following sizes as required and suitable for communication on existing ALCMS system.

Standards

FAA AC 150 / 5345-7E
ICEA S-93-639 / NEMA WC74

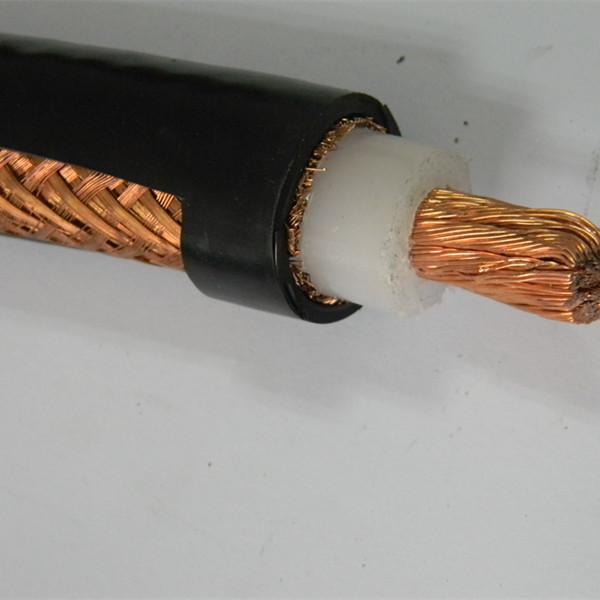

Construction

Conductor: Stranded bare or tinned copper.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Semi conducting tape or extruded.
Shield: Copper or brass tape(s). Tinned copper wire braid
Sheath: PVC. PE/XLPE

Technical Data

Technical Data

Rated Voltage Uo/U (Um) 5kV
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -40℃~+90℃
Minimum Bending Radius static: 10×OD; dynamic: 20×OD
Impacted Resistant Yes
Weather Resistant Yes



Specific properties

CONSTRUCTION NO. OF STRAND NOMINAL INSULATION THICKNESS NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
NO.× AWG - MM INCHES MM INCHES KG/KM LBS/KFT
1×6mm² 7/19 2.3 0.09 11.0 0.43 180 121
1×8 7/19 2.3 0.09 14.3 0.565 298 200
1×6 7/19 2.3 0.09 15.4 0.605 366 246
1×4 7/19 2.3 0.09 17.0 0.668 513 345



Drawing:

ITEM DESCRIPTION UNIT PARAMETER
1 Voltage V 5000
2 Applicable Standard -- IEC 60502, IEC60228
3 Conductor
Material -- Stranded Copper
Diameter of Conductor Strands mm ≤1.04
Approx. Conductor Diameter mm 3.12
Conductor Cross-sectional Area mm2 6
Core number of conductor -- 1
4 Conductor Screen
Material -- Semi-conducting compound
Nominal thickness mm 0.6
5 Insulation
Material -- XLPE
Nominal thickness mm 2.3
6 Insulation Screen
Material -- Semi-conducting compound
Nominal thickness mm 0.6
7 Metallic Screen
Material Copper wire braid
Nominal thickness 0.1
8 Outer sheath
Material PVC
Nominal thickness 0.76
9 Approximate Overall Diameter mm 11.8
10 Approximate Weight Kg/km 190
11 D.C. Resistance of conductor at 20℃ Ω/km ≤ 3.08
