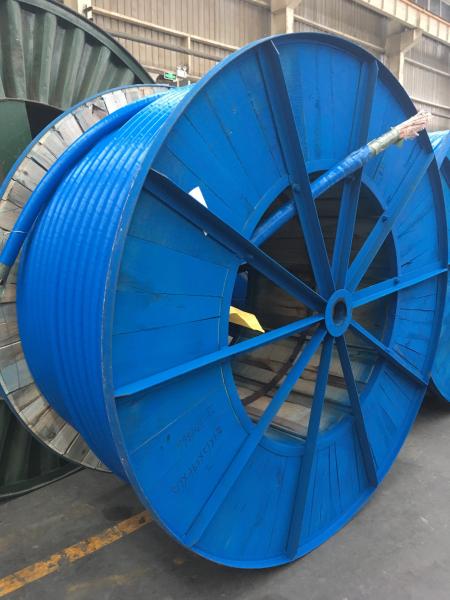

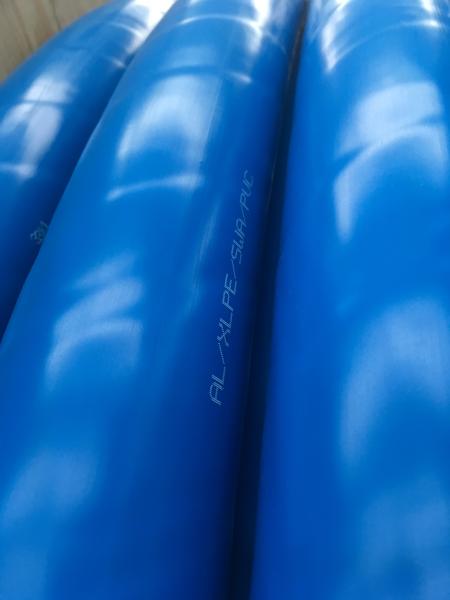

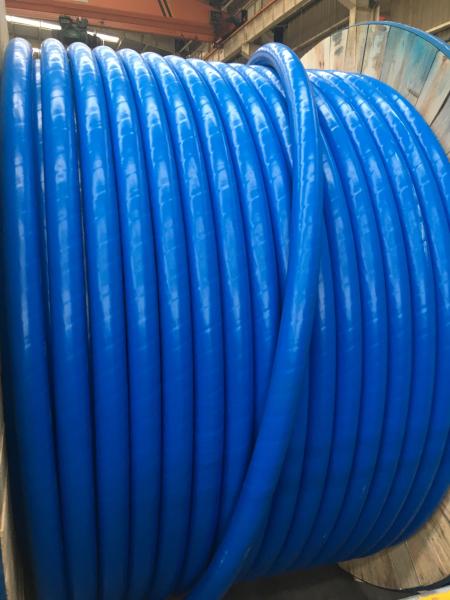

Single Core Medium Voltage Power Cables 630 Mm2 Aluminum XLPE Power Cable
Single Core Medium Voltage Power Cables 630 Mm2 Aluminum XLPE Power Cable
Single Core Medium Voltage Power Cables 630 Mm2 Aluminum XLPE Power Cable
Single Core Medium Voltage Power Cables 630 Mm2 Aluminum XLPE Power Cable
Single Core Medium Voltage Power Cables 630 Mm2 Aluminum XLPE Power Cable
Single Core Medium Voltage Power Cables 630 Mm2 Aluminum XLPE Power Cable
Single Core Medium Voltage Power Cables 630 Mm2 Aluminum XLPE Power Cable
Single Core Medium Voltage Power Cables 630 Mm2 Aluminum XLPE Power Cable
Single Core Medium Voltage Power Cables 630 Mm2 Aluminum XLPE Power Cable
Single Core Medium Voltage Power Cables 630 Mm2 Aluminum XLPE Power Cable
Specifications
Brand Name :
YIFANG
Model Number :
MV XLPE CABLE
Certification :
ISO KEMA
Place of Origin :
CHINA
Insulation material :
XLPE
Conductor material :
Aluminum
Application :
Construction,Underground
Type :
Medium Voltage
Jacket :
PVC
Color :
blue
Description

Single Core Medium Voltage Power Cables 630 Mm2 Aluminum XLPE Power Cable

33kV XLPE power Cable is used indoor or outdoor, in tunnel, cable furrow or pipe, to be laid underground, be applicable to the well, water inside and fall in the bad soil.

Integrated intelligent high voltage XLPE cable can online monitor the operation parameters during the operation of high voltage cable. It can online real-time monitor cable actual operation temperature and then realize online temperature measurement and control, online fault location and improve the operation load of cable system. Besides, it also can accomplish online monitoring of partial discharge, current carrying capacity and outer sheath condition. It can provide important specification judging evidence for cable safety operation and more load operation, ensure the cable safety operation, extend cable service life, develop the cable transmission capability to the deepest extent, reduce the operation cost, meet the requirement of customers' safety and economy, and then decrease the replace frequency, reach energy saving and consumption reducing, increase utilization of transmission energy, achieve the best effect of transmission performance of XLPE cable, and have great economic benefit and social benefit.

APPLICATION:

Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.

TECHNICAL DATA:

Rated Voltage (Uo/U)(Um) 33KV
Conductor Class 2 Stranded Copper or Aluminum Conductors for Single Core and three-Core Cables
Inner Semi-Conductive Layer Semi-conductive material
Insulation XLPE (Cross-Linked Polyethylene)
Outer Semi-Conductive Layer Semi-conductive material
Insulation Screen Semi-conductive XLPE (Cross-Linked Polyethylene)
Screen Copper wires or Copper tape
Armour Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath PVC (Polyvinyl Chloride)
Temperature Rating Fixed: -20°C to +70°C
Flexed: -5°C to +70°C
Short Circuit Temperature +250°C
Minimum Bending Radius 15 x overall diameter
