25kv SAC cable Spaced Aerial Cable Aluminum conductor XLPE insulation XLPE jacket single core cable
25kv SAC cable Spaced Aerial Cable Aluminum conductor XLPE insulation XLPE jacket single core cable
25kv SAC cable Spaced Aerial Cable Aluminum conductor XLPE insulation XLPE jacket single core cable
25kv SAC cable Spaced Aerial Cable Aluminum conductor XLPE insulation XLPE jacket single core cable
25kv SAC cable Spaced Aerial Cable Aluminum conductor XLPE insulation XLPE jacket single core cable
25kv SAC cable Spaced Aerial Cable Aluminum conductor XLPE insulation XLPE jacket single core cable
Specifications
Brand Name :
Yifang
Model Number :
SAC
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1000
Price :
USD0.5-3.5 /METER
Payment Terms :
L/C, T/T
Supply Ability :
300000M per month
Delivery Time :
10-30 working days
Packaging Details :
wooden drum
conductor :
Aluminum or Aluminum alloy , ACSR
Insulation :
XLPE
Sheath :
XLPE
Voltage :
15kv, 25kv ,35kv
Description

25 kV ALUMINUM STRANDED CONDUCTOR CROSS-LINKED POLYETHYLENE INSULATED AND SHEATHED

SPACED AERIAL CABLE

25kv SAC cable Spaced Aerial Cable Aluminum conductor XLPE insulation XLPE jacket single core cable

Application

Used for transmission of electrical energy with overhead transmission lines.

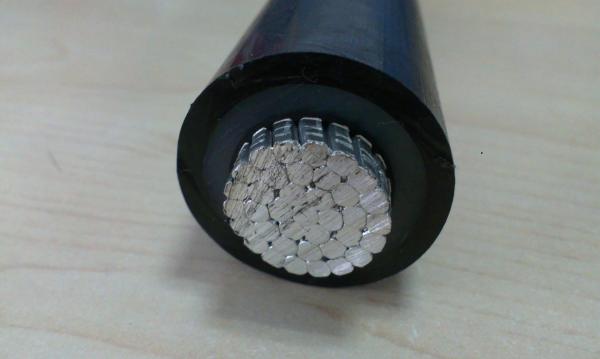

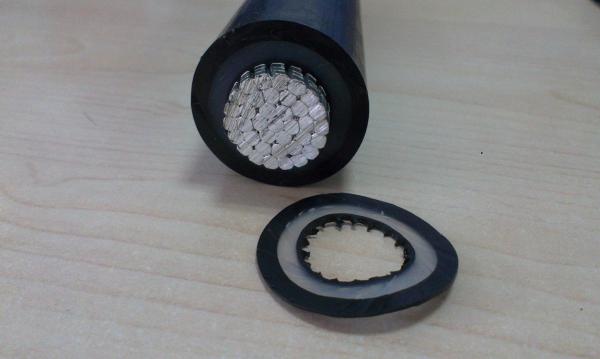

Construction

Conductor : Compact stranded hard drawn Aluminium wire.

Conductor shiel : Semi-conducting cross-linked polyethylene.

Insulation : Cross-linked polyethylene (Natural color)

Sheath : Weather resistant cross-linked polyethylene (Black color)

Classification:

Max.Conductor operation temperature : 90℃.

Short circuit conditions : 250℃ , 5 seconds

Rated voltage: 25 kV (Phase to phase).

Nominal
sectional
area
Number
of wire		 Diameter
of
conductor
(Approx.)		 Thickness
of
conductor screen		 Thickness
of
insulation		 Thickness
of
sheath		 Overall
diameter
(Approx.)		 Maximum
DC.
conductor
resistance
at 20oC		 Conductor tensile strength Rated ampacities
in free air
at 40oC
( Ambient )		 Cable
weight
(Approx.)
mm2 Min mm mm mm mm mm Ω/km N A kg/km
25 6 6.0 0.5 3.18 3.18 20.0 1.20 3762 135 340
35 6 7.0 0.5 3.18 3.18 21.0 0.868 5177 155 392
50 6 8.2 0.5 3.18 3.18 22.0 0.641 7011 185 456
70 12 9.9 0.5 3.18 3.18 24.0 0.443 10354 230 538
95 15 11.6 0.5 3.18 3.18 25.5 0.320 13727 285 645
120 18 13.0 0.5 3.18 3.18 27.0 0.253 17339 325 742
150 18 14.4 0.5 3.18 3.18 28.5 0.206 21033 380 841
185 30 16.2 0.5 3.18 3.18 30.0 0.164 26732 425 976
240 34 18.6 0.5 3.18 3.18 32.5 0.125 34679 518 1181
300 34 20.8 0.5 3.18 3.18 35.0 0.100 43349 600 1392
400 53 23.6 0.5 3.18 3.18 37.5 0.0778 55707 689 1671

25kv SAC cable Spaced Aerial Cable Aluminum conductor XLPE insulation XLPE jacket single core cable

25kv SAC cable Spaced Aerial Cable Aluminum conductor XLPE insulation XLPE jacket single core cable
