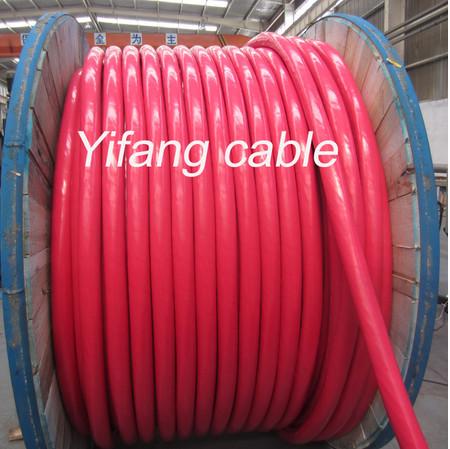

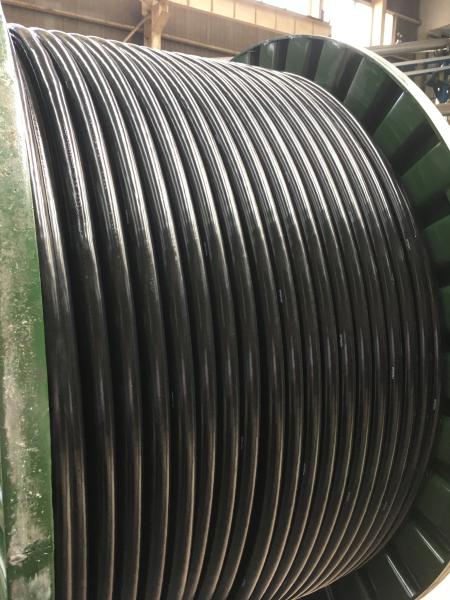

11kv 1X300mm2 1X500mm2 Medium Voltage Power Cables Copper XLPE Cable Bangladesh Tender
11kv 1X300mm2 1X500mm2 Medium Voltage Power Cables Copper XLPE Cable Bangladesh Tender
11kv 1X300mm2 1X500mm2 Medium Voltage Power Cables Copper XLPE Cable Bangladesh Tender
11kv 1X300mm2 1X500mm2 Medium Voltage Power Cables Copper XLPE Cable Bangladesh Tender
11kv 1X300mm2 1X500mm2 Medium Voltage Power Cables Copper XLPE Cable Bangladesh Tender
11kv 1X300mm2 1X500mm2 Medium Voltage Power Cables Copper XLPE Cable Bangladesh Tender
11kv 1X300mm2 1X500mm2 Medium Voltage Power Cables Copper XLPE Cable Bangladesh Tender
11kv 1X300mm2 1X500mm2 Medium Voltage Power Cables Copper XLPE Cable Bangladesh Tender
11kv 1X300mm2 1X500mm2 Medium Voltage Power Cables Copper XLPE Cable Bangladesh Tender
11kv 1X300mm2 1X500mm2 Medium Voltage Power Cables Copper XLPE Cable Bangladesh Tender
Specifications
Brand Name :
Yifang
Model Number :
11kv single core cable
Certification :
KEMA ISO
Place of Origin :
China
MOQ :
500meters
Price :
1~100usd
Payment Terms :
L/C, T/T
Supply Ability :
100kM PER WEEK
Delivery Time :
30-60 DAYS
Packaging Details :
DRUMS
Insulation material :
XLPE
Conductor material :
Copper
Application :
Construction,Industrial,Underground
Type :
Medium Voltage
Jacket :
PVC
Color :
Black,red
Rated voltage :
8.7/10
Product name :
Medium Voltage Power Cable
Standard :
IEC60502
Packing :
Wooden-steel Drum
Cores :
single core
Description

Cu/XLPE/CWS/SWA/PVC Power Cable 11KV Cable XLPE

1.Application:

The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6KV/6KV~26/35KV.

2.Description:

For XLPE insulated power cable, either chemical method or physical method is employed to transform the molecular structure of PE from chain into three-dimensional network, i.e. thermoplastic PE is transformed into thermosetting XLPE. After cross-linking, the thermal and mechanical properties of PE have been greatly improved while its excellent electrical property are still retained.

The maximum permissible operating temperature of the conductor of a XLPE insulated power cable is 90 which resistance is higher than that of PVC or PE insulated power cable. The cable has the advantage of simplicity in construction, lightness in weight, convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.

3. Product Standard: IEC 60502-2

XLPE power cable specifications

Rate
Voltage(kv)
Sectional
Area(mm 2 )
No.of Core
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
1 Core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
2 Core 1.5-185 25-185
3 Core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400
4 Core 2.5-400 25-400
5 Core 2.5-400 25-400

11kv 1X300mm2 1X500mm2 Medium Voltage Power Cables Copper XLPE Cable Bangladesh Tender
