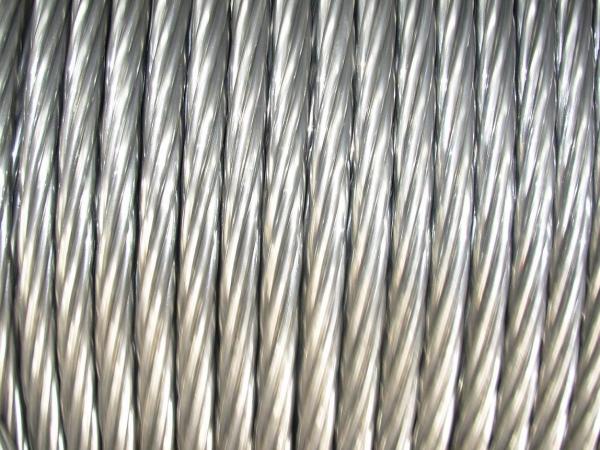

AAAC 120mm2 Overhead Conductor All Aluminum Conductor Round Shape OHSAS
AAAC 120mm2 Overhead Conductor All Aluminum Conductor Round Shape OHSAS
AAAC 120mm2 Overhead Conductor All Aluminum Conductor Round Shape OHSAS
AAAC 120mm2 Overhead Conductor All Aluminum Conductor Round Shape OHSAS
AAAC 120mm2 Overhead Conductor All Aluminum Conductor Round Shape OHSAS
AAAC 120mm2 Overhead Conductor All Aluminum Conductor Round Shape OHSAS
Specifications
Brand Name :
Yifang
Model Number :
AAAC 120mm2
Certification :
CCC,ISO,OHSAS
Place of Origin :
China
MOQ :
500M
Price :
$0.01
Payment Terms :
L/C, D/P, T/T
Supply Ability :
100000Ton per year
Delivery Time :
5~15days
Packaging Details :
Wooden and steel reels
Materail :
Aluminum Alloy Wire
Application :
Overhead
Round :
Yes
Product name :
Aluminum conductor steel reinforced conductor
Material :
Aluminum
Description

AAAC 120mm2 Overhead Conductor All Aluminum Conductor Round Shape OHSAS


120mm2 AAAC Conductor
1. Application
AAAC Conductor is used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics.
1). AAAC conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction.
2). The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power loss in overhead distribution and transmission lines, when replacing the aluminum conductor steel reinforced, the AAAC can save 5-8% of the construction cost.
3). AAAC referred to have higher strength but lower conductivity than pure aluminum being lighter, alloy conductors can sometimes be used to advantage in replace of the more conventional ACSR.2. Standard
2. Standard
ASTM B399, BS EN 50183, BS 3234, DIN 48201, IEC 61089, and ect.
3. Specification
AAAC Conductor according to ASTM B399

Code NameAreaSize & Stranding of ACSR with Equal DiameterNo. & Diameter of wiresOverall DiameterWeightNominal Breaking Load
NominalActual
MCMmm2AWG or MCMAl/Steelmmmmkg/kmkN
Akron30.5815.4866/17/1.685.0442.74.92
Alton48.6924.7146/17/2.126.3568.07.84
Ames77.4739.2226/17/2.678.0210812.45
Azusa123.362.381/06/17/3.3710.1117218.97
Anaheim155.478.652/06/17/3.7811.3521723.93
Amherst195.799.223/06/17/4.2512.7527330.18
Alliance246.9125.14/06/17/4.7714.3134538.05
Butte312.8158.6266.826/719/3.2616.3043748.76
Canton394.5199.9336.426/719/3.6618.3055158.91
Cairo465.4235.8397.526/719/3.9819.8865069.48
Darien559.5283.5477.026/719/4.3621.7978183.52
Elgin652.4330.6556.526/719/4.7123.5491197.42
Flint740.8375.3636.026/737/3.5925.161035108.21
Greely927.2469.8795.026/737/4.0228.141295135.47


AAAC Conductor according to DIN 48201

Code numberCalculated areaNumber of wiresDiameter of wireOverall diameter of conductorLinear massRated tensile strengthMax. DC resistance at 20ºC
mm2mm2 mmmmkg/kmdaNΩ/km
1615.8971.705.1434442.0910
2524.2572.106.3666771.3703
3534.3672.507.5949600.9669
5049.4873.009.013513820.6714
5048.35191.809.013313500.6905
7065.81192.1010.518118380.5073
9593.27192.5012.525626050.3579
120116.99192.8014.032232680.2854
150147.11372.2515.840641090.2274
185181.62372.5017.550050730.1842
240242.54612.2520.367067740.1383
300299.43612.5022.582783630.1120
400400.14612.8926.01104111760.0838
500499.63613.2329.11379139600.06709
625626.20912.9632.61732174900.0540
800802.09913.3536.92218224020.0418
1000999.71913.7441.12767279220.0335


AAAC Conductor according to EN50183

Code NameCalculated
Cross Section		No..Dia.of WiresOverall DiameterWeightRated Strength
mm²No./mmmmkg/kmkN
Box18.87/1.855.5551.45.55
Acacia23.87/2.086.2464.97.02
Almond30.17/2.347.0282.28.88
Cedar35.57/2.547.6296.810.46
Deodar42.27/2.778.31115.212.44
Fir47.87/2.958.85130.614.11
Hazel59.97/3.309.90163.417.66
Pine71.67/3.6110.8195.621.14
Holly84.17/3.9111.7229.524.79
Willow89.77/4.0412.1245,026.47
Oak118.97/4.6514.0324.535.07
Mulberry150.919/3.1815.9414.344.52
Ash180.719/3.4817.4496.153.31
Elm211.019/3.7618.8579.262.24
Poplar239.437/2.8720.1659.470.61
Sycamore303.237/3.2322.6835.289.40
Upas362.137/3.5324.7997.5106.82
Yew479.037/4.0628.41319.6141.31
Totara498.137/4.1429.01372.1146.93
Rubus586.961/3.5031.51622.0173.13
Sorbus659.461/3.7133.41822.5194.53
Araucaria821.161/4.1437.32269.4242.24
Redwood996.261/4.5641.02753.2293.88


4. Package
Packaged by standard wooden drum, steel-wooden drum, and steel drum.
