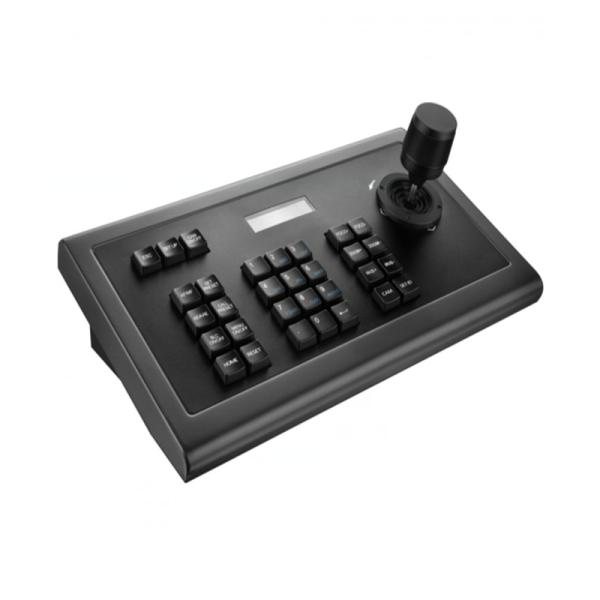

Support PELCO-D,PELCO-P and VISCA PTZ Control Keyboard or PTZ Controller Joystick
Support PELCO-D,PELCO-P and VISCA PTZ Control Keyboard or PTZ Controller Joystick
Support PELCO-D,PELCO-P and VISCA PTZ Control Keyboard or PTZ Controller Joystick
Support PELCO-D,PELCO-P and VISCA PTZ Control Keyboard or PTZ Controller Joystick
Support PELCO-D,PELCO-P and VISCA PTZ Control Keyboard or PTZ Controller Joystick
Support PELCO-D,PELCO-P and VISCA PTZ Control Keyboard or PTZ Controller Joystick
Support PELCO-D,PELCO-P and VISCA PTZ Control Keyboard or PTZ Controller Joystick
Support PELCO-D,PELCO-P and VISCA PTZ Control Keyboard or PTZ Controller Joystick
Support PELCO-D,PELCO-P and VISCA PTZ Control Keyboard or PTZ Controller Joystick
Support PELCO-D,PELCO-P and VISCA PTZ Control Keyboard or PTZ Controller Joystick
Support PELCO-D,PELCO-P and VISCA PTZ Control Keyboard or PTZ Controller Joystick
Support PELCO-D,PELCO-P and VISCA PTZ Control Keyboard or PTZ Controller Joystick
Specifications
Brand Name :
Yisen
Model Number :
FT-K02
Certification :
CE ROHS
Place of Origin :
Guangdong China
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram, paypol
Supply Ability :
2000pcs
Delivery Time :
2-6 work days
Packaging Details :
standard carton box with thick pearl cotton
Interfaces :
5PIN Crimping terminal,RS232 Port
Power Consumption :
6W MAX
Temperature :
-10℃～50℃
Description

Adopt RS485, RS422, RS232 multiple interface control signals, max up to 255 cameras

Support PELCO-D,PELCO-P and VISCA Control protocol

Metal housing, computer keyboard button design

Adopt 3D joystick to control the camera speed.

Control camera rotation, zoom, aperture, focus and other camera parameter settings

English & Chinese LCD display, displaying the real-time working status of the decoder and matrix

With button sound prompt function

Unique control code learning function allows customers to modify control code commands by themselves

Any device connected with RS485 cable can be set with different protocols and baud rates separately.

RS422 communication interface has the over-current protection ability to recover from short circuit.

The max communication distance is up to 1200M(0.5MM Twisted Pair Cable).

Technical Parameters

Parameters /Model No
Communication Mode RS485 Half duplex,RS422 Full duplex,RS232 Serial Port
Baud Rate 2400bps,4800bps,9600bps,19200bps

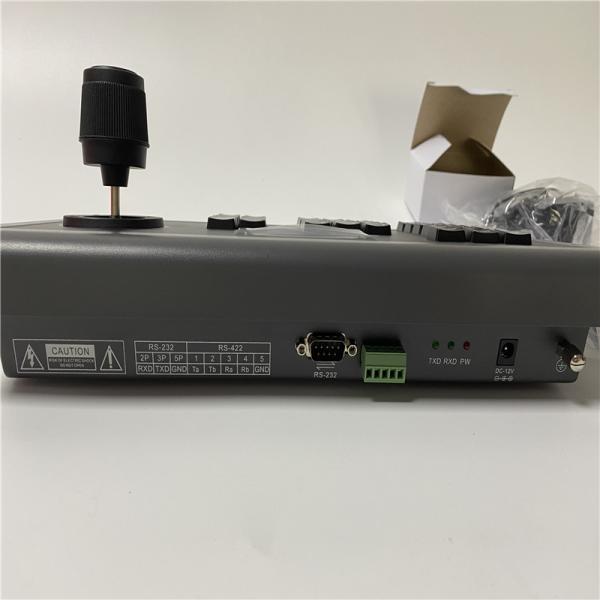

Interfaces 5PIN Crimping terminal,RS232 Port
Joystick Rocker 3D Control:Up,Down,Left,Right,Rotate)
Display Blue screen LCD
Input voltage DC12V±10%
Power Consumption 6W MAX
Temperature -10℃～50℃
Humidity ≦90%RH(No frosting)
Dimension 320mm(L)X179.3mm(W)X106.4mm(H)
