20m Ultra Long Constant Current Flexible Led Strip Light Tape 24V 12mm Led Flexible Ribbon
20m Ultra Long Constant Current Flexible Led Strip Light Tape 24V 12mm Led Flexible Ribbon
20m Ultra Long Constant Current Flexible Led Strip Light Tape 24V 12mm Led Flexible Ribbon
20m Ultra Long Constant Current Flexible Led Strip Light Tape 24V 12mm Led Flexible Ribbon
Specifications
Brand Name :
YIZEE LIGHT
Model Number :
CS8120-24V-12mm
Certification :
CE/RoHs
Place of Origin :
CHINA
MOQ :
100M
Price :
Negotiation
Payment Terms :
T/T, PayPal , Cash
Supply Ability :
50000m/month
Delivery Time :
7-10 working days according to quantity.
Packaging Details :
Neutral Packing, OEM Packing Are Available
Voltage :
24V
Power :
9.6W/Meter
IP Rating :
IP20/IP55/IP65/IP67

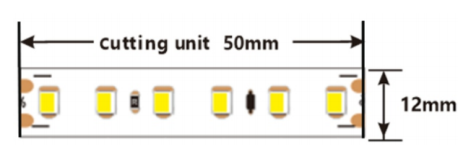

Cutting unit(mm) :
6 LED/50mm
LED Qty/m :
120 Leds/M 2825
CRI(Ra) :
>80(CRI >90/ CRI >95 optional)
Color Temperture :
2700/3000/3500/4000/6000k
PCB Width(mm) :
12 mm
Product Size(mm)) :
20000*12*1.6mm
Adhesive Tape :
55230H 3M tape
Package :
20M/roll (Customized length available)
Other Service :
OEM & ODM, One to One Communication
Description

20m Ultra Long Constant Current Flexible Led Strip Light Tape

Q1: Do LED strips need constant current or constant voltage?
A1 :Despite the lower efficiency being a disadvantage, constant voltage drivers are less costly than constant current drivers, so they are often used in many applications, like LED strip lights, because the manufacturer would not typically spring for more expensive drivers in these cases.

Product Description

1. SMD 2835,one bin only,SDCM<3

2. Single-ended power supply for 20 meters, Consistent luminance

3. High quality PFC, high thermal 3M adhesive

4. With life span over 60000H>Suitable for various dimming controllers

Product Parameter
Model No CS8120-24V-12mm
PCB Width 12mm
LED Qty/m 120Leds/M
PCB materials 3Oz Double-sided coated pure copper
Voltage(V) DC24V
Power(W) 9.6W/Meter
Luminous(lm/m) 680-890
LED Chip Brand Sanan
LED BINs 3-Step, one BIN only for each order
CRI(RA>) Ra >90
Color Tempertature 2700/3000/3500/4000/6000k
IP Rate IP20/IP55/IP65/IP67
View Angle 120
Product Size(mm) 20000*12*1.6mm
Package(m/roll) 20M/roll (Customized length available)
Cutting Unit 6 LED/50mm
Adhesive Tape 55230H 3M tape
Dimmable NO
Certificate UL,CE
Warranty 3 Years

20m Ultra Long Constant Current Flexible Led Strip Light Tape 24V 12mm Led Flexible Ribbon

Product Images

20m Ultra Long Constant Current Flexible Led Strip Light Tape 24V 12mm Led Flexible Ribbon

20m Ultra Long Constant Current Flexible Led Strip Light Tape 24V 12mm Led Flexible Ribbon20m Ultra Long Constant Current Flexible Led Strip Light Tape 24V 12mm Led Flexible Ribbon

Applications

Our Services

1. We can help all our customers in installing, design, and OEM/OED service.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.

4. We have rich experiences in different projects, we can provide professional customize service for customers who focus on project.
5. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
6. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.

FAQ

Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.

Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, but we also accept small order for trail.

Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.

Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.

Q5: What's the payment term?
A5: We accept T/T, PayPal , Cash.

Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
