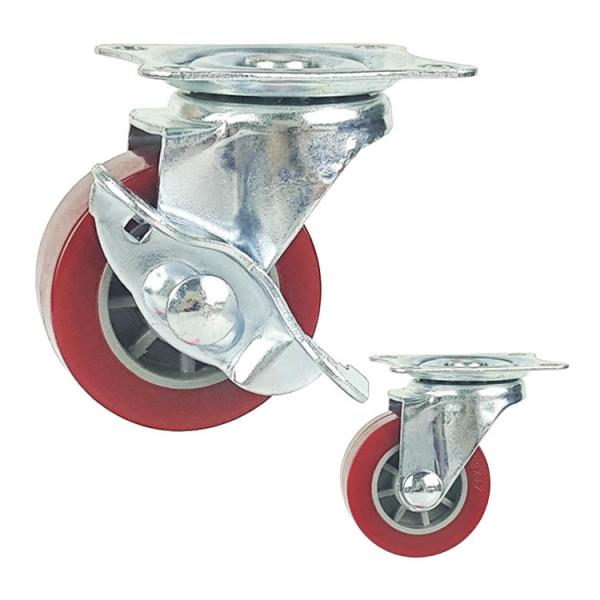

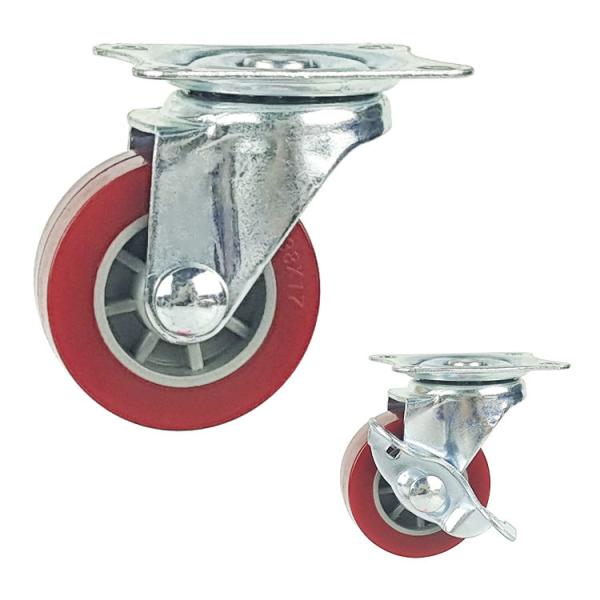

1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake
Specifications
Brand Name :
WBD
Model Number :
I001C040PUDB1
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
100000pcs per month
Delivery Time :
7-15days
Packaging Details :
OPP bag+carton
Product Name :
Customize 1.5 Inch Small Wheels Light Duty Swivel Bolt Hole Red PU Caster Wheels With Brake For Furnitures
Style: :
Light duty bolt hole pu casters
Wheel Size: :
1.5"
Wheel Material: :
Polyurethane/PU
Color Of Wheel: :
Red
Bearing Type: :
Plain bearing
Description

Customize 1.5 Inch Small Wheels Light Duty Swivel Bolt Hole Red PU Caster Wheels With Brake For Furnitures

Description:

Zinc plated bracket 2 inch swivel head red pu light duty caster wheel.

Mounting type bolt hole, other type are also available, depend on you.
Wheel diameter 40mm.
Loaded capacity 20 kg.
Made of PU, PP and steel.

No bearing caster wheel.

Side brake only stop the wheel from running, can't fixed the direction.
Apply to many applications like shelves, food carts.

Product Specifications:

Bolt Hole Type Side Brake PU Casters

Model Number Wheel Diameter/Wideth
MM		 Overall Height
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
KG
I001C050PUDB1 50x20.3 65 8 / 30
I001C065PUDB1 65x25 84 8 40
I001C075PPDB1 75x25 93 10 50

1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake

Plate Swivel Type

Model Number Wheel Diameter/Wideth
MM		 Overall Height
MM		 Plate Size
MM		 Bolt Hole Spacing
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
KG
I001C025PUP 25x13 38 39x33 30x24 4 / 10
I001C030PUP 30x13 40 39x33 30x24 5 15
I001C040PUP 40x16.3 50.5 46x38 36x28 6 20
I001C050PUP 50x20.3 65 58x46 46x35 6 30
I001C065PUP 65x25 84 70x58 53.5x40 8 40
I001C075PUP 75x25 93 70x58 53.5x40 8 50

1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake

Plate Fixed/Rigid Type

Model Number Wheel Diameter/Wideth
MM		 Overall Height
MM		 Plate Size
MM		 Bolt Hole Spacing
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
KG
I001C025PUPF 25x13 38 37x19 29 4 / 10
I001C030PUPF 30x13 40 37x19 29 5 15
I001C040PUPF 40x16.3 50.5 46x25 36x15 6 20
I001C050PUPF 50x20.3 65 58x38.5 45x25 6 30
I001C065PUPF 65x25 84 70x47 55x27 8 40
I001C075PUPF 75x25 93 70x47 55x27 8 50

1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake

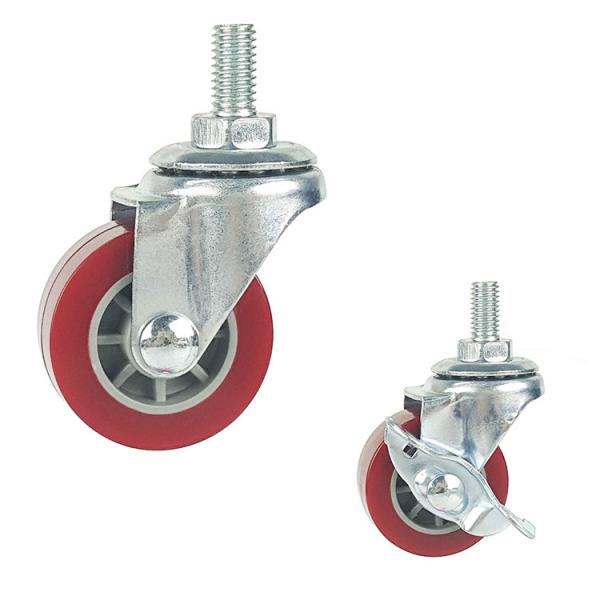

Threaded Stem Type

odel Number Wheel Diameter/Wideth
MM		 Overall Height
MM		 Threaded Stem Size
MM		 Bearing Type Loaded Capacity
KG
I001C040PUT 40x16.3 50.5 8x15 / 20
I001C050PUT 50x20.3 65 8x15 30
I001C065PUT 65x25 84 10x25 40
I001C075PUT 75x25 93 10x25 50

1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake

Bulk Casters Of Bolt Hole Type PU Wheels

Services:

1.5 Inch Swivel Bolt Hole Red PU Caster Wheels With Brake

FAQ:

Q: What is your delivery time?

A: Normally within 20 days. It also depends on the order quantity.

Q: What is the term of payment?

A: Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T or L/C before delivery.

Q: The pu material caster is a bit expensive, do you have an economical style?

A: Yes, the light duty pvc casters is suitable, almost the similar performance.

Q: If i buy a container of this light duty pu casters, can you help me to arrange the shipment?

A: Yes, my friend. We have helped a lot of our customer to do that.
