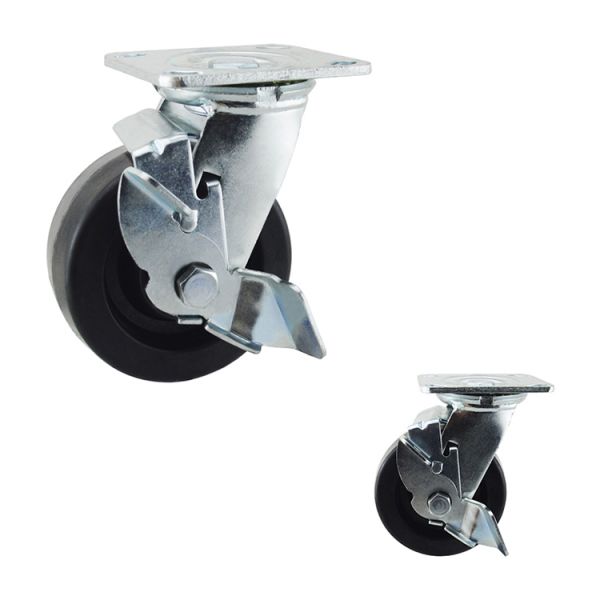

125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels
125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels
125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels
125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels
125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels
125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels
125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels
125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels
125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels
125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels
125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels
125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels
Specifications
Brand Name :
WBD
Model Number :
I020H125PFPB1
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
7-15days
Packaging Details :
Cartons
Product Name :
125mm Diameter Heavy Duty Heat Resistant Wheel 770LBS Capacity Swivel Lock Industrial Casters Wholesale
Style: :
125mm swivel lockheat resistant casters
Wheel Diameter: :
125mm
Wheel Width: :
50mm
Bracket: :
Welded construction
Wheel Type: :
Solid black
Description

125mm Diameter Heavy Duty Heat Resistant Wheel 770LBS Capacity Swivel Lock Casters

Phenolic caster wheels are composed of phenolic resin material that is backed by macerated fabrics with a dense consistency throughout. These wheels endure impact well and are also resistant to grease, oil and most other chemicals. Our phenolic wheels are manufactured here in the USA and come standard with heavy duty, all metal roller bearings. Our swivel phenolic casters feature double ball bearing raceways on rigs and all rigs are operable from -4 to 500ºF.

125mm Caster Wheel Description:

This 5 inch heavy duty swivel plate high temperature caster wheel with side brake is solid, the thickness of the wheel is 50mm, and the single load can reach 770 pounds. Mainly used in high temperature scenes, ovens, drying carts, etc. Because of their excellent cost performance, they are often used in general industrial trolleys and other aspects.

  • Large Double Ball Bearin Raceway and Top Plate
  • Zinc Plated Finish
  • 7/32" Cold Forged Steel Top Plate and Yoke Legs
  • 15/32" Diameter Heat Treaded Kingpin and Nut
  • 25/64" Diameter zerk axle and lock nut
  • Grease Fittings in swivel Raceway

Product Specifications:

125mm swivel lock heat resistant casters

Model Number Wheel Diameter/Width
MM		 Overall Height
MM		 Plate Size
MM		 Bolt Hole Spacing
MM		 Bolt Hole Size
MM		 Bearing Type Loaded Capacity
LBS
I020H125PFPB1 125x50 167 115x100 85x72 20x13 Roller 770

125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels

How To Make A Caster:

125mm Diameter 770LBS Swivel Lock Heat Resistant Caster Wheels

FAQ:

Q: Can i have other color?

A: Yes, black is the normal one, you can have brown one or other color too.

Q: Which port does the cargo ship from?

A: Usually Huangpu or Nansha port of Guangzhou.

Q: What is your delivery time?

A: Usually within 20 days.

Q: What is the term of payment?

A: Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T or L/C before delivery.
