1920*1080 Multi Function Digital Signage Non Contact Temperature Measurement System
1920*1080 Multi Function Digital Signage Non Contact Temperature Measurement System
Specifications
Brand Name :
YODA
Model Number :
YD55FRT01
Certification :
CE,ROHS,FC
Place of Origin :
Guangdong
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS/per month
Delivery Time :
Within 7~15 days after order upon payment receiving
Packaging Details :
Plywood Case / Honeycomb Box / Flight Case
Size :
55inch
Dimension :
1209.6(H)×680.4(V)
Brightness :
500cd/m2
Face Angle :
178/178
Resolution :
1920*1080
Pixel pitch :
0.630 (H)×0.630(V)
Power :
100VAC～240VAC(50/60Hz)
Warranty :
1 Year
Description

A Non-contact Temperature Measurement System Based on AI for Epidemic Fever

Details of product:
1. Face recognition algorithm is used to accurately locate the temperature to the target.
2. Thin body, save space,No radiation, good for health.
3. Support passenger aircraft booking, WeChat official development of visitors self-help booking, user face registration function.
4. Fast response time, fast and smooth use.
5. Support mask face recognition and temperature detection
6. Visible light can capture human face and thermal imaging can monitor body temperature.
7. Modified ≤0.3℃ (emissivity, distance, ambient temperature, etc.)
8. Complete 16 target temperature measurements within 30 milliseconds at a distance of 3-5 meters.
Product model YD55FRT01

Camera

 Resolution 2MP pixel
Type Binocular wide dynamic camera
Aperture F1.8
Focus Distance 50-150cm
White Balance Automatic
Fill Light LED and infrared double fill lights
Screen Size 10.1inch IPS LCD display
Resolution 1920*1080

Processor

 CPU RK3288 quad-core
Local Store EMMC 8G
Network Module Support Ethernet, wireless (WIFI)
Audio Support for 2.5W /4R speakers

Interface

 USB Interfaces One USB2.0 interface
Wired Network Interface 1 RJ45 Ethernet seat
Interface Reserved Pick the lock switch
Interface Reserved IC card reader/ID card reader/QR code
Identify High 1.2-2.2 meters

Function

 Face Library Support Max. 20000
1:N Face Recognition Support
1:1 Face Ratio Support
Stranger Detection Support
Identification Distance Configuration Support
Device Interface

Interfaces include device management,

people/photo management, record query, etc
Deployment Way Support public cloud deployment, LAN use
Body Temperature Detection Support

Infrared thermal imaging module camera

 Temperature Detection Distance 1M (best distance 0.5M)
Temperature Measurement Accuracy ≤±0.3℃ (10℃-26℃)
Temperature Measurement Range 32 ℃ ~ 45 ℃
Face Angle 30 degrees left or right, 30 degrees up or down
Normal Temperature Direct Release Support
Excessive Temperature Alarm Support (temperature alarm value can be set)

Conventional parameters

 Protection Grade

IP65, certain outdoor dustproof and waterproof

function
Power Supply DC12V (+ / - 10%)
Working Temperature - 10 ℃ to 50 ℃
Working Humidity, -10 ~ 90% relative humidity, no condensation
Power Consumption 40W (Max)
Installation Secure with screws through supporting columns
Equipment Size 1209.6(H)×680.4(V)

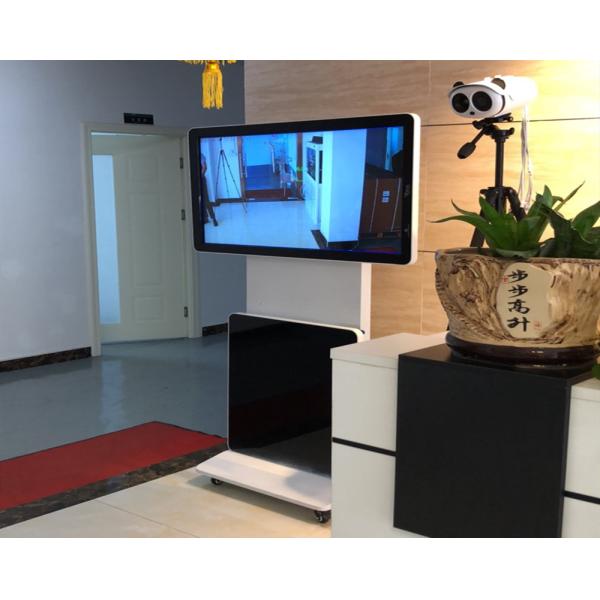

Real-picture

1920*1080 Multi Function Digital Signage Non Contact Temperature Measurement System

Product's details

1920*1080 Multi Function Digital Signage Non Contact Temperature Measurement System

Application

1920*1080 Multi Function Digital Signage Non Contact Temperature Measurement System

FAQ


Q:Are you a factory or a trading company?
A:We are a OEM/ODM factory.

Q:What is the minimum order quantity?

A:The MOQ is 1. Welcome to order samples. Quality is our confidence.

Q:What kind of design and development capabilities do you have?

A:Artwork/ Instruction manual/ product design according to customer's requirement.

Q:What are your exporting countries?

A:More than 30 countries including Dubai,American,Germany,Poland,South Korea,Thailand,Vietnam,etc.

Q:What's your guarantee for the products?
A:All our products have one-year guarantee from the shipping date.

And it is ok to upgrade to two or three years guarantee with additional cost.

Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T,L/C,Western Union,Paypal.

Q:What's the shipment terms and delivery time of your company?
A:The goods can be shipped by courier,by air or by sea. Depend on quantity and customer's requirement.
