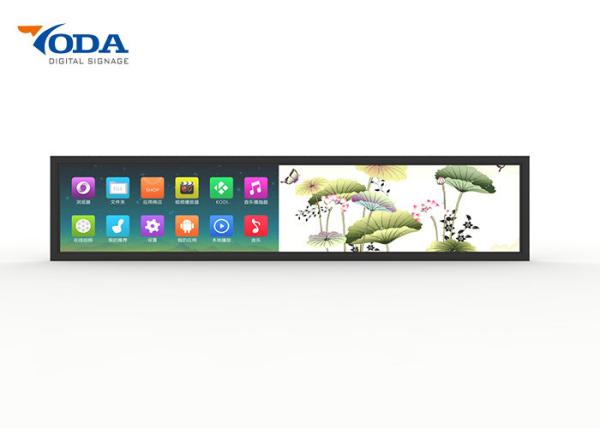

Digital Bar LCD Monitor Stretched Ultra Wide Aluminium Shell
Digital Bar LCD Monitor Stretched Ultra Wide Aluminium Shell
Specifications
Brand Name :
YODA
Model Number :
Y370SLD-A01
Certification :
CE,ROHS,FC
Place of Origin :
Guangdong
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS/per month
Delivery Time :
Within 7~15 days after order upon payment receiving
Description

Digital Stretched Bar LCD Display Ultra Wide Aluminium Shell Display

Details of product :
1. Support USB playback, support hot plug, content update convenient and fast.
2. Special bar display resolution satisfies special display applications.
3. OSD multi-language: support Chinese, English and other multi-language.
4. Display large amount of information,Easy to color.
5. High performance, low power consumption, small size, good portability.
6.Many specifications and models, size series, variety, convenient and flexible use, maintenance, update, upgrade easy, long service life. 7.LCD panel resolution is 1920 *190.
8.Aluminum profile frame, a cold-rolled plate.

LCD Panel

 Panel Size 37inch
Active Area
919.3(H) × 138.85 (V) mm
Dimension 998*284.8*78mm
LCD Type a-Si TFT active matrix
Color Deepth 8 bit, 16.7M
Resolution 1,920x190
Pixel Pitch 121.5(H) x 364.5(W)um
Pixel Arrangement RGB vertical stripe
Display Mode ADS
Viewing Angle 178(H)/178(V)
Power ≤50W
Brightness 700cd/m 2

Motherboard

 CPU Rockchip RK3288,Quad core Cortex A7 1.8 GHz
RAM DDR3 2G
Storage EMMC 8GB/16G/32G Optional(Standard 8GB)
LCD Interface LVDS
Voltage 3.3V/5V/12V optional

Network

 RJ45
wifi,Wi-Fi 802.11b/g/n
Blueteeth 4.0

3G/4G(optional),WCDMA,EVDO,CDMA,

GSM850/900/1800/1900MHz/2100MHz

Interface

 1*HDMI 1.4 output 1080P
2*USB
TF up to 64GB
10W*2 8Ω Speaker
Power Supply DC12V

Software

 Operating System Google Android 5.1 System
Language Multi-Language Supported

Video

Support Video playback up to 1080P @60fps Support Multi-Format video playback,including Mpeg1, Mpeg2,Mpeg4 SP/ASP GMC,H.263 including sorenson spark ,H.264 BP/MP/HP,VP8,WMV9/VC1,JPEG/MJPEG,etc HEVC/H.265 1080P @30fps
Audio MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
Image JPG,BMP,PNG,GIF

system management

 File Management
Android System,open root access
Time switch
OTA remote upgrade(customized)

Real-picture

Digital Bar LCD Monitor Stretched Ultra Wide Aluminium Shell

Product's details

Digital Bar LCD Monitor Stretched Ultra Wide Aluminium Shell

Application

Digital Bar LCD Monitor Stretched Ultra Wide Aluminium Shell

FAQ

Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.

Q:How does your manufacturer do regarding quanlity control?
A:Quanlity is priority. Our manufacturer has gained CE , RoHS, FCC authentication etc.

Q:What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T,L/C,Western Union,Paypal.

Q:What is your MOQ?
A:Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q:How long is the warranty period of the product?

A:The regular warranty period is 1 year. If you need a longer warranty, please contact our sales engineer.

Q:How long is your delivery time?

A:The production time of conventional machines is7-15working days.

Q: What's the shipment terms and delivery time of your company?
A: The goods can be shipped by courier,by air or by sea. Depend on quantity and customer's requirement.
