ROSH Yellow Spring FTTH FC/LC/SC/ST Fiber Optic Patch Cord Fiber Optic Jumper Cable
ROSH Yellow Spring FTTH FC/LC/SC/ST Fiber Optic Patch Cord Fiber Optic Jumper Cable
ROSH Yellow Spring FTTH FC/LC/SC/ST Fiber Optic Patch Cord Fiber Optic Jumper Cable
ROSH Yellow Spring FTTH FC/LC/SC/ST Fiber Optic Patch Cord Fiber Optic Jumper Cable
ROSH Yellow Spring FTTH FC/LC/SC/ST Fiber Optic Patch Cord Fiber Optic Jumper Cable
ROSH Yellow Spring FTTH FC/LC/SC/ST Fiber Optic Patch Cord Fiber Optic Jumper Cable
Specifications
Brand Name :
Yogel
Model Number :
Spring Fiber Optic Patch Cord.
Certification :
ROSH,ISO9001
Place of Origin :
Shanghai,China
MOQ :
1 Pieces
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 pieces per week
Delivery Time :
3-5 work days
Packaging Details :
with standard carton box or csn be OEM.
Application :
FTTH FTTB FTTX Network
Product name :
Fiber Optic Patch Cord
Color :
Yellow
Quality control :
100% test before shipping
Description

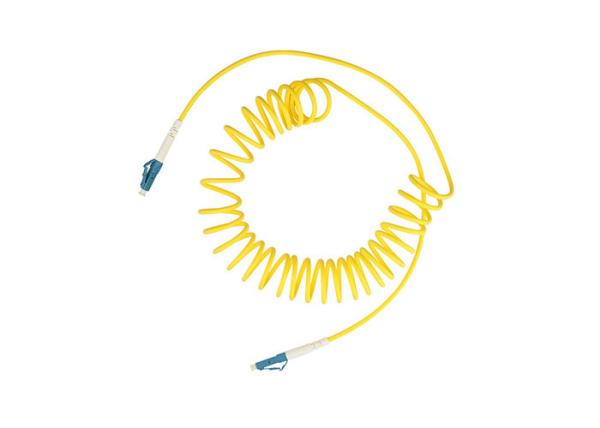

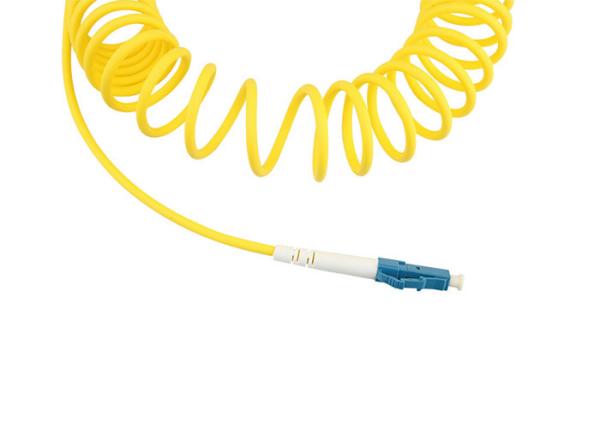

FTTH SC ST FC Yellow Color Spring Jumper Fiber Optic Patch Cord

The jumper is a fiber optic cable used to connect an optical device to another device for signal routing.Each end of the cable is connected to a connector so that the cable can be plugged in.The tail fiber is a fiber optic cable consisting of only one connector.The types of connectors can vary widely, such as FC, SC, ST, and so on.The length of spring jumper is flexible and easy to use.

ROSH Yellow Spring FTTH FC/LC/SC/ST Fiber Optic Patch Cord Fiber Optic Jumper Cable

Specification:

Item Parameter
Single Mode Multimode
PC UPC APC PC
Test Wavelength 1310/1550nm
Insertion Loss Typ. ≤0.15 dB, Max. ≤0.30 dB
Return Loss ≥45 dB ≥50 dB ≥60 dB ≥35dB
Repeatability ≤0.10 dB
Changeability ≤0.20 dB
Durability (1000 Mating) ≤0.20 dB
Operation temperature -40 ~ +80℃
Storage temperature -40 ~ +85℃
Connector end SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cable jacket PVC, OFNR, LSZH, OFNP
Cable diameter 3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm
Fiber count Simplex
Fiber type

Single Mode: G. 652D, G. 655, G. 657A2, etc.

Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)
Cable length 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc.
Fiber brand Corning, Sumitomo, Fujikura, YOFC, TFO
Fire resistant IEC 60794-2-30
Standards Compliant ROHS, IEC, GR-326
