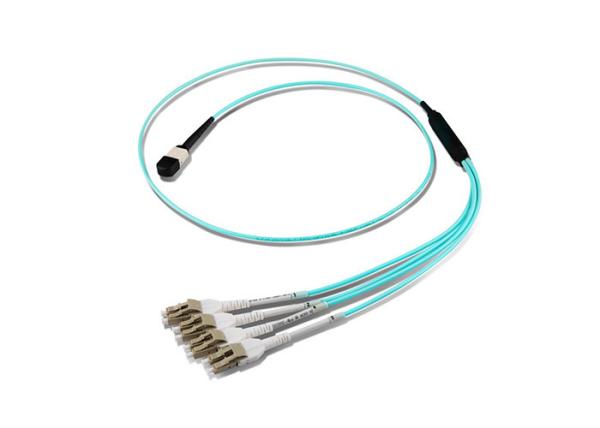

Data Center 8 Core 2.0MM MPO MTP Harness Cable OM3
Data Center 8 Core 2.0MM MPO MTP Harness Cable OM3
Specifications
Brand Name :
Yogel
Model Number :
MPO/MTP 8Core 2.0MM
Certification :
ROHS
Place of Origin :
China
MOQ :
1Piece
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs /Month
Delivery Time :
3-7 work days after despoit
Packaging Details :
1 piece/plastic bag, 100pcs/inner box, Carton
Name :
MPO/MTP Harness Cable
Connector type :
MPO/MTP
Length :
Customized
Material :
PVC/LSZH
Color :
aqua or Cusomized
Quality control :
100% test before shipping
Real factory :
Yes
Packing :
Plastic bag +Carton
Description

8 Core 2.0MM MPO MTP Fan Out Patch Cord OM3 Multimode Breakout Cable For Data Center

Description:

MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

MPO/MTP is the high density of optical fiber pre-connect system which is generally use in three areas.

· The data center application with high density environment
· The optical fiber to the building
· The internal connector application in fiber equipment such as Splitter,

40G / 100G SFP and SFP .

Features:

1.100% pre-terminated and tested in factory to ensure transfer performance.
2.Rapid configuration and networking, reduce installation time.
3.Supports 40G and 100G network applications.
4.Cable Jacket material: LSZH, OFNR, OFNP available.
5.Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Applications:

1.Data communication network.
2.Optical System Access network.
3.Storage area networking fiber channel.
4.High density architectures.
Dimensional Diagrams:
MPO/MTP Harnesses Cables
Data Center 8 Core 2.0MM MPO MTP Harness Cable OM3
Cable Structure
Data Center 8 Core 2.0MM MPO MTP Harness Cable OM3

PRODUCT PARAMETERS

Performance Level Standard Elite
Connector Mode Endface IL(max) (dB) RL(min) (dB) IL(max) (dB) RL(min) (dB)
MPO/MTP SM 12F/APC ≤0.70 ≥60 ≤0.35 ≥60
MPO/MTP SM 24F/APC ≤0.75 ≥60 ≤0.35 ≥60
MPO/MTP SM 48F/APC ≤0.75 ≥60
MPO/MTP MM 12F/PC ≤0.50 ≥20 ≤0.35 ≥20
MPO/MTP MM 24F/PC ≤0.50 ≥20 ≤0.35 ≥20
MPO/MTP MM 48F/PC ≤0.50 ≥20

Connector type

Type Reference Note
MPO IEC 61754-7 Single mode

APC: Green connectors (Standard )

APC: Yellow connectors (Elite)
Multimode PC: Aqua Connectors
MTP IEC 61754-7 Single mode

APC: Green connectors (Standard )

APC: Yellow connectors (Elite)
Multimode PC: Aqua Connectors
FAQ :
1.Do you provide free samples?

yes, we can supply some free samples , the buyer should pay the shipping cost.

2.Can you supply OEM products under our brand?

yes ,we are manufacturer ,but we can accept OEM service with OEM package ,you just need to send us your detailed requirements.

3, How to proceed an order?
A: First let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.
Thirdly customers confirm the samples and places deposit for formal order.

Fourthly we arrange the production.
