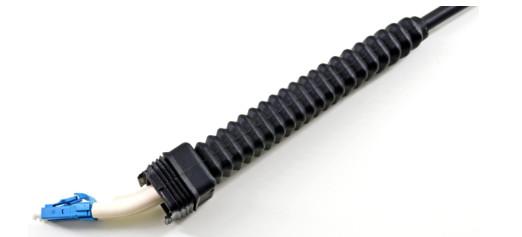

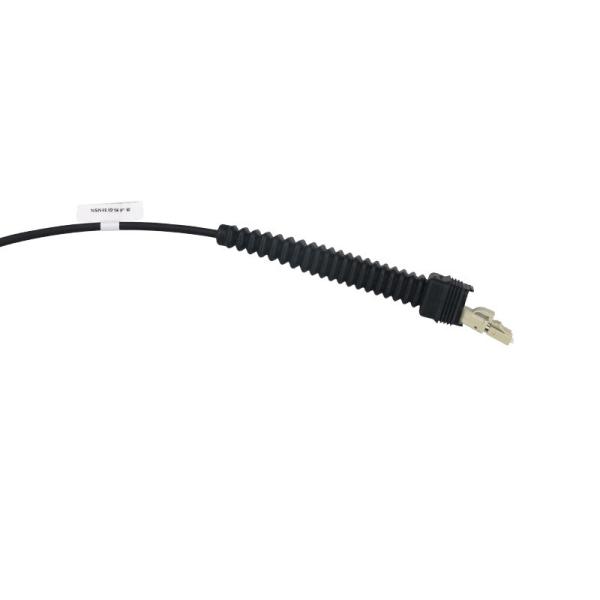

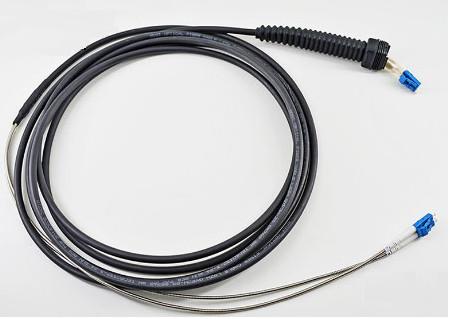

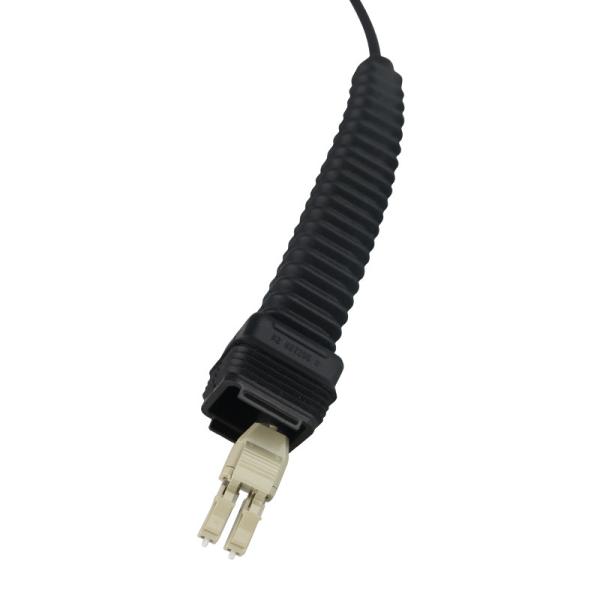

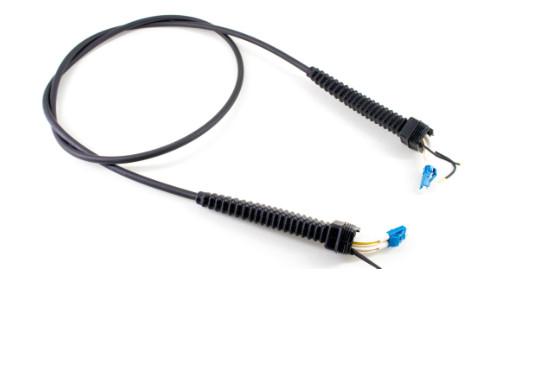

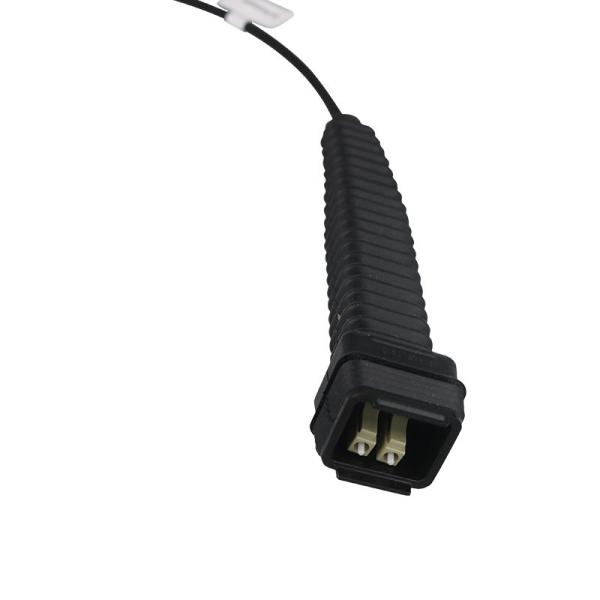

RRU CPRI Fiber Optic Cable Assembly
RRU CPRI Fiber Optic Cable Assembly
RRU CPRI Fiber Optic Cable Assembly
RRU CPRI Fiber Optic Cable Assembly
RRU CPRI Fiber Optic Cable Assembly
RRU CPRI Fiber Optic Cable Assembly
RRU CPRI Fiber Optic Cable Assembly
RRU CPRI Fiber Optic Cable Assembly
RRU CPRI Fiber Optic Cable Assembly
RRU CPRI Fiber Optic Cable Assembly
RRU CPRI Fiber Optic Cable Assembly
RRU CPRI Fiber Optic Cable Assembly
Specifications
Brand Name :
Yogel
Model Number :
Nokia Simons
Certification :
ISO9001, ROSH
Place of Origin :
Shanghai
MOQ :
1 pieces
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 pieces per week
Delivery Time :
3-5 work days
Packaging Details :
with standard carton box or can be OEM by customer
Description

NSN Boot compatible Fiber Optic Connector, CPRI LC LC Armored Cable, RRU CPRI Cable

Description

This outdoor optical cable assembly can be used for connecting the Main Unit (MU) to the Radio Remote Unit (RRU). This optical cable can also be used as a jumper cable on both MU- and RRU-side when MU and RRU are connected to each other.

Features

1. High strength fatigue resistant fiber is adopted to ensure the reliability and life of the extended cable in various harsh service conditions.

2. Special coating layer and secondary coating compound structure, can absorb mechanical and environmental stress, the additional loss of the cable is small.

3. The fiber SZ stranded and arylon reinforced fiber single spiral stranded ensure that the far cable has a large tensile strain window.

4. High strength, light weight and high strength-to-weight ratio;The circular sheath is compact, especially suitable for repeated retracting and retracting.

  • Low insertion loss & High return loss
  • Connectors compliant with Telcordia GR-326, IEC 61754-20
  • The cable fulfill 1301-TOL 405 9009
  • Mechanical and environmental tests in accordance with IEC 60794 -1-2
  • RoHS compliant


Applications
Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications


Specification

ItemData
Insertion Loss≤0.3dB
Mechanical life500cycles
Working temperature-40°C~+70°C
Storage temperature-40°C~+70°C
Operating temperature-10°C~+50°C
Protection LevelIP67
Tensile DataTensile between junction and fiber cable≥180N
Out shell inflaming retardingUL94 V-0
Out shell UvioresistantUL 746C
AuthenticationMeet with RoHS
