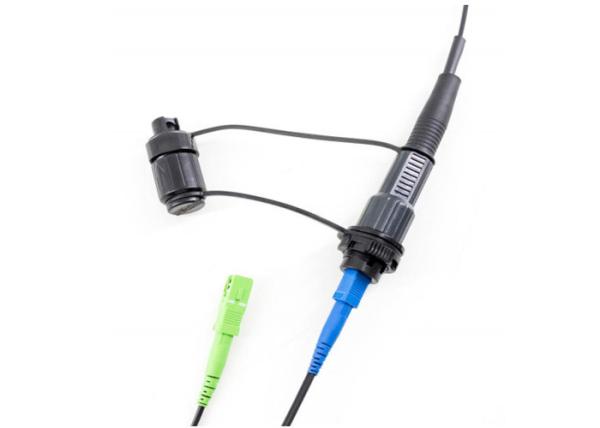

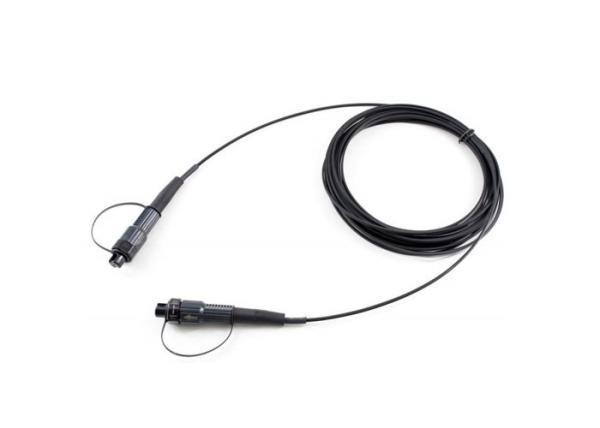

3.0mm HUAWEI Mini-SC Fiber Optic Cable Assembly Connector
3.0mm HUAWEI Mini-SC Fiber Optic Cable Assembly Connector
3.0mm HUAWEI Mini-SC Fiber Optic Cable Assembly Connector
3.0mm HUAWEI Mini-SC Fiber Optic Cable Assembly Connector
Specifications
Brand Name :
Yogel
Model Number :
Yogel Mini-sc
Certification :
ISO9000 ,ROHS,CE
Place of Origin :
Shanghai China
MOQ :
1
Price :
Negotiate
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
1000 pcs/ month
Delivery Time :
3-5 days after despoit
Packaging Details :
1 piece/inner bag, 100pcs/pack
Product name :
FTTA Long haul Outdoor Fiber Optic Waterproof Connectors patch cord can be compatible with HUAWEI Mini-SC ip67
waterproof level :
IP67
Use for :
3.0-5.0mm round optical cable, FTTH drop cable
Application :
Outdoor, FTTH Fiber Network, Telecommunication, Data Center/FTTX/LAN and WAN/CATV Network/Telecommunications Network, RF Device
Model name :
H Connector
Gender :
male
cable material :
PVC/LSZH
Polishing :
UPC/APC/PC
Description

FTTA Long haul Outdoor Fiber Optic Waterproof Connectors patch cord can be compatible with HUAWEI Mini-SC ip67


Yogel Mini-SC waterproof connector has SC houseless core, spiral bayonet and multilayer rubber cushions. It’s suitable for Φ3.0-5.0mm
round cables and FTTH drop cables. Compare with Huawei Mini-SC connector, Corning’s biggest dierence is the way of connection,
one is spiral bayonet connection, and the other one is thread connection. Corning has authorized Amphenol as Mini-SC’s foundry,
the Mini-SC could only be used to connect the connector and equipment which were named as H-Connector, later Amphenol made a new design—it can connect two connectors, and it’s named as H-Connector(In-Line).

Features:

IP-68 water and dust protection

Factory terminated for high performance

-40℃~85℃ operating temperature

445N (100 lbs) cable retention

Accepts 3.0mm to 5.0mm cable diameters

Low profile in-line receptacle available

No installation tools requires

100 minimum mating cycles

Cable Specification:

Item

 Data

fiber

 Single mode G.657A2

Fiber diameter

 7.0mm

Material & color for jacket

 LSZH black
Tension member Aramid fiber
Max. attenuation

≤ 0.4dB/km at 1310nm

≤0.3dB/km at 1550nm
Tensile resistance(short term) 500N(no breakage)
Crush resistance(short term/long term) 1000N/100mm
inflaming retarding IEC 60332-3
Temperature -40~+70°C
Uvioresistant PASS
Authentication Meet with RoHS &UL

Application:

Provides superior weather resistance for FTTA and other outdoor applications.

Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies

Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments

Can be installs without special tooling Threaded style coupling Provides bend protection for installation and long term use.

3.0mm HUAWEI Mini-SC Fiber Optic Cable Assembly Connector
