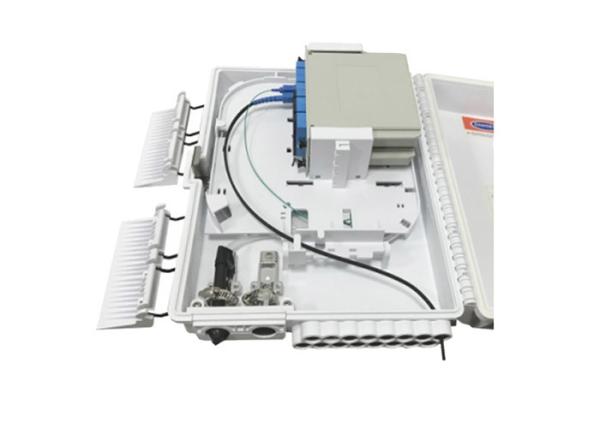

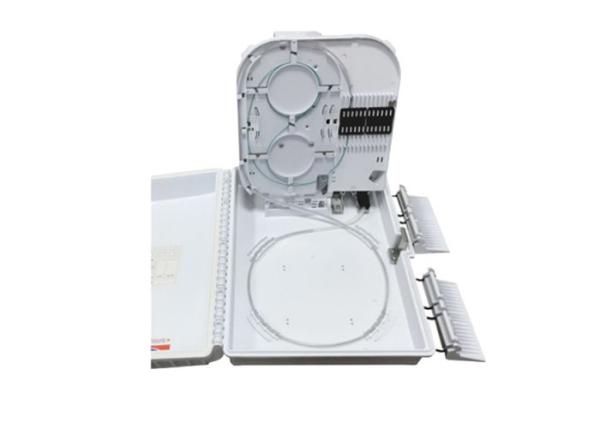

1x16 LGX 218mm Fiber Optic Termination Box outdoor wall mounted FTTH NAP Box
1x16 LGX 218mm Fiber Optic Termination Box outdoor wall mounted FTTH NAP Box
1x16 LGX 218mm Fiber Optic Termination Box outdoor wall mounted FTTH NAP Box
1x16 LGX 218mm Fiber Optic Termination Box outdoor wall mounted FTTH NAP Box
1x16 LGX 218mm Fiber Optic Termination Box outdoor wall mounted FTTH NAP Box
1x16 LGX 218mm Fiber Optic Termination Box outdoor wall mounted FTTH NAP Box
Specifications
Brand Name :
Yogel or OEM
Model Number :
FDB-LGX-16B
Certification :
ISO9000 ,ROHS,CE
Place of Origin :
Shanghai China
MOQ :
10
Price :
Negotiate
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
5000 pcs/ month
Delivery Time :
3-5 days after despoit
Packaging Details :
20 piece/carton box
Product name :
1*16 LGX 218mm Fiber Optic Termination Box outdoor wall mounted FTTH NAP Box
Dimension(LxWxH) :
292mm(H)*218mm(W)*83mm(D)
Installation :
Wall/Pole mounting(Outdoor & Indoor)
Cable Entries :
Supporting Uncut Mid-span
Configuration :
2pcs 1x8 LGX or 1pcs 1x16 LGX
Packing Information :
GW.: 16.80KG Qty.: 10pcs MEAS.: 590x330x510mm
Description

1x16 LGX 218mm Fiber Optic Termination Box outdoor wall mounted FTTH NAP Box

Description

Fiber Optic Termination Box great for jointing fiber cable and pigtails, It protects fiber optic splices and enables distribution.

The termination box is wall-mounting and is mainly used in telecommunication and network equipment rooms.

Suitable for 1*16 LGX splitter

Features

1). High quality PC, ABS, PC Alloys material optional, can ensure harsh conditions such as vibration, impact,

tensile cable distortion and strong temperature changes.
2). Solid structure, perfect outline, thunder, erosion and adding resistance.
3). Strong and reasonable structure with mechanical sealing structure, can be opened after sealing and cab be reused.
4). Well water and dust proof, unique grounding device to ensure the sealing performance, convenient for installation.
5). The splice closure has a wide application range, with good sealing performance, easy installation, produced with

high strength engineering plastic housing, with anti-aging, corrosion resistance, high temperature and high mechanical

strength and so on.

Configuartion

1x16 LGX 218mm Fiber Optic Termination Box outdoor wall mounted FTTH NAP Box


Datasheet

Product Name
FTTH Distribution Box
Material
PC +ABS
Color
White or Black or custom
Size
292mm(H)*218mm(W)*83mm(D)
Weight
1.4 KG
Material characteristic
1.wet-proof, water-proof, dust-proof, protection level up to IP65
2.Construction-lightweight plastic offers strength
3.Resistance to chemical and U.V attack
4.Wall mounting or pole mounting.

Product tags

outdoor fiber termination box

,

odf fiber optic terminal boxes

,

ftth fiber distribution box
