Wavelength Division Multiplexers
Video Filter WDMs for TV Signal Transmission

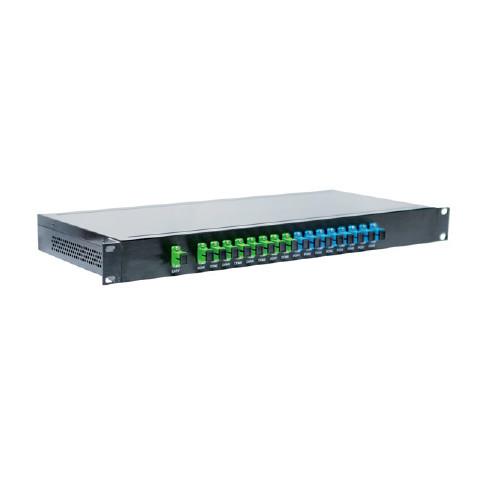

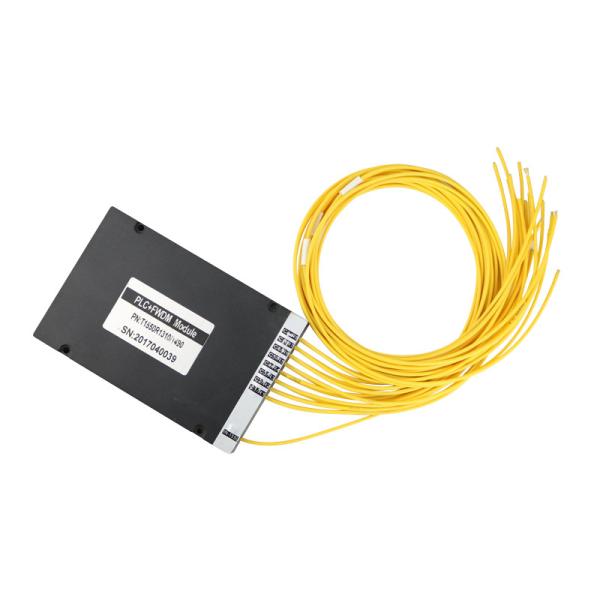

Multi-Port FWDM (PLC Splitter + FWDMs)
(1310/1490/1550nm)

Description

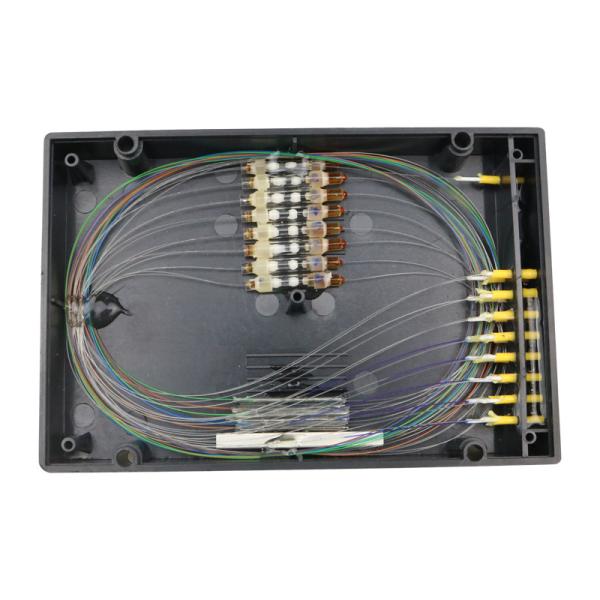

1310/1490/1550nm CATV+PON WDM combines PLC Splitter and FWDMs in order to realize multi-port output within a compact package box or housing.

Micro-Optical WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low-temperature sensitivity, and epoxy free optical path.

With high reliability in a wide temperature range, it is suitable for a wide range of applications including Passive Optical Network (PON), Fiber to the Home (FTTH), CATV, and ITV systems.

Features

* Video and IP Signal Mux/Demux
* Wide Operating Wavelength Range
* Low Insertion loss
* Ultra-Flat Wide Passband
* High Channel Isolation
* High stability and reliability
* Epoxy-free on Optical Path
* RoHS Compliant

Applications

* Testing Instruments
* Telecommunications
* FTTH Tri-Play System (Single-fiber 3-wavelength system)

Specifications

* The above specification is without connectors

**Other specifications can be made on customer request.

Order Information

Number of Channels (Configuration),

Wavelength, Package Type,

Common Port: Connector, Cable Diameter, Cable length,

IP Signal Ports: Connector, Cable Diameter, Cable length,

Video Ports: Connector, Cable Diameter, Cable length.

Example:

8 Channels,

Pass-1550nm/Reflect-1310/1490nm (T5/R34), ABS Box type,

Common Port: SC/APC, 2.0mm, 1 Meter,

IP Signal Ports (1310/1490nm): SC/APC, 2.0mm, 1 Meter,

Video Ports (1550nm): SC/APC, 2.0mm, 1 Meter.

Multi-Port Filter WDM

*Note: Customized Color-coded Combination is Available.
