SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord
SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord
SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord
SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord
SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord
SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord
SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord
SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord
SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord
SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord
Specifications
Brand Name :
Yogel
Model Number :
ASC-ASC-LTD-002-DA2-0050
Certification :
ISO9000 ,RoHS,CE
Place of Origin :
Shanghai
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200000pcs/Month
Delivery Time :
5-8 work days
Packaging Details :
Anti-static bag, Cartoon
Test wavelength :
1310/1550nm
Insertion loss :
Typ. ≤0.15 dB, Max. ≤0.30 dB
Return Loss :
≥60 dB
Repeatability :
≤0.10 dB
Changeability :
≤0.20 dB
Durability (1000 Mating) :
≤0.20 dB
Operation temperature :
-40 ~ +80℃
Storage temperature :
-40 ~ +85℃
Connector End :
SC/APC
Cable jacket :
LSZH
Cable diameter :
2.0mm
Fiber count :
Duplex
Fiber type :
Single Mode, G.657 A2
Cable length :
0.5m
Description

SC Series Cable Assemblies – Patch Cords/Jumpers

Hybrid Always Available

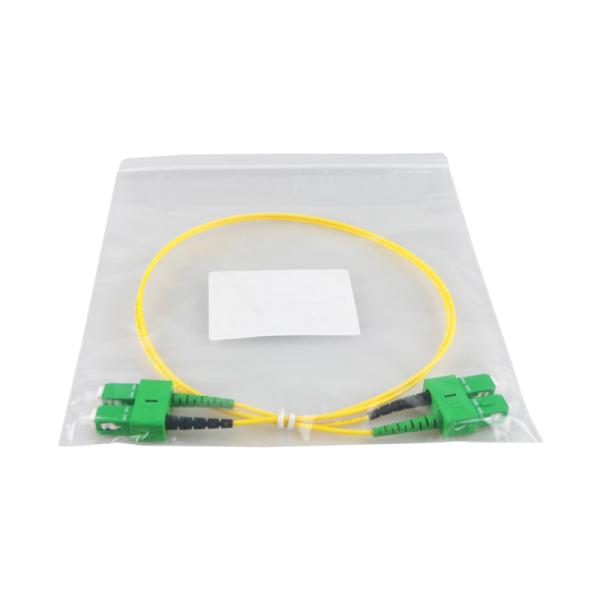

SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord

SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord

SC Connector Boots

SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord

SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord

SC Dust Caps/Ceramic Ferrules

SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord

Description

Cable assemblies are offered in a variety of combinations. Connectors include SC, FC, ST, LC, E2000, MU, MPO/MTP, SMA, MTRJ, D4, and DIN. 4.1mm, 3.0 mm, 2.8mm, 2.0 mm, 1.8mm, 1.6 mm, 1.2mm, and 900μm cables in PVC, OFNR, LSZH, OFNP jackets, and G.652D, G.655, G.657A1, G. 657A2 and G.657B3 @ single mode, OM1, OM2, OM3, OM4, and OM5 @ multimode fiber types are available.

We have the patch cords you need to be stocked and on the shelves. Choose from our large inventory of single-mode and multimode patch cords. The Stocked Patch cords are available in the most popular connector combinations. Assembled using reliable and durable ceramic ferrules, you can choose between PC, UPC, and APC polish finishes. Most cable assembly styles are available as either simplex, duplex, or multi-fiber. Multimode cords are available in either 50/125 or 62.5/125 versions.

4.1mm, 3.0 mm, 2.8mm, 2.0 mm, 1.8mm, 1.6 mm, and 1.2mm cords include an outer jacket with 900μm buffer surrounded by Aramid Yarn.

Features

* Low insertion loss & High return loss

* Connectors compliant with Telcordia GR-326

* Cable compliant with Telcordia GR-409

* Mechanical performance compliant with IEC 61754-4

* RoHS & REACH compliant - Riser, Plenum, and LSZH rated cables available

Applications

* Building interconnections (campus LAN)

* Connector end in optical distribution boxes and termination boxes

* Trunk lines direct to telecommunications closet

* Cross-connect in the outdoor closet

* Distribution connect in central office ODF / MDF

* Fiber patch panels within communications closets

* Links between Internet electronic equipment (SFP module, Switch, OLT, ONU, etc.), Cable TV optical equipment (Transmitter, EDFA, Node, etc.), and fiber patch panels

Specifications

Item Parameter
Single Mode Multi-Mode
PC UPC APC PC
Test wavelength 1310/1550nm 850/1300nm
Insertion loss Typ. ≤0.15 dB, Max. ≤0.30 dB
Return Loss ≥45 dB ≥50 dB ≥60 dB ≥35dB
Repeatability ≤0.10 dB
Changeability ≤0.20 dB
Durability (1000 Mating) ≤0.20 dB
Operation temperature -40 ~ +80℃
Storage temperature -40 ~ +85℃
Connector End SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cable jacket PVC, OFNR, LSZH, OFNP
Cable diameter 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Fiber count Simplex, Duplex, Multi-fiber
Fiber type Single Mode: G. 652D, G. 655, G. 657A1, G.657A2, G.657B3 (9/125μm)
Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)
Cable length 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc. (Customized)
Fiber brand Corning, Sumitomo, Fujikura, YOFC, TFO
Fire resistant IEC 60794-2-30
Standards Compliant ROHS, IEC, GR-326

Connector End Types - (SC Series)

Type Reference Item Descriptions (Default, Options are available)
SC IEC 61754-4 Single mode simplex APC: Green connectors, Green boots
UPC: Blue connectors, Blue boots
Single mode duplex APC: Green connectors, Green boots
UPC: Blue connectors, Blue boots
Multimode simplex UPC: Grey Connectors, Grey boots
Multimode duplex UPC: Grey Connectors, Grey boots

Dimensional Diagrams - (SC Series)

SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord

Cable Components

SC/APC-SC/APC, with Duplex Clips, LSZH, 2.0mm, Duplex, G.657A2, 0.5 meters Indoor patch cord

Cable length of tolerance

Cable Length of Jumper tolerance requirement
Overall length (L) (m) length of tolerance(cm)
0＜L≤20 +10/-0
20＜L≤40 +15/-0
L＞40 +0.5%xL/-0

Optical Characteristics

Item Parameter Reference
Single-mode Multimode
Insertion loss Typ.≤0.15 dB, Max.≤0.30 dB Typ.≤0.15 dB, Max.≤0.30 dB IEC 61300-3-34
Return loss ≥ 60dB (APC); ≥30dB (UPC) IEC 61300-3-6
≥ 50dB (UPC)

End-Face Geometry (3D Interferometer)

Item UPC (Ref: IEC 61755-3-1) APC (Ref: IEC 61755-3-2)
Radius of curvature (mm) 10 to 25 5 to 12
Fiber height (nm) -100 to 100 -100 to 100
Apex offset (μm) 0 to 50 0 to 50
APC angle (°) / 8° ±0.2°
Key error (°) / 0.2° Max.

End-Face Quality

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 (SM) None None IEC 61300-3-35:2015
0 to 65 (MM) None None
B: Cladding 25 to 115 (SM) None None
65 to 115 (MM) None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

Mechanical Characteristics

Test Conditions Reference
Endurance 500 mating IEC 61300-2-2
Vibration Frequency: 10 to 55Hz, Amplitude: 0.75mm IEC 61300-2-1
Cable retention 100N (patch cable); 5N (pigtail) IEC 61300-2-4
Strength of coupling mechanism 80N for 2 to 3mm cable IEC 61300-2-6
Cable torsion 15N for 2 to 3mm cable IEC 61300-2-5
Fall 10 drops, 1m drop height IEC 61300-2-12
Static lateral load 1N for 1h (patch cable); 0.2N for 5min (pigtail) IEC 61300-2-42
Cold -25°C, 96h duration IEC 61300-2-17
Dry heat +70°C, 96h duration IEC 61300-2-18
Change of temperature -25°C to +70°C, 12 cycles IEC 61300-2-22
Humidity +40°C at 93%, 96h duration IEC 61300-2-19

Order Information

Connector End A - Connector End B,

Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length

Example:

SC/UPC-SC/APC, with Duplex Clips,

LSZH, 2.0mm, Duplex, G.657A2, 5 meters

Indoor patch cord
