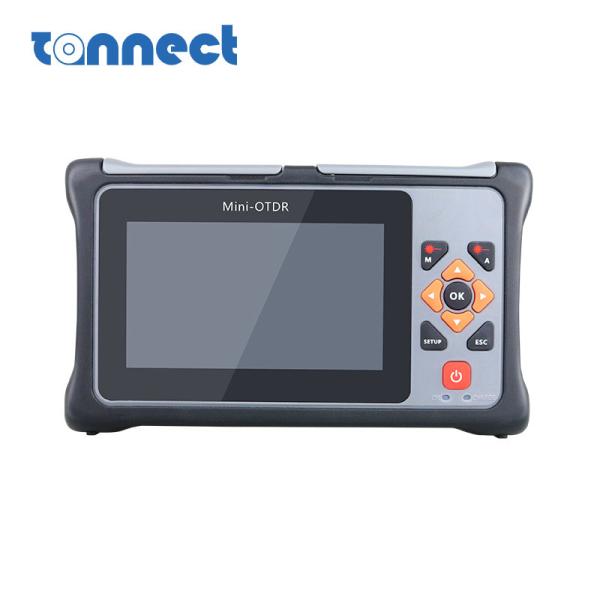

Nine-in-one function 1310/1550nm SMF Mini OTDR Fiber Tester
Nine-in-one function 1310/1550nm SMF Mini OTDR Fiber Tester
Nine-in-one function 1310/1550nm SMF Mini OTDR Fiber Tester
Nine-in-one function 1310/1550nm SMF Mini OTDR Fiber Tester
Specifications
Brand Name :
Yogel
Model Number :
MTR88
Certification :
ISO9001
Place of Origin :
Shanghai
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 pcs/ month
Delivery Time :
3-7days
Packaging Details :
Sdandard box +carton
Product name :
Nine-in-one function 1310/1550nm SMF Mini OTDR Fiber Tester
Type of optical fiber :
Single Mode
Wavelength :
1310nm/1550nm
Maximum dynamic range (dB) 1 :
24/22db
Display type :
4.3-inch TFT-LCD (Standard distribution capacity touch screen)
Optical interface :
FC/UPC (Interchangeable SC, ST)
Fuction :
OTDR, OPM, VFL, OLS, Network Cable Test, Fiber Inspection, Event Map, Loss Test, Flashlight
Language :
7.English, Spanish, Portuguese, Russian, French, Korean, Italian, Vietnamese, Chinese
Description

Nine-in-one function 1310/1550nm SMF Mini OTDR Fiber Tester

Selection

Model

wavelength

(nm)

Dynamic range

(dB)

Measuring range

(km)

 note
Dual wavelength sequence
MTR88R-22 1310/1550 22/20 70
MTR88R-24 1310/1550 24/22 80
MTR88L-26 1310/1550 26/24 90
Single wavelength sequence
MTR88R-20s 1550 20 70
MTR88R-22s 1550 22 80


1. Function Version:

L: (9 in 1), OTDR, OPM, OLS, VFL, Network Cable Test, Fiber Inspection, Event Map, Loss Test, Flashlight.

R: (6 in 1), OTDR, OPM, OLS, VFL, Network Cable Test, Flashlight.

2.Wavelength: 1310/1550nm, 1550nm

3.Dynamic Range: 22/20dB, 24/22dB and 26/24dB @ 1310/1550nm,

20dB and 22dB @ 1550nm.


Features

  • Nine-in-one function (OTDR, OPM, VFL, OLS, Network Cable Test, Fiber Inspection, Event Map, Loss Test, Flashlight)
  • The 4.3-inch full-view capacitive touch screen supports multi-touch
  • Cover plate type tempered glass panel, don't worry about screen scratch
  • Support horizontal version, vertical version, perfect fusion of the two habits of user operations
  • Support charging treasure charging, do not worry about the battery is not enough
  • In line with the international standards of test data with perfect simulation software, so that your report more simple

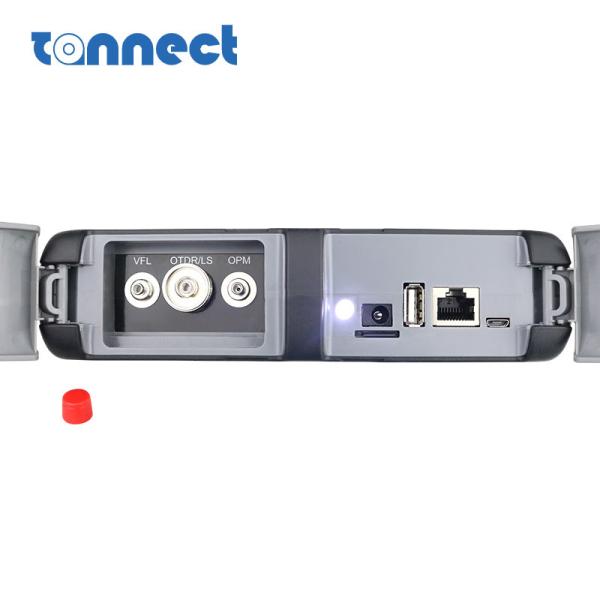

  • Sink type light port design, so that the instrument light port to get better protection
  • Support U disk, SD card and Micro USB export data protection
  • Any interface supports screen capture


Applications
*Telecommunication construction and maintenance
*CATV construction and maintenance
*Cabling system
*Optical components production and research
*Other fiber-optics projects

Specifications

Measuring range 100m,500m,2km,5km,10km,20km,40km,80km/90km
Sampling resolution Minimum: 0.2m
The sampling point 64,000 point
linearity ≤0.05dB/dB
Range accuracy ±(0.5m+Range×3×10-5+Sampling resolution) (Excluding refractive index error)
Memory >100000
VFL 10mW,CW/2Hz
Data interface 2个USB(Type A×1,Micro usb×1),SD card
Screen 4.3-inch TFT-LCD (Standard distribution capacity touch screen)
Battery 3.7V/5200mAh
temperature Working temperature:-10℃~+55℃；Storage temperature:-20 ~+80℃
humidity ≤95%(No condensation)
Size/Weight 175x105x45mm / 0.56kg(Contain the battery)
Attachment Power adapter, lithium battery, FC adaptor, USB cable, quick guide, portable package
OPM Type A:-10dBm~-70dBm;Type B:+26dBm~-50dBm
LS

The output power:-5dBm,

Modulation frequency:CW/270Hz/1KHz/2KHz
Network Cable test Support network wire sequence testing and wire alignment


Standard Configuration
Nine-in-one function 1310/1550nm SMF Mini OTDR Fiber Tester
