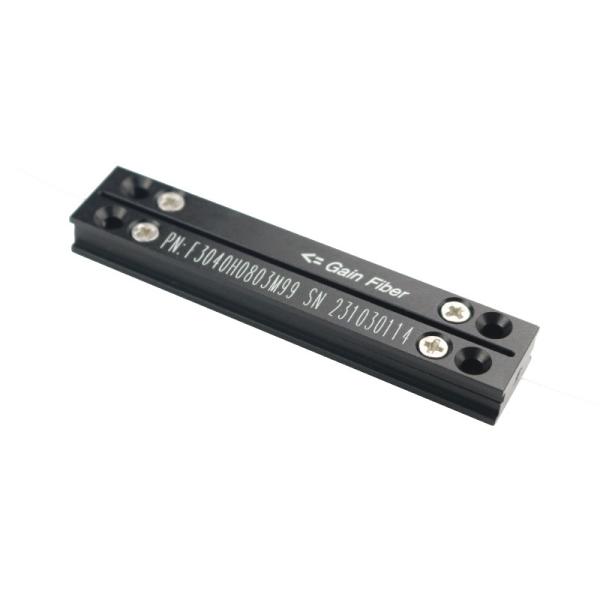

ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor
ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor
ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor
ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor
ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor
ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor
ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor
ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor
Specifications
Brand Name :
YOGEL
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
100 pieces per month
Packaging Details :
Carton box
Wavelength (nm) :
1070 1080
Insertion Loss (dB) :
≤0.2
Dimensions :
80(L)×12 (W)×5(H)
Storage Temperature :
’-40 to+85
Tolerance on RSS Center Wavelength :
2nm
Min.Attenuation (RSS Wavelength) :
20 dB
Description
Fiber Bragg Gratings
The Raman Scattering Suppressor ClearCut Fiber Bragg Grating products are ultra low insertion loss fiber bragg gratings for high power fiber lasers. With AFR's ClearCut designing and special process, the devices can handle kilowatt level pump power and signal power with recoated only. It is the only cost-effective solution that eliminates the SRS at its source and enables immunity from back reflection from the work piece
Feature:
● High Power Handling
● Fiber Laser
● Low Temperature Slope
● Exceptional Reliability
Application:
● Fiber Laser
Package Dimension:

ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor

ClearCut Fiber Bragg Gratings for High Power Fiber Lasers Ultra Low Loss AFR Low Loss High Power Fiber Laser Raman Suppressor

Ordering Information:

TFBG-①①①①-②②②②-③-④④/④④④-P⑤⑤⑤⑤-⑥

①①①①: RSS Wavelength ②②②②:Passband Center Wavelength

③: Fiber Type 1132 - 1132 nm 1080 - 1080 nm N - Non-PM SSSS - Specify SSSS - Specify P - PM

④④/④④④:Fiber Core/Cladding Dimension ⑤⑤⑤⑤: Signal Power Handling

⑥: Pigtails Length (Each Side) 20/400 - 20 μm/400 μm 3000 - 3000 W A - 1 m B - 1.2 m C - 1.4 m

SS/SSS - Specify SSSS - Specify S - Specify(≤1.7 m)

Specification:

Parameter Unit Value
Passband Center Wavelength nm 1070 1080
RSS Wavelength nm 1123 1132
Tolerance on RSS Center Wavelength nm 2
Bandwidth of RSS Wavelength at 95% nm ≥20
Max.Insertion Loss (Passband Center Wavelength) dB 0.2
dB
Min.Attenuation (RSS Wavelength) dB 20
Min.Return loss (RSS Wavelength) dB 25
dB
Fiber Core Dimension μm 10 14 20 25
Max.Core Signal Power Handling W 300 2000 3000 4000
Max.Core RSS Power Handling W 3 20 30 40
Fiber Cladding Dimension μm 125 250 400
Max.Clad Pump Power Handling W 300 2000 3000
Package Dimensions mm 80(L)×12 (W)×5(H)
Storage Temperature ℃ ’-40 to+85
