Specifications
Place of Origin :
Zhejiang, China
Brand Name :
YOMIN
Model Number :
YEM021EI
Display Type :
Analog Only
Phase :
Three Phase
Measuring Energy Range :
0-99999.9kWh
Accuracy Class :
Class1.0
Output Voltage :
380V
Operating Temperature :
-20℃~ 70℃

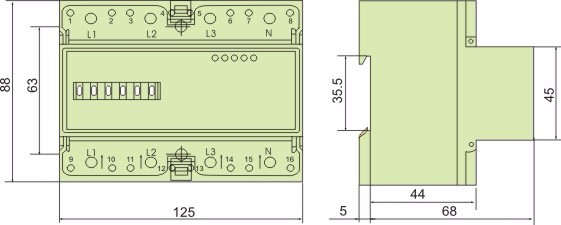

Dimensions :
88x125x73 mm
Rated Current :
5(100)A
Starting Current :
0.08A
Material of case :
PC (Poly Carbonate)
Installation :
35mm Standard DIN Rail
Connection Mode :
Directly
Frequency :
50HZ
Color :
White
Standard :
IEC62053-21
Certification :
CE, RoHS, ISO9001
OEM :
Avaliable
Packaging Details :
Conventional export packing.The outer package is covered with bubble wrap. Please state the voltage and frequency you need for the order.For instance:220V/50HZ
Price :
$16.31/Pieces 1-9 Pieces
Description

Din Rail 7p Three Phase Counter Display Electric Kwh Watt Meter

Din Rail 7p Three Phase Counter Display Electric Kwh Watt Meter

Din Rail 7p Three Phase Counter Display Electric Kwh Watt Meter

Model YEM021EI three phase four wire electronic DIN rail active energy meter is a kind of new style three phase four wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. It can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Model AccuracyFrequencySize Material
YEM021EI 1.050HZ125x88x73mmPC

Reference

Voltage(V)

Current

Specification(A)

Staring

Current(A)

Display

Mode

Insulation

Performance

3x127/220 V,

3x230/400 V

5(100)A

0.08A

Counter 5+1

AC voltage 4kv for 1 minute,

1.2/50us waveform

impulse voltage 6kv

Din Rail 7p Three Phase Counter Display Electric Kwh Watt MeterDin Rail 7p Three Phase Counter Display Electric Kwh Watt Meter

Din Rail 7p Three Phase Counter Display Electric Kwh Watt MeterDin Rail 7p Three Phase Counter Display Electric Kwh Watt MeterDin Rail 7p Three Phase Counter Display Electric Kwh Watt MeterDin Rail 7p Three Phase Counter Display Electric Kwh Watt MeterDin Rail 7p Three Phase Counter Display Electric Kwh Watt MeterDin Rail 7p Three Phase Counter Display Electric Kwh Watt MeterDin Rail 7p Three Phase Counter Display Electric Kwh Watt Meter

Din Rail 7p Three Phase Counter Display Electric Kwh Watt MeterDin Rail 7p Three Phase Counter Display Electric Kwh Watt MeterDin Rail 7p Three Phase Counter Display Electric Kwh Watt Meter

Din Rail 7p Three Phase Counter Display Electric Kwh Watt Meter

single phase 1P

No Mudbus

single phase 2P

Mudbus

single phase 4P

Mudbus

three phase

Mudbus
