Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
YOMIN
Model Number :
YEM011JC-N
Display Type :
Digital Only
Phase :
Single Phase
Measuring Energy Range :
5(100)A
Accuracy Class :
1
Output Voltage :
220 V
Operating Temperature :
-20℃~+70℃
Dimensions :
88x75x73mm
Material :
PC (Poly Carbonate)
Usage :
Active Electric Energy Measurement
Display Mode :
LCD 6+1
Connection Mode :
Directly Connection/CT/CT&PT
Color :
White
Style :
Customized design
Logo :
Laser Engrave or Print
Feature :
Good Reliability
Certificate :
ISO9001, CE, Rosh
Advantage :
Customized size
Packaging Details :
Conventional export packing.The outer package is covered with bubble wrap. Please state the voltage and frequency you need for the order.For instance:220V/50HZ
Price :
$6.37/Pieces 1-9 Pieces
Description

Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter

Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter

Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter

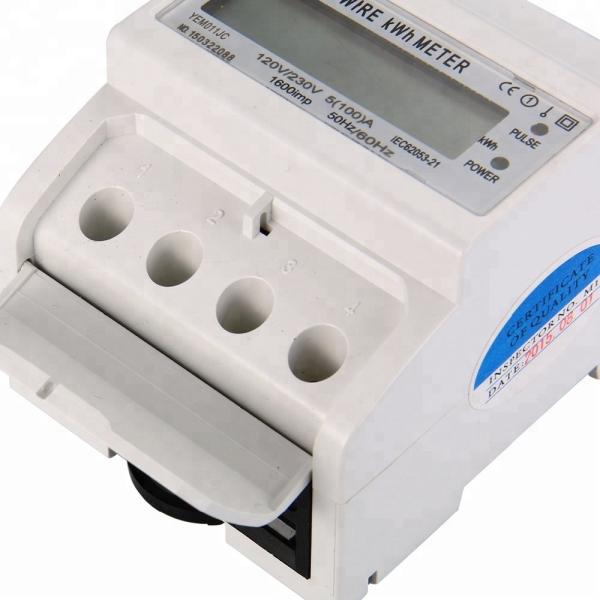

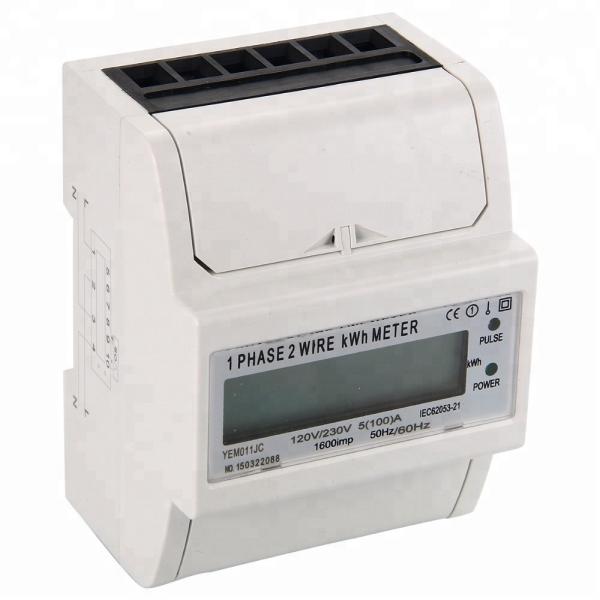

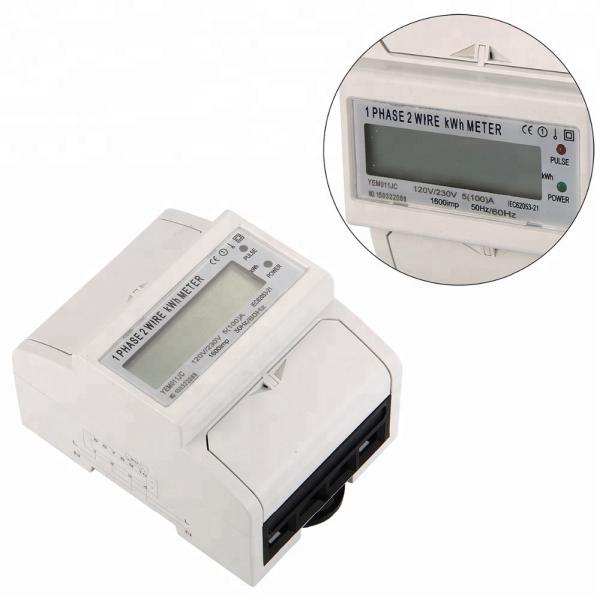

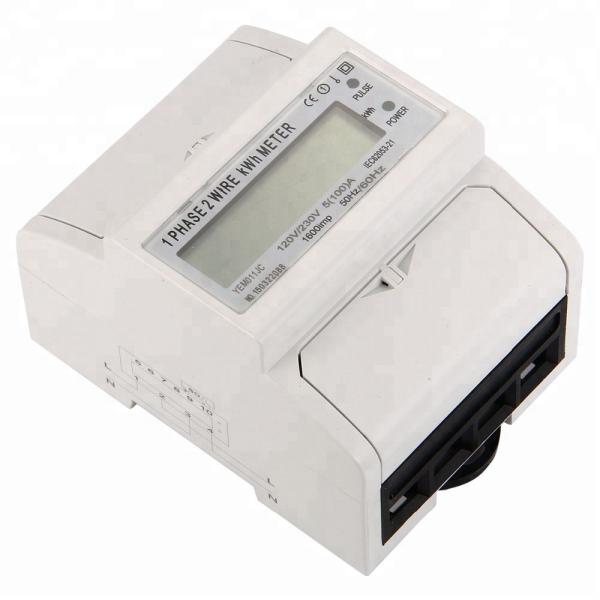

Model YEM011JC single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique,and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. This meter has seven digits LCD displays shows the active energy consumption. It has following features: good reliability, small volume, light weight,specious nice appearance, convenient installation, etc.

Technical Parameters

Model AccuracyFrequencySize Material
YEM011JC-N1.050-60HZ88x75x73mmPC

Reference

Voltage(V)

Current

Specification(A)

Staring Current(A)

Display

Mode

Insulation

Performence

127 V ,

230 V

5(30)A ,10(50)A,

20(100)A

0.02A,

0.04A,0.08A

LCD 6+1/5+2

AC voltage

4kv for 1 minute,

1.2/50us wavefrom

impulse voltage 6kv

Dimension

Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy MeterFactory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter

Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy MeterFactory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy MeterFactory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy MeterFactory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy MeterFactory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy MeterFactory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy MeterFactory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter

Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy MeterFactory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy MeterFactory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter

Factory Supply 4P Din Rail 1 Phase 2 wire Digital LCD Electric Power Energy Meter

single phase 1P

No Mudbus

single phase 2P

Mudbus

single phase 4P

Mudbus

three phase

Mudbus
