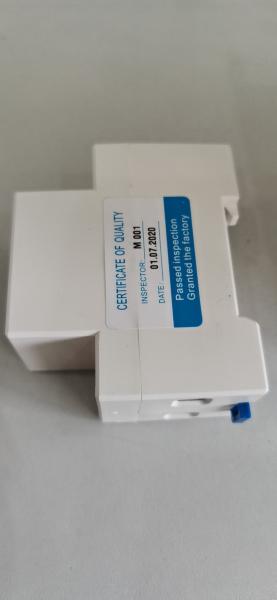

single phase cheapest 2 Poles din rail digital meter with RS485

Thank you for purchasing our single-phase two-wire din-rail energy meter with following features: Large screen LCD display;RS485 (communication protocol MODBUS-RTU) remote meter reading function, which can accurately measure active energy; Designed according to the national standard GB/T17215.321-2008 "Class 1 and 2 static AC active energy meter" and international IEC62053-21; Using advanced ultra-low power and large-scale integrated circuit technology and SMT manufacturing process; The key components are long-life devices from internationally renowned brands, which improve the reliability and longevity of the products.

Environmental Indicators:

Technical Parameters and Display Type:

LCD Display:
1st Screen displays ID address Add 001
2nd Screen displays baud rate bd 9600
3rd Screen displays constant CoSE 1000imp

The fourth screen keeps displaying:
4th Screen displays the total amount of electricity 000000.00 kWh

Intrinsic Error:
Single phase balanced load
0.05Ib Cosφ = 1 ±1.5%
0.1Ib Cosφ = 0.5L ±1.5%
Cosφ = 0.8C ±1.5%
0.1Ib - Imax Cosφ = 1 ±1.0%
0.2Ib - Imax Cosφ = 0.5L ±1.0%
Cosφ = 0.8C ±1.0%

1 Where is your factory?

Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.

2 Are you manufacturer or business?

We are manufacturer established in 2002, and have over 16 years production experience.

3. Can I ask for samples?

Yes

4. What's the warranty of your products?

18 months

5. What's the lead time?

Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales.

6. How about the MOQ, Payment term, Delivery port, and shipping date?

1)MOQ: 100 pcs/item based on existing packing.

2)T/T-30% deposit and 70% against copy of BL

3)L/C is also acceptable

4)Ningbo/Shanghai
