Automatic TIG (Plasma) Longitudinal Seam Welding Machine for pressure vessels
Automatic TIG (Plasma) Longitudinal Seam Welding Machine for pressure vessels
Automatic TIG (Plasma) Longitudinal Seam Welding Machine for pressure vessels
Automatic TIG (Plasma) Longitudinal Seam Welding Machine for pressure vessels
Automatic TIG (Plasma) Longitudinal Seam Welding Machine for pressure vessels
Automatic TIG (Plasma) Longitudinal Seam Welding Machine for pressure vessels
Specifications
Brand Name :
Yobater
Model Number :
YB-HL1500
Place of Origin :
China
MOQ :
1set
Price :
USD
Supply Ability :
10set/month
Delivery Time :
60-90days
Packaging Details :
case
THK :
3-8mm
Length :
up to 1500mm
OD :
200-1100mm
Description

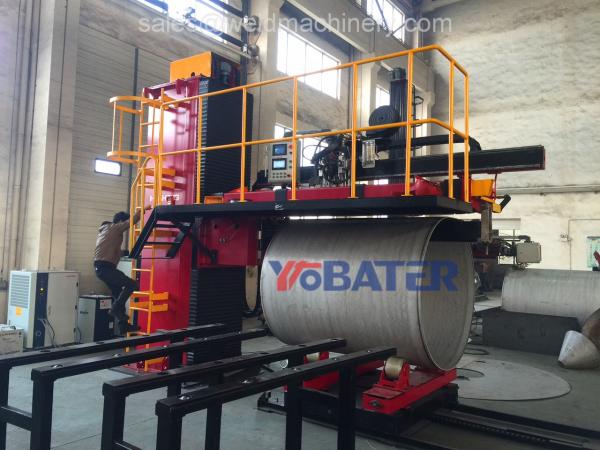

Automatic TIG (Plasma) Longitudinal Seam Welding Machine for pressure vessels

One-side welding with back formation

  • Thickness: 3 - 8mm
  • Length: up to 1500mm
  • Outer diameter: 200mm - 1100mm

Longitudinal seam weldng is a process used to produce linear welds on a wide variety of parts.

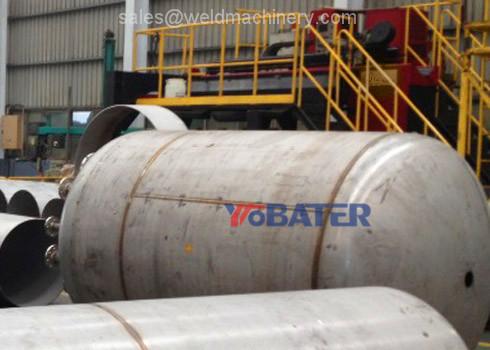

The mainly usage of the longitudinal seam welding machine is to weld the butt seam of the tank, pressure vessel, water pipe, wind duct,solar water heater, etc. According to different kinds of products, we provide customized manufacture service by customer’s special requirements.

The precision components and standard features of the longitudinal welding seamers provide a highly engineered complete platform for longitudinal welding of pressure vessels . Optional features and available programmable welding controls provide unmatched capability for automating the welding process.

STANDARD FEATURES:

  • Suitable for TIG , Plasma, MIG/MAG, Sub-Arc welding
  • Fully welded fabrication
  • Mandrel has vertical adjustment for various thicknesses
  • Adjustable mandrel latch with unique safety control
  • Independent left and right finger clamping
  • Precision ball bearing, linear track for smooth travel
  • Standard flexible track to support hoses and cables
  • Unique, easy-to-use, precision alignment gauges
  • Advanced carriage controls with automatic sequencing
  • Pneumatic torch retraction
  • Weld process development & support
  • Dual pressure control

Automatic TIG (Plasma) Longitudinal Seam Welding Machine for pressure vessels
