Specifications
Brand Name :
YDPB
Model Number :
SX011840
Place of Origin :
Luoyang，China
MOQ :
1PCS
Price :
1$
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5-7days
Packaging Details :
bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Certification :
ISO
Model :
SX011840
Material :
GCr15
Structure :
Crossed Cylindrical Roller bearings
Dimension :
200x250x24mm
Application :
Robots arm/machine tool
Name :
Cross-roller bearing
Description

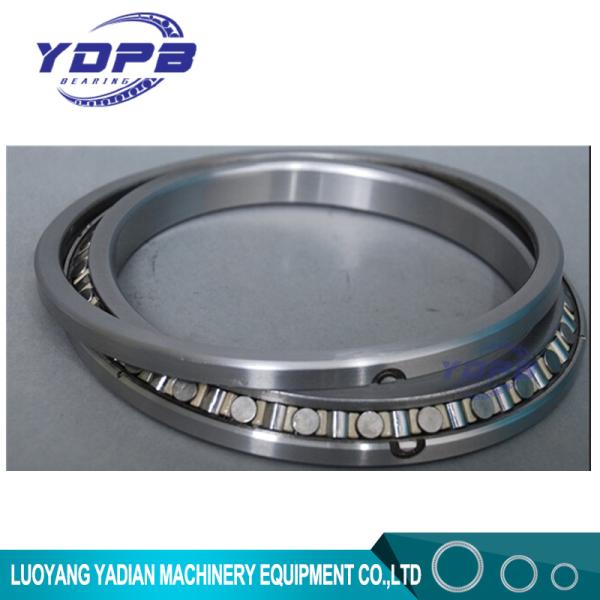

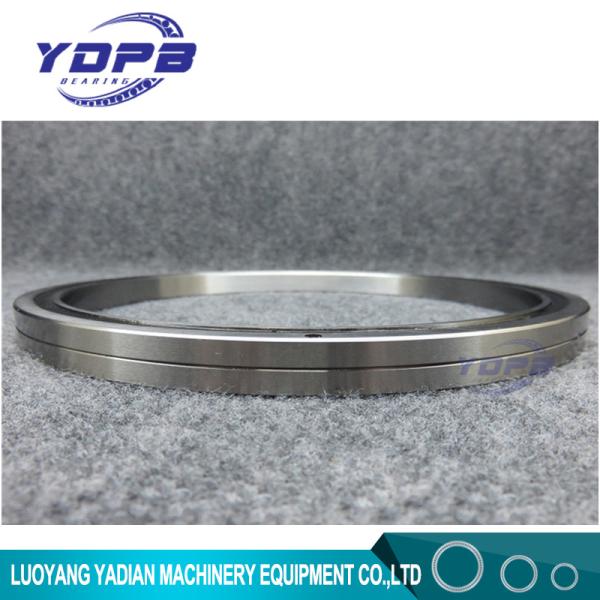

SX011840 Crossed Roller Bearings 200x250x24mm High precision Robotic arm use

Crossed Roller Bearings Parameters

Model number- SX011840

Inner ring(mm)- 200

Outer ring(mm)- 250

Width(mm)- 24

Weight(Kg)-3.1

Materials- GCR15/GCR15SiMn

Precision grade- P5/P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner Ring Rotation

Load direction- Multi-load

Structure- Outer ring split

Same structure Different sizes models

SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840 SX011848 SX011860 SX011868 SX0118/500

Main parameters

SX011840 chinese made cross roller bearing 200x250x24mm roller slewing rings in stock

Identification number Main dimensious shoulder height Basic load rating (axial) Basic load rating (radial) weight
Inner diameter outer diameter Roller pitch circle diameter width Greasing hole r de Di Ca Coa Cr Cor Kg
d D Dp B/B1 S KN KN KN KN
SX011814 70 90 80 10 1.2 0.6 79.5 80.5 18 60 12 30 0.3
SX011818 90 115 102 13 1.2 1 101.5 102.5 26 96 17 47 0.4
SX011820 100 125 112 13 1.2 1 111.5 112.5 28 106 18 52 0.5
SX011824 120 150 135 16 1.5 1 134.4 135.6 41 153 26 75 0.8
SX011828 140 175 157 18 1.5 1.1 156.3 157.7 64 237 41 116 1.1
SX011832 160 200 180 20 1.5 1.1 179.2 180.8 69 272 44 133 1.7
SX011836 180 225 202 22 2 1.1 201.2 202.8 98 381 63 187 2.3
SX011840 200 250 225 24 2 1.5 224.2 225.8 106 425 68 208 3.1
SX011848 240 300 270 28 2 2 269.2 270.8 149 612 95 300 5.3
SX011860 300 380 340 38 2.5 2.1 339.2 340.8 245 1027 156 504 12
SX011868 340 420 380 38 2.5 2.1 379.2 380.8 265 1148 167 563 13.5
SX011880 400 500 450 46 2.5 2.5 449 451 385 1699 244 833 24
SX0118/500 500 620 560 56 2.5 3 558.8 561.2 560 2538 355 1244

44

Drawings and other parameters ,pls contact us free, thanks

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
