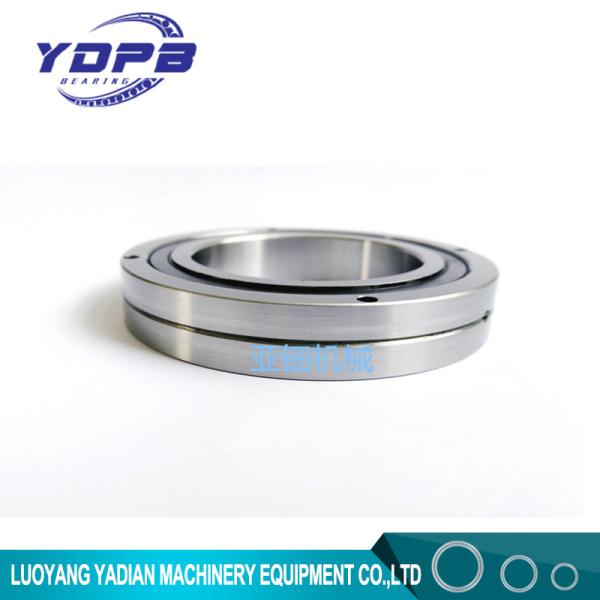

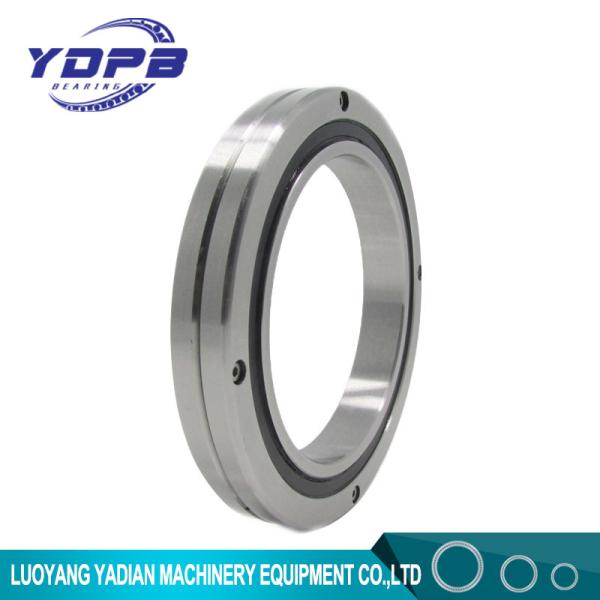

RB4510UUCCOP5 Crossed Roller Bearings (45x70x10mm) Precision slewing ring bearing Robotic arm use
RB4510UUCCOP5 Crossed Roller Bearings (45x70x10mm) Precision slewing ring bearing Robotic arm use
RB4510UUCCOP5 Crossed Roller Bearings (45x70x10mm) Precision slewing ring bearing Robotic arm use
RB4510UUCCOP5 Crossed Roller Bearings (45x70x10mm) Precision slewing ring bearing Robotic arm use
RB4510UUCCOP5 Crossed Roller Bearings (45x70x10mm) Precision slewing ring bearing Robotic arm use
RB4510UUCCOP5 Crossed Roller Bearings (45x70x10mm) Precision slewing ring bearing Robotic arm use
RB4510UUCCOP5 Crossed Roller Bearings (45x70x10mm) Precision slewing ring bearing Robotic arm use
RB4510UUCCOP5 Crossed Roller Bearings (45x70x10mm) Precision slewing ring bearing Robotic arm use
RB4510UUCCOP5 Crossed Roller Bearings (45x70x10mm) Precision slewing ring bearing Robotic arm use
RB4510UUCCOP5 Crossed Roller Bearings (45x70x10mm) Precision slewing ring bearing Robotic arm use
Specifications
Brand Name :
YDPB
Model Number :
RB4510UUCCOP5
Place of Origin :
Luoyang，China
MOQ :
1PCS
Price :
1$
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5-7days
Packaging Details :
bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Model :
RB4510UUCCOP5
Material :
GCr15
Structure :
Crossed Cylindrical Roller bearings
Dimension :
45x70X10mm
Application :
Robots arm/machine tool
Name :
Cross-roller bearing
Certification :
ISO
Description

RB4510UUCCOP5 Crossed Roller Bearings (45x70x10mm) Precision slewing ring bearing Robotic arm use
Model number- RB4510UUCCO
Inner ring(mm)- 45
Outer ring(mm)- 70
Width(mm)- 10
Weight(Kg)- 0.15
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner Ring Rotation
Load direction- Multi-load
Structure- Separable Outer Ring

Features

Cross- Roller Ring Series, compact,Highly Rigid Swivel Bearings Achieving a Superb Rotation Accurancy.

Related photoes and parameters

RB4510UUCCOP5 Crossed Roller Bearings (45x70x10mm) Precision slewing ring bearing Robotic arm use

haft diameter

 Identification number Main dimensious shoulder height Basic load rating (radial) weight
Inner diameter outer diameter Roller pitch circle diameter width Greasing hole r ds Dh C Co Kg
a b
d D DP B/B1 KN KN
50 RB 5013 50 80 64 13 2.5 1.6 1 57 72 16.7 20.9 0.27
60 RB 6013 60 90 74 13 2.5 1.6 1 68 82 18 24.3 0.3
70 RB 7013 70 100 84 13 2.5 1.6 1 78 92 19.4 27.7 0.35
80 RB 8016 80 120 98 16 3 1.6 1 91 111 30.1 42.1 0.7
90 RB 9016 90 130 108 16 3 1.6 1.5 98 118 31.4 45.3 0.75
100 RB 10016 100 140 119.3 16 3.5 1.6 1.5 109 129 31.7 48.6 0.83
RB 10020 150 123 20 3.5 1.6 1.5 113 133 33.1 50.9 1.45
110 RB 11012 110 135 121.8 12 2.5 1 1 117 127 12.5 24.1 0.4
RB 11015 145 126.5 15 3.5 1.6 1 122 136 23.7 41.5 0.75
RB 11020 160 133 20 3.5 1.6 1.5 120 140 34.0 54.0 1.56
120 RB 12016 120 150 134.2 16 3.5 1.6 1 127 141 24.2 43.2 0.72
RB 12025 180 148.7 25 3.5 2 2 133 164 66.9 100 2.62
130 RB 13015 130 160 144.5 15 3.5 1.6 1 137 152 25 46.7 0.72
RB 13025 190 158 25 3.5 2 2 143 174 69.5 107 2.82
140 RB 14016 140 175 154.8 16 2.5 1.6 1.5 147 162 25.9 50.1 1
RB 14025 200 168 25 3.5 2 2 154 185 74.8 121 2.96
150 RB 15013 150 180 164 13 2.5 1.6 1 157 172 27 53.5 0.68
RB 15025 210 178 25 3.5 2 2 164 194 76.8 128 3.16
RB 15030 230 188 30 4.5 3 2 173 211 100 156 5.3
160 RB 16025 160 220 188.6 25 3.5 2 2 173 204 81.7 135 3.14
170 RB 17020 170 220 191 20 3.5 1.6 2 184 198 29 62.1 2.21
180 RB 18025 180 240 210 25 3.5 2 2 195 225 84 143 3.44
190 RB 19025 190 240 211.9 25 3.5 1.6 1.5 202 222 41.7 82.9 2.9

Drawings and other parameters ,pls contact us free, thanks

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
Online shopping Address: https://www.ydpbbearings.com
