Specifications
Brand Name :
YDPB
Model Number :
XV30
Place of Origin :
Luoyang，China
MOQ :
1PCS
Price :
1$
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5-7days
Packaging Details :
bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Model :
XV30
Material :
GCr15
Structure :
Crossed Cylindrical Roller bearings
Dimension :
30x75x15/14mm
Application :
Robots arm/machine tool
Name :
Cross-roller bearing
Certification :
ISO
Description

XV series INA standard Crossed Roller Bearings, Split inner ring,Sealed on both sides,without gear teeth.
Model number- XV30
Inner ring(mm)- 30
Outer ring(mm)- 75
Width(mm)- 15/14
Weight(Kg)- 0.37
Materials- GCR15/GCR15SiMn
Precision grade- Standard
Lubrication type- Grease lubrication
Rotating part- Inner Ring Split
Series Model NO.
XV30,XV40,XV50,XV60,XV70,XV80,XV90,XV100,XV110.
Features
1. Are screw mounted by means of the outer ring to the adjacent construction,t
2. The inner ring is located by means of a locknut, can be adjusted very precisely to give a specific clearance or preload by means of the locknut.
3. Sealed on both sides,
4. two lubrication nipples radially and two lubrication nipples axially.
5. Working Temperature -25℃-- +80℃

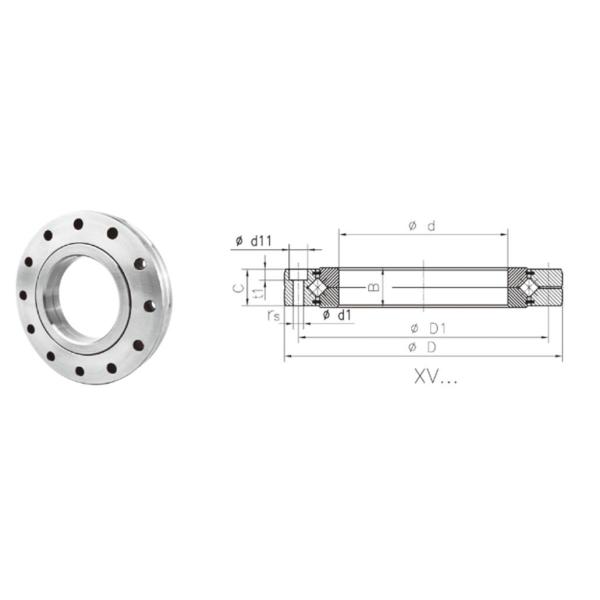

Structure and Parameters:
XV30 Crossed Roller Bearings crbc series crossed roller bearing price


Model

Dimension
(mm)

Basic load rating
(KN)

Weight
kg
d D B C D1 n 1 d 1 D 1 1 T 1 rs Cr Cor
XV30 30 75 15 14 60 12 4.6 8 4.6 2X20° 7.4 10.4 0.37
XV40 40 85 15 14 70 12 4.6 8 4.6 2X20° 8.7 13.8 0.44
XV50 50 100 17 16 85 12 5.6 10 5.4 2X20° 13.1 21.5 0.67
XV60 60 110 17 16 95 16 5.6 10 5.4 2X20° 14.4 25.5 0.75
XV70 70 120 17 16 105 16 5.6 10 5.4 2X20° 15.1 28 0.84
XV80 80 135 19 18 120 16 6.6 11 6.4 2X20° 21.4 40.5 1.18
XV90 90 145 19 18 130 16 6.6 11 6.4 2X20° 22.3 44.5 1.29
XV100 100 170 23 22 150 16 9 15 8.5 2X20° 34.4 65 2.31
XV110 110 180 23 22 160 16 9 15 8.5 2X20° 36.2 72 2.48

Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
