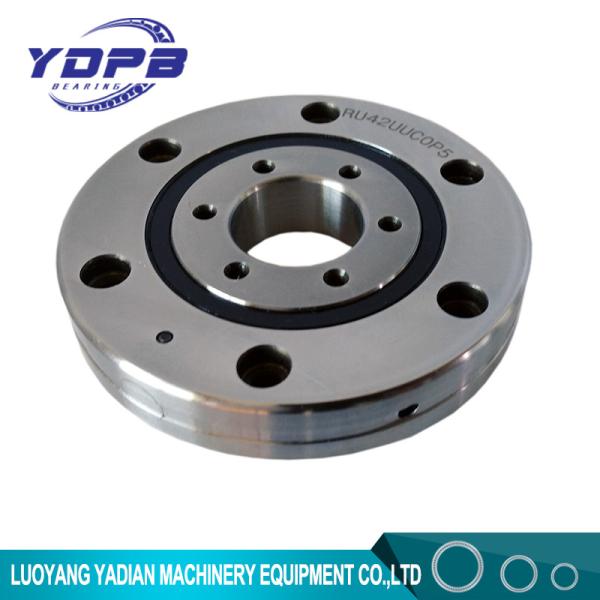

Crossed Roller slewing ring Bearings Parameters

Model number-CRBE 02012 A
Inner ring(mm)- 20
Outer ring(mm)- 70
Width(mm)- 12
Weight(Kg)- 0.29
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
precision level- P4,P2
Seals- can be double side (UU)
Clearance- CC0 or C0
Other models:

CRBE 02012 A, CRBE 03515 A, CRBE 05515 A, CRBE 08022 A,CRBE 08022 B,CRBE 08022 C,CRBE 09025 A,CRBE 09025 B,CRBE 09025 C,CRBE 11528 A,CRBE 11528 B,CRBE 11528 C, CRBE 16035 A,CRBE 16035 B,CRBE 16035 C,CRBE 21040 A, CRBE 21040 B, CRBE 21040 C

Drawings and other parameters ,pls contact us free, thanks

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.

Features of CRBE series robotics bearings
1.Can bear comprehensive load e.g radial ,axial and overturn load .
2.Thin section bearings save installation space
3.High rotary positioning precision
4.Application area:robot arm,revolute joints,chassis etc parts.
More inforamtion ,pls contact us any time ,we will try our best to serive you.

More related products we have in stock
YRTS High speed rotary table bearings ,YRTM with angle measuring system bearings,ZKLDF SERIES ROTARY TABLE BEARING,Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing , Ceramic bearings.
