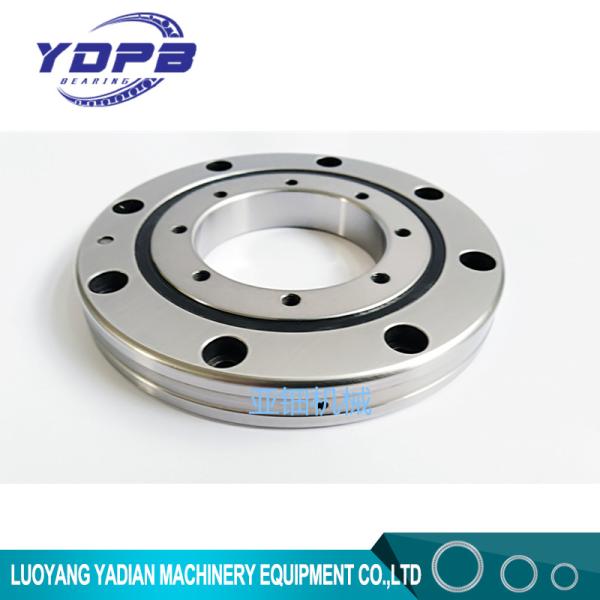

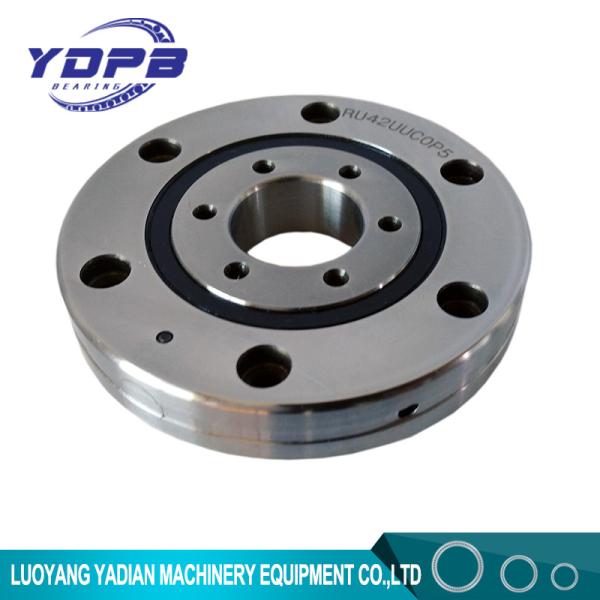

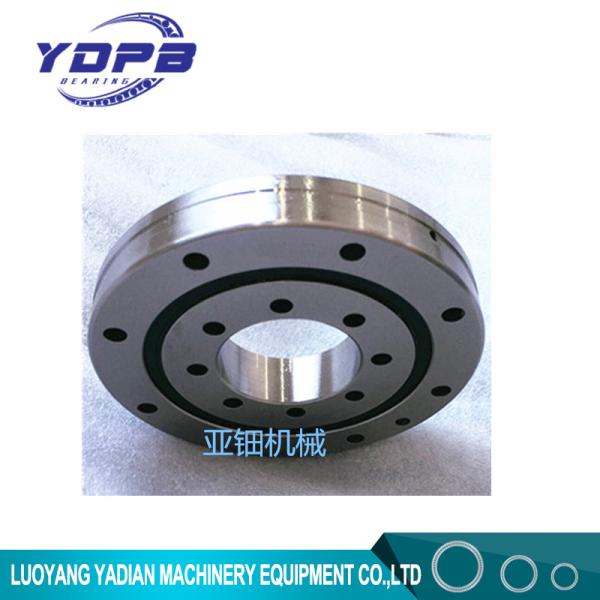

RU178 X UUCC0 P4 Crossed Roller Bearings 115X240X28mm Robots use bearings
RU178 X UUCC0 P4 Crossed Roller Bearings 115X240X28mm Robots use bearings
RU178 X UUCC0 P4 Crossed Roller Bearings 115X240X28mm Robots use bearings
RU178 X UUCC0 P4 Crossed Roller Bearings 115X240X28mm Robots use bearings
RU178 X UUCC0 P4 Crossed Roller Bearings 115X240X28mm Robots use bearings
RU178 X UUCC0 P4 Crossed Roller Bearings 115X240X28mm Robots use bearings
RU178 X UUCC0 P4 Crossed Roller Bearings 115X240X28mm Robots use bearings
RU178 X UUCC0 P4 Crossed Roller Bearings 115X240X28mm Robots use bearings
Specifications
Brand Name :
YDPB
Model Number :
RU178 X UUCC0 P4
Place of Origin :
Luoyang，China
MOQ :
1PCS
Price :
1$
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5-7days
Packaging Details :
bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Model :
RU 178 X UUCC0 P4
Material :
GCr15SiMn
Structure :
Crossed Cylindrical Roller bearings
Dimension :
115X240X28mm
Application :
Robots arm
Name :
Cross-roller Slewing Ring bearing
Certification :
ISO
Description

Model number- RU178 G UUCC0 P4
Inner ring(mm)- 115
Outer ring(mm)- 240
Width(mm)- 28
Weight(Kg)- 6.8
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
precision level- P4,P2
Seals- can be double side (UU)
Clearance- CC0 or C0


Other models:
RU42,RU66,RU85,RU124(G)(X),RU148(G)(X),RU178(G)(X),RU228(G)(X),
RU297(G)(X),RU445(G)(X)


RU178 X UUCC0 P4 Crossed Roller Bearings 115X240X28mm Robots use bearings

shaft diameter Identification number Main dimensious shoulder height Basic load rating (radial) weight
Inner diameter outer diameter Roller pitch circle diameter
width		 Greasing hole∮ Chamfer
R(min)		 ds Dh C Co Kg
d D DP B/B1 KN KN
35 RU66 35 95 66 15 3.1 0.6 59 74 17.5 22.3 0.62
55 RU85 55 120 85 15 3.1 0.6 79 93 20.3 29.5 1
80 RU124(G) 80 165 124 22 3.1 1 114 134 33.1 50.9 2.6
RU124X
90 RU148(G) 90 210 147.5 25 3.1 1.5 133 162 49.1 76.8 4.9
RU148X
115 RU178(G) 115 240 178 28 3.1 1.5 161 195 80.3 135 6.8
RU178X
160 RU228(G) 160 295 227.5 35 6 2 208 246 104 172 11.4
RU228X
210 RU297(G) 210 380 297.3 40 6 2.5 272 320 156 281 21.3
RU297X
350 RU445(G) 350 540 445.4 45 6 2.5 417 473 222 473 35.4
RU445X


Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.

Features of RU series robotics bearings
1.Can bear comprehensive load e.g radial ,axial and overturn load .
2.Thin section bearings save installation space
3.High rotary positioning precision
4.Application area:robot arm,revolute joints,chassis etc parts.
More inforamtion ,pls contact us any time ,we will try our best to serive you.


More related products we have in stock
YRTS High speed rotary table bearings ,YRTM with angle measuring system bearings,ZKLDF SERIES ROTARY TABLE BEARING,Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing , Ceramic bearings.
