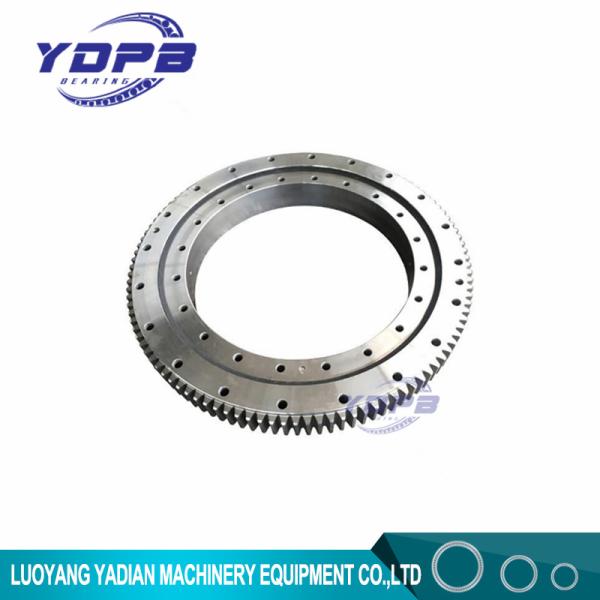

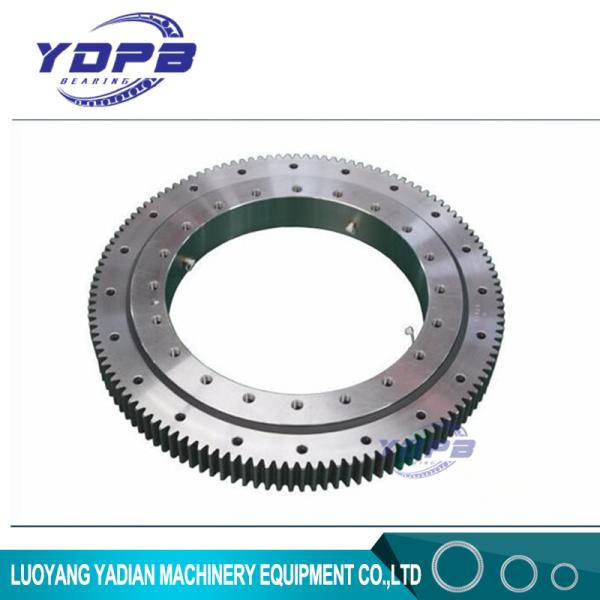

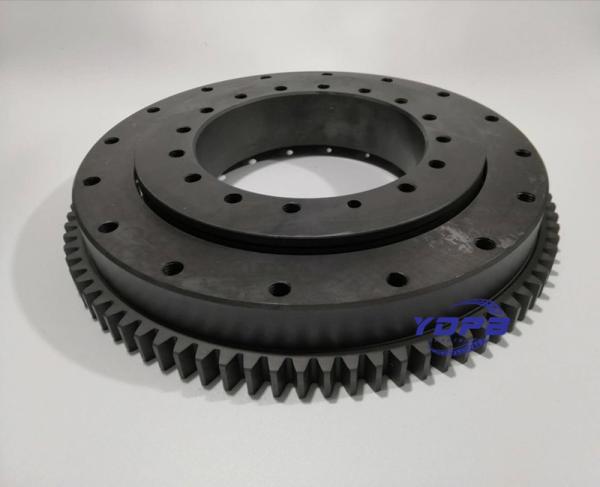

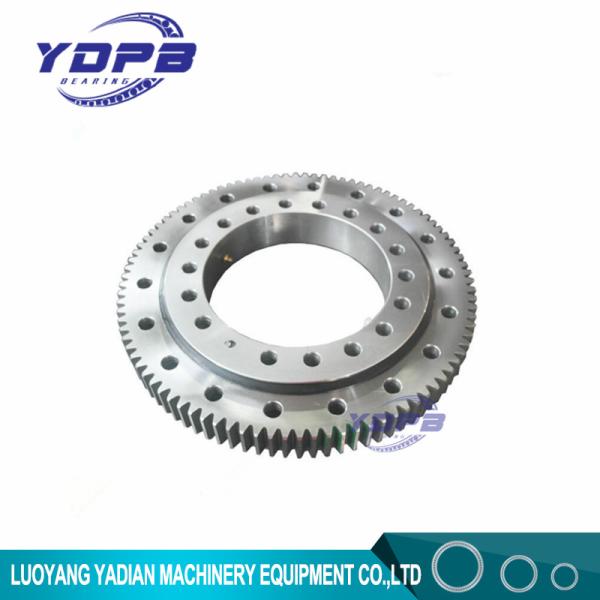

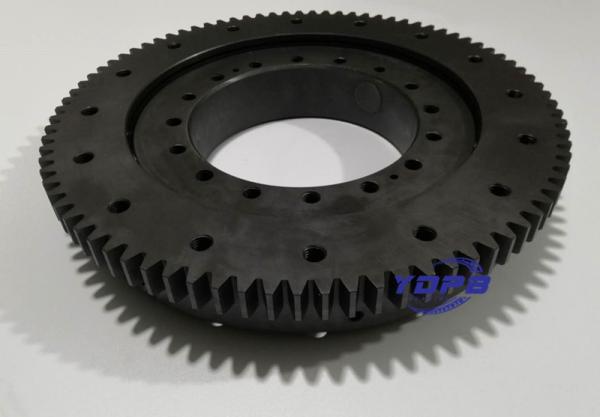

XA 503005N Cross roller bearing XA 453170N slewing rings XA 503365 external gear XA 503585N replace INA brand XA503765
XA 503005N Cross roller bearing XA 453170N slewing rings XA 503365 external gear XA 503585N replace INA brand XA503765
XA 503005N Cross roller bearing XA 453170N slewing rings XA 503365 external gear XA 503585N replace INA brand XA503765
XA 503005N Cross roller bearing XA 453170N slewing rings XA 503365 external gear XA 503585N replace INA brand XA503765
XA 503005N Cross roller bearing XA 453170N slewing rings XA 503365 external gear XA 503585N replace INA brand XA503765
XA 503005N Cross roller bearing XA 453170N slewing rings XA 503365 external gear XA 503585N replace INA brand XA503765
XA 503005N Cross roller bearing XA 453170N slewing rings XA 503365 external gear XA 503585N replace INA brand XA503765
XA 503005N Cross roller bearing XA 453170N slewing rings XA 503365 external gear XA 503585N replace INA brand XA503765
XA 503005N Cross roller bearing XA 453170N slewing rings XA 503365 external gear XA 503585N replace INA brand XA503765
XA 503005N Cross roller bearing XA 453170N slewing rings XA 503365 external gear XA 503585N replace INA brand XA503765
Specifications
Brand Name :
YDPB
Model Number :
XA 503005N
Certification :
ISO
Place of Origin :
Luoyang，China
MOQ :
1PCS
Price :
1$
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5-7days
Packaging Details :
bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Model :
XA 503005N
Material :
50Mn Or according to you
Structure :
Cross roller bearing
Dimension :
XA 503005N
Application :
Manipulators
Name :
INA Cross roller bearing slewing rings
Description

XA 503005N Cross roller bearing XA 453170N slewing rings XA 503365 external gear XA 503585N replace INA brand XA503765

  • Structure:Cross roller
  • Gear teeth: external
  • Seals type:double seals
  • Material: 50Mn/ custom made
  • For light duty industrial manipulator or precision robotics.

Structure and Parameters:

XA 503005N Cross roller bearing XA 453170N slewing rings XA 503365 external gear XA 503585N replace INA brand XA503765

Model INA

Outer dimension

(mm)

Mounting dimensio

n(mm)

Gear datas

(mm)

Axial Static

load

rating (KN)

Weight

(KG)
Da D di H La Li n1 n2 φ1 φ2 m z do x
XOU10/235 XA 120235N 318.8 171 40 275 195 12 12 13 13 4 78 312 280 13
XOU20/307 XA 180307N 408.4 235 55 358 259 24 24 13 13 5 80 400 450 29
XOU15/407 XA 160407N 503.3 335 50 455 359 30 30 13 13 5 99 495 600 33
XOU25/475Y XA 260475N 598.2 382 65 540 410 36 36 16 16 6 98 588 1060 64
XOU30/560 XA 280560N 708 464 87 628 492 56 56 16 16 10 69 690 1245 110
XOU15/540 XA 140540N 640.3 471 48 585 495 40 40 13 13 6 105 630 770 39
XOU15/596 XA 160596N 712.3 510 55 650 542 24 24 18 18 6 117 702 880 63
XOU15/640 XA 140640N 742.3 571 50 685 595 44 44 13 13 6 122 732 910 50
XOU25/685 XA 240685N 830.1 577 68 753 617 24 24 22 22 8 102 816 1380 115
XOU20/720 XA 200720N 844.3 630 59 780 662 30 30 18 18 6 139 834 1180 87
XOU15/753 XA 140753N 862.3 674 50 800 706 28 28 18 18 6 142 852 1060 65
XOU20/818 XA 200818N 940.1 728 60 875 760 36 36 18 18 6 155 930 1460 100
XOU30/845 XA 280845N 1008 730 87 920 770 40 40 22 22 10 99 990 1830 200
XOU20/895 XA 220895N 1038.1 790 68 960 830 32 32 22 22 8 128 1024 1860 145
XOU30/995 XA 280995N 1158 882 80 1068 922 40 40 22 22 10 114 1140 2550 210
XOU20/978 XA 220978N 1110.1 883 68 1040 915 52 52 18 18 8 137 1096 2100 140
XOU15/969 XA 140969N 1086.1 890 60 1015 922 36 36 18 18 8 134 1072 1400 105
XOU35/1117 XA 341117N 1293.6 995 100 1198 1035 60 60 22 22 12 106 1272 3600 310
XOU30/1213 XA 301213N 1389.6 1095 92 1290 1135 56 56 22 22 12 114 1368 3800 300
XOU25/1320Y XA 261320N 1485.6 1210 85 1390 1250 52 52 22 22 12 122 1464 3800 285
XOU35/1455 XA 341455N 1653.6 1317 95 1545 1365 56 56 26 26 12 136 1632 5100 430
XOU30/1600Y2 XA 301600N 1803.5 1470 92 1682 1518 52 52 26 26 14 127 1778 4200 460
XOU50/1790 XA 501790N 2027.5 1621 130 1905 1675 76 76 30 30 14 143 2002 8200 890
XOU40/1765 XA 401765N 1971.5 1622 110 1860 1670 68 68 26 26 14 139 1946 6100 640
XOU40/1832 XA 401832N 2041.5 1687 110 1930 1735 72 72 26 26 14 144 2016 6400 680
XOU20/1821 XA 221821N 2013.1 1714 100 1886 1754 64 64 22 22 18 110 1980 3900 500
XOU40/1985 XA 401985N 2229.1 1826 110 2089 1880 72 72 30 30 18 122 2196 6900 810
XOU40/2130 XA 402130N 2381.4 1965 118 2235 2025 52 52 33 33 16 147 2352 7600 980
XOU35/2253 XA 342253N 2457.6 2112 118 2345 2160 88 88 26 26 12 203 2436 5600 850
XOU30/2304 XA 282304N 2493.4 2190 110 2378 2230 92 92 22 22 16 154 2464 5350 680
XOU40/2355 XA 402355N 2605.1 2190 118 2460 2250 60 60 33 33 16 161 2576 7000 1070
XOU40/2638 XA 402638N 2861.1 2492 118 2735 2540 104 104 26 26 16 177 2832 7300 1050
XOU45/2815 XA 452815N 3096.8 2640 127 2930 2700 84 84 33 33 20 153 3060 9500 1490
XOU45/2935 XA 452935N 3216.8 2760 127 3050 2820 84 84 33 33 20 159 3180 10000 1560
XOU50/3005 XA 503005N 3272.8 2820 138 3130 2880 104 104 33 33 18 180 3240 12100 1720
XOU45/3170 XA 453170N 3436.8 2995 127 3285 3055 92 92 33 33 20 170 3400 10600 1610
XOU50/3365 XA 503365N 3632.8 3180 138 3490 3240 116 116 33 33 18 200 3600 13100 1920
XOU50/3585 XA 503585N 3866.8 3400 138 3710 3460 124 124 33 33 18 213 3834 14500 2130
XOU50/3765 XA 503765N 4046.8 3580 138 3890 3640 128 128 33 33 18 223 4014 15200 2240
XOU50/4175 XA 504175N 4436.8 3970 138 4285 4030 144 144 33 33 20 220 4400 16800 2430

Drawings and other parameters ,pls contact us free, thanks

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available


Online shopping Address: www.ydpbbearings.com
