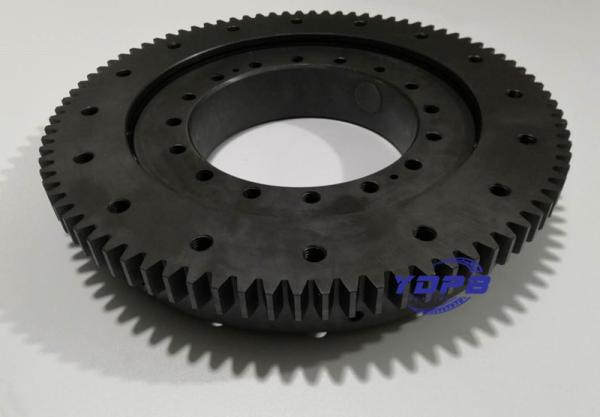

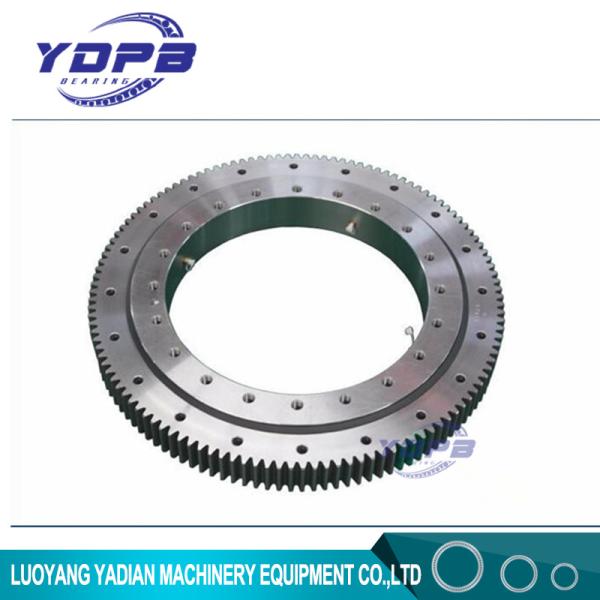

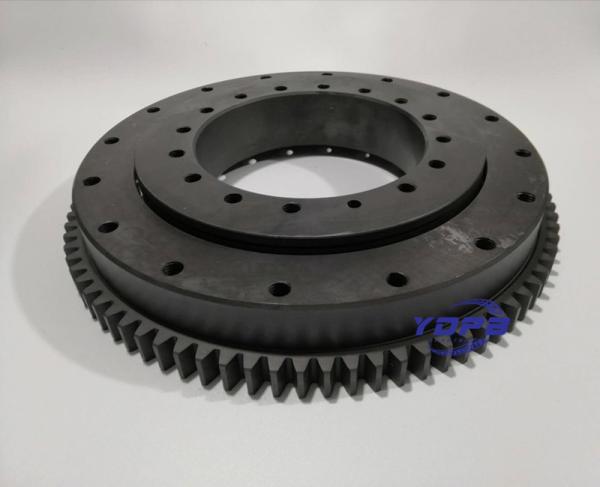

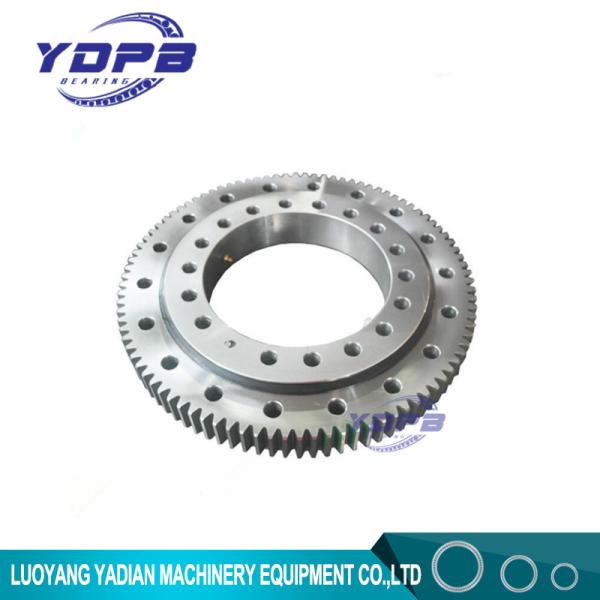

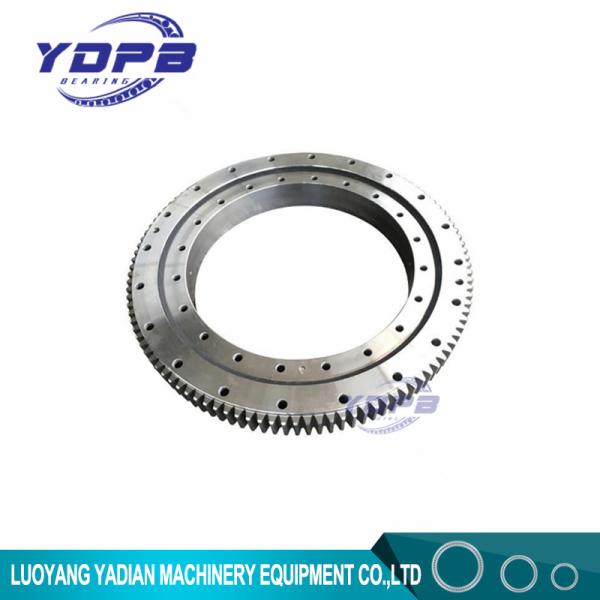

MTE-210/MTE-210T four point contact ball slewing ring external gear 8.268X14.686X1.575inch kaydon slewing rings
MTE-210/MTE-210T four point contact ball slewing ring external gear 8.268X14.686X1.575inch kaydon slewing rings
MTE-210/MTE-210T four point contact ball slewing ring external gear 8.268X14.686X1.575inch kaydon slewing rings
MTE-210/MTE-210T four point contact ball slewing ring external gear 8.268X14.686X1.575inch kaydon slewing rings
MTE-210/MTE-210T four point contact ball slewing ring external gear 8.268X14.686X1.575inch kaydon slewing rings
MTE-210/MTE-210T four point contact ball slewing ring external gear 8.268X14.686X1.575inch kaydon slewing rings
MTE-210/MTE-210T four point contact ball slewing ring external gear 8.268X14.686X1.575inch kaydon slewing rings
MTE-210/MTE-210T four point contact ball slewing ring external gear 8.268X14.686X1.575inch kaydon slewing rings
MTE-210/MTE-210T four point contact ball slewing ring external gear 8.268X14.686X1.575inch kaydon slewing rings
MTE-210/MTE-210T four point contact ball slewing ring external gear 8.268X14.686X1.575inch kaydon slewing rings
Specifications
Brand Name :
YDPB
Model Number :
MTE-210/MTE-210T
Place of Origin :
Luoyang，China
MOQ :
1PCS
Price :
1$
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5-7days
Packaging Details :
bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Model :
MTE-210/MTE-210T
Material :
50Mn Or according to you
Structure :
Four-point contact ball
Dimension :
8.268X14.686X1.575inch
Application :
Manipulators
Name :
Kaydon Four-point contact ball bearings slewing rings
Certification :
ISO
Description

MTE-210/MTE-210T four point contact ball slewing ring external gear 8.268X14.686X1.575inch kaydon slewing rings

  • Structure:four point contact ball slewing bearing
  • Gear teeth: external
  • Seals type:double seals
  • Material: 52100/100Cr6/GCr15
  • For light duty industrial manipulator or precision robotics.

Series Model NO..

Model Outline Dimensions and Weight Mounting Holes
Outer Ring Inner Ring
d D H Hi/Ho G APPROX. Lo no Bo Li ni Bi
(in) (in) (in) (in) (lbs) (in) (in) (in) (in)
MTE-145 5.709 12.286 1.968 1.732 38 10.630 16 0.562 6.890 16 0.562
MTE-145T 5.709 12.286 1.968 1.732 38 10.630 16 5/8-11 6.890 16 5/8-11
MTE-145X 5.709 12.286 1.968 1.732 38 10.630 16 0.594 6.890 16 0.594
MTE-210 8.268 14.686 1.575 1.496 38 13.190 16 0.562 9.449 20 0.562
MTE-210T 8.268 14.686 1.575 1.496 38 13.190 16 5/8-11 9.449 20 5/8-11
MTE-210X 8.268 14.686 1.968 1.732 44 13.190 16 0.594 9.449 20 0.594
MTE-265 10.433 17.086 1.968 1.732 57 15.354 18 0.562 11.614 24 0.562
MTE-265T 10.433 17.086 1.968 1.732 57 15.354 18 5/8-11 11.614 24 5/8-11
MTE-265X 10.433 17.086 1.968 1.732 57 15.354 18 0.594 11.614 24 0.594
MTE-324T 12.750 20.486 2.062 2.022 98 18.875 20 5/8-11 14.375 20 5/8-11
MTE-324X 12.770 20.486 2.375 2.063 99 18.875 20 0.688 14.375 20 0.688
MTE-415 16.250 24.650 2.375 2.063 132 22.250 16 0.813 17.750 20 0.813
MTE-415T 16.250 24.650 2.375 2.063 132 22.250 16 3/4-10 17.750 20 3/4-10
MTE-470 18.500 26.900 2.375 2.063 147 24.500 18 0.813 20.000 24 0.813
MTE-470T 18.500 26.900 2.375 2.063 147 24.500 18 3/4-10 20.000 24 3/4-10
MTE-540 21.250 29.650 2.375 2.063 163 27.250 24 0.813 22.750 28 0.813
MTE-540T 21.250 29.650 2.375 2.063 163 27.250 24 3/4-10 22.750 28 3/4-10
MTE-590 23.125 33.534 2.875 2.563 283 30.625 18 0.938 24.875 24 0.938
MTE-590T 23.125 33.534 2.875 2.563 283 30.625 18 7/8-9 24.875 24 7/8-9
MTE-705 27.750 38.201 2.875 2.563 325 35.250 24 0.938 29.500 28 0.938
MTE-705T 27.750 38.201 2.875 2.563 325 35.250 24 7/8-9 29.500 28 7/8-9
MTE-730 28.750 41.850 3.250 2.880 491 38.000 20 1.063 31.000 24 1.063
MTE-730T 28.750 41.850 3.250 2.880 491 38.000 20 1-8 31.000 24 1-8
MTE-870 34.250 47.444 4.250 3.875 771 43.875 24 1.188 36.250 28 1.188
MTE-870T 34.250 47.444 4.250 3.875 771 43.875 24 1 1/8-7 36.250 28 1 1/8-7


Applications
MT series slewing ring bearings have been used successfully in a wide range of applications from light to heavy duty. The smaller sizes are well suited for:

  • Manipulators
  • Jib cranes
  • Lift-assist devices
  • Work positioners

Larger sizes are well suited for:

  • Truck-mounted cranes
  • Aerial lifts
  • Hoists
  • Small wind turbines
  • Non-precision positioning tables

Structure and Parameters:
MTE-210/MTE-210T four point contact ball slewing ring external gear 8.268X14.686X1.575inch kaydon slewing rings

Model Outline Dimensions and Weight Mounting Holes
Outer Ring Inner Ring
d D H Hi/Ho G APPROX. Lo no Bo Li ni Bi
(in) (in) (in) (in) (lbs) (in) (in) (in) (in)
MTE-145 5.709 12.286 1.968 1.732 38 10.630 16 0.562 6.890 16 0.562
MTE-145T 5.709 12.286 1.968 1.732 38 10.630 16 5/8-11 6.890 16 5/8-11
MTE-145X 5.709 12.286 1.968 1.732 38 10.630 16 0.594 6.890 16 0.594
MTE-210 8.268 14.686 1.575 1.496 38 13.190 16 0.562 9.449 20 0.562
MTE-210T 8.268 14.686 1.575 1.496 38 13.190 16 5/8-11 9.449 20 5/8-11
MTE-210X 8.268 14.686 1.968 1.732 44 13.190 16 0.594 9.449 20 0.594
MTE-265 10.433 17.086 1.968 1.732 57 15.354 18 0.562 11.614 24 0.562
MTE-265T 10.433 17.086 1.968 1.732 57 15.354 18 5/8-11 11.614 24 5/8-11
MTE-265X 10.433 17.086 1.968 1.732 57 15.354 18 0.594 11.614 24 0.594
MTE-324T 12.750 20.486 2.062 2.022 98 18.875 20 5/8-11 14.375 20 5/8-11
MTE-324X 12.770 20.486 2.375 2.063 99 18.875 20 0.688 14.375 20 0.688
MTE-415 16.250 24.650 2.375 2.063 132 22.250 16 0.813 17.750 20 0.813
MTE-415T 16.250 24.650 2.375 2.063 132 22.250 16 3/4-10 17.750 20 3/4-10
MTE-470 18.500 26.900 2.375 2.063 147 24.500 18 0.813 20.000 24 0.813
MTE-470T 18.500 26.900 2.375 2.063 147 24.500 18 3/4-10 20.000 24 3/4-10
MTE-540 21.250 29.650 2.375 2.063 163 27.250 24 0.813 22.750 28 0.813
MTE-540T 21.250 29.650 2.375 2.063 163 27.250 24 3/4-10 22.750 28 3/4-10
MTE-590 23.125 33.534 2.875 2.563 283 30.625 18 0.938 24.875 24 0.938
MTE-590T 23.125 33.534 2.875 2.563 283 30.625 18 7/8-9 24.875 24 7/8-9
MTE-705 27.750 38.201 2.875 2.563 325 35.250 24 0.938 29.500 28 0.938
MTE-705T 27.750 38.201 2.875 2.563 325 35.250 24 7/8-9 29.500 28 7/8-9
MTE-730 28.750 41.850 3.250 2.880 491 38.000 20 1.063 31.000 24 1.063
MTE-730T 28.750 41.850 3.250 2.880 491 38.000 20 1-8 31.000 24 1-8
MTE-870 34.250 47.444 4.250 3.875 771 43.875 24 1.188 36.250 28 1.188
MTE-870T 34.250 47.444 4.250 3.875 771 43.875 24 1 1/8-7 36.250 28 1 1/8-7

Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available


Online shopping Address: www.ydpbbearings.com
