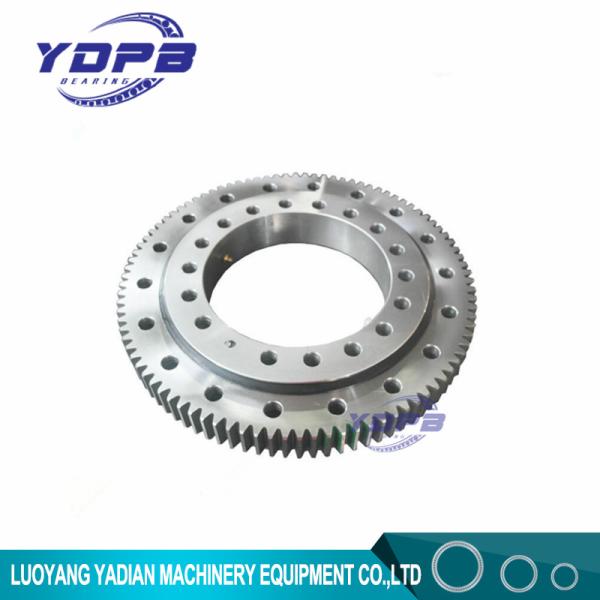

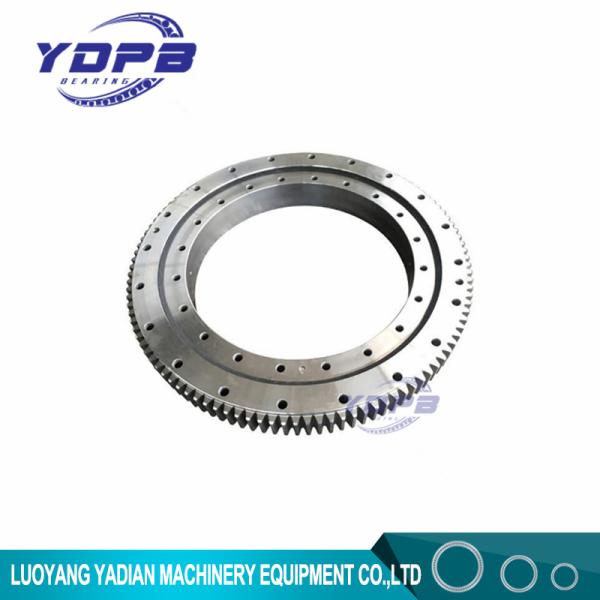

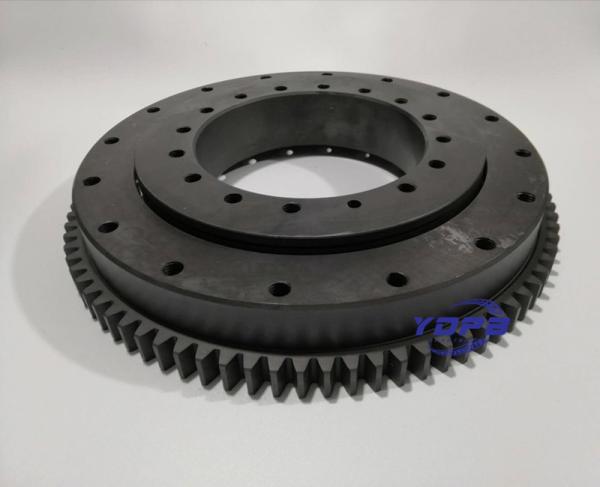

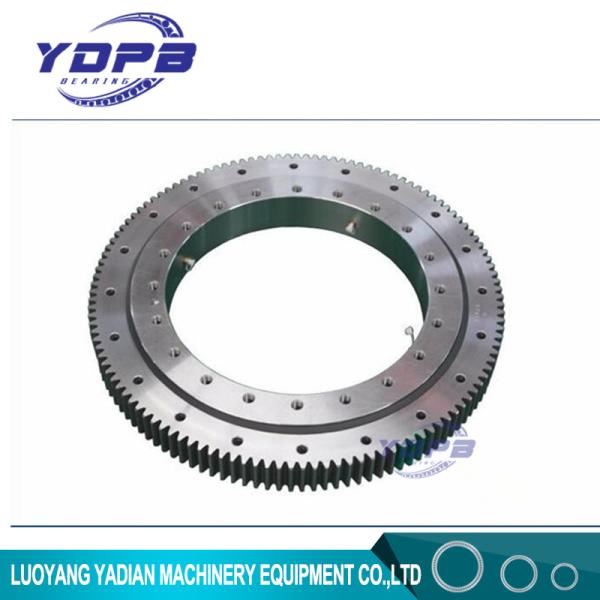

XA 240685N Cross roller bearing slewing rings external gear 577x830.1x68mm INA Brand XOU25/685
XA 240685N Cross roller bearing slewing rings external gear 577x830.1x68mm INA Brand XOU25/685
XA 240685N Cross roller bearing slewing rings external gear 577x830.1x68mm INA Brand XOU25/685
XA 240685N Cross roller bearing slewing rings external gear 577x830.1x68mm INA Brand XOU25/685
XA 240685N Cross roller bearing slewing rings external gear 577x830.1x68mm INA Brand XOU25/685
XA 240685N Cross roller bearing slewing rings external gear 577x830.1x68mm INA Brand XOU25/685
XA 240685N Cross roller bearing slewing rings external gear 577x830.1x68mm INA Brand XOU25/685
XA 240685N Cross roller bearing slewing rings external gear 577x830.1x68mm INA Brand XOU25/685
XA 240685N Cross roller bearing slewing rings external gear 577x830.1x68mm INA Brand XOU25/685
XA 240685N Cross roller bearing slewing rings external gear 577x830.1x68mm INA Brand XOU25/685
Specifications
Brand Name :
YDPB
Model Number :
XA 240685N
Certification :
ISO
Place of Origin :
Luoyang，China
MOQ :
1PCS
Price :
1$
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5-7days
Packaging Details :
bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Model :
XA 240685N
Material :
50Mn Or according to you
Structure :
Cross roller bearing
Dimension :
577x830.1x68mm
Application :
Manipulators
Name :
INA Cross roller bearing slewing rings
Description

XA 240685N Cross roller bearing slewing rings external gear 577x830.1x68mm INA Brand XOU25/685

  • Structure:Cross roller
  • Gear teeth: external
  • Seals type:double seals
  • Material: 50Mn/ custom made
  • For light duty industrial manipulator or precision robotics.

Structure and Parameters:

XA 240685N Cross roller bearing slewing rings external gear 577x830.1x68mm INA Brand XOU25/685

Model INA

Outer dimension

(mm)

Mounting dimensio

n(mm)

Gear datas

(mm)

Axial Static

load

rating (KN)

Weight

(KG)
Da D di H La Li n1 n2 φ1 φ2 m z do x
XOU10/235 XA 120235N 318.8 171 40 275 195 12 12 13 13 4 78 312 280 13
XOU20/307 XA 180307N 408.4 235 55 358 259 24 24 13 13 5 80 400 450 29
XOU15/407 XA 160407N 503.3 335 50 455 359 30 30 13 13 5 99 495 600 33
XOU25/475Y XA 260475N 598.2 382 65 540 410 36 36 16 16 6 98 588 1060 64
XOU30/560 XA 280560N 708 464 87 628 492 56 56 16 16 10 69 690 1245 110
XOU15/540 XA 140540N 640.3 471 48 585 495 40 40 13 13 6 105 630 770 39
XOU15/596 XA 160596N 712.3 510 55 650 542 24 24 18 18 6 117 702 880 63
XOU15/640 XA 140640N 742.3 571 50 685 595 44 44 13 13 6 122 732 910 50
XOU25/685 XA 240685N 830.1 577 68 753 617 24 24 22 22 8 102 816 1380 115
XOU20/720 XA 200720N 844.3 630 59 780 662 30 30 18 18 6 139 834 1180 87
XOU15/753 XA 140753N 862.3 674 50 800 706 28 28 18 18 6 142 852 1060 65
XOU20/818 XA 200818N 940.1 728 60 875 760 36 36 18 18 6 155 930 1460 100
XOU30/845 XA 280845N 1008 730 87 920 770 40 40 22 22 10 99 990 1830 200
XOU20/895 XA 220895N 1038.1 790 68 960 830 32 32 22 22 8 128 1024 1860 145
XOU30/995 XA 280995N 1158 882 80 1068 922 40 40 22 22 10 114 1140 2550 210
XOU20/978 XA 220978N 1110.1 883 68 1040 915 52 52 18 18 8 137 1096 2100 140
XOU15/969 XA 140969N 1086.1 890 60 1015 922 36 36 18 18 8 134 1072 1400 105
XOU35/1117 XA 341117N 1293.6 995 100 1198 1035 60 60 22 22 12 106 1272 3600 310
XOU30/1213 XA 301213N 1389.6 1095 92 1290 1135 56 56 22 22 12 114 1368 3800 300
XOU25/1320Y XA 261320N 1485.6 1210 85 1390 1250 52 52 22 22 12 122 1464 3800 285
XOU35/1455 XA 341455N 1653.6 1317 95 1545 1365 56 56 26 26 12 136 1632 5100 430
XOU30/1600Y2 XA 301600N 1803.5 1470 92 1682 1518 52 52 26 26 14 127 1778 4200 460
XOU50/1790 XA 501790N 2027.5 1621 130 1905 1675 76 76 30 30 14 143 2002 8200 890
XOU40/1765 XA 401765N 1971.5 1622 110 1860 1670 68 68 26 26 14 139 1946 6100 640
XOU40/1832 XA 401832N 2041.5 1687 110 1930 1735 72 72 26 26 14 144 2016 6400 680
XOU20/1821 XA 221821N 2013.1 1714 100 1886 1754 64 64 22 22 18 110 1980 3900 500
XOU40/1985 XA 401985N 2229.1 1826 110 2089 1880 72 72 30 30 18 122 2196 6900 810
XOU40/2130 XA 402130N 2381.4 1965 118 2235 2025 52 52 33 33 16 147 2352 7600 980
XOU35/2253 XA 342253N 2457.6 2112 118 2345 2160 88 88 26 26 12 203 2436 5600 850
XOU30/2304 XA 282304N 2493.4 2190 110 2378 2230 92 92 22 22 16 154 2464 5350 680
XOU40/2355 XA 402355N 2605.1 2190 118 2460 2250 60 60 33 33 16 161 2576 7000 1070
XOU40/2638 XA 402638N 2861.1 2492 118 2735 2540 104 104 26 26 16 177 2832 7300 1050
XOU45/2815 XA 452815N 3096.8 2640 127 2930 2700 84 84 33 33 20 153 3060 9500 1490
XOU45/2935 XA 452935N 3216.8 2760 127 3050 2820 84 84 33 33 20 159 3180 10000 1560
XOU50/3005 XA 503005N 3272.8 2820 138 3130 2880 104 104 33 33 18 180 3240 12100 1720
XOU45/3170 XA 453170N 3436.8 2995 127 3285 3055 92 92 33 33 20 170 3400 10600 1610
XOU50/3365 XA 503365N 3632.8 3180 138 3490 3240 116 116 33 33 18 200 3600 13100 1920
XOU50/3585 XA 503585N 3866.8 3400 138 3710 3460 124 124 33 33 18 213 3834 14500 2130
XOU50/3765 XA 503765N 4046.8 3580 138 3890 3640 128 128 33 33 18 223 4014 15200 2240
XOU50/4175 XA 504175N 4436.8 3970 138 4285 4030 144 144 33 33 20 220 4400 16800 2430

Drawings and other parameters ,pls contact us free, thanks
