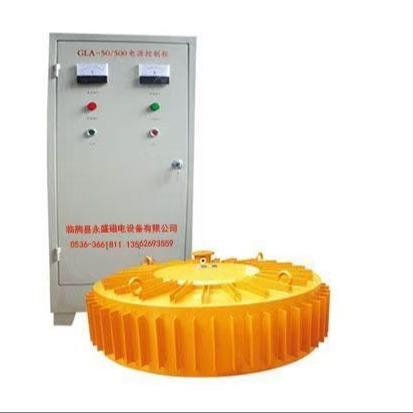

Fully Sealed Structure Magnetic Separator Machine Automatic Unloading Strong Insulating Properties
Fully Sealed Structure Magnetic Separator Machine Automatic Unloading Strong Insulating Properties
Specifications
Brand Name :
Emperor Shengfu
Model Number :
RCDB Series
Certification :
Quality and trustworthy enterprise certificate
Place of Origin :
China
Payment Terms :
T/T
MOQ :
1 set
Price :
Negotiate
Delivery Time :
2-15work days
Supply Ability :
80sets/month
Packaging Details :
Wooden case
Suspension Height :
≤550mm
Magnetic Field Strength :
≥ 70mT
Material Temperature :
≤ 70℃
Adapt to bandwidth :
≤ 2000mm
Belt Width :
≤ 1200mm
Material Thickness :
≤ 500mm
Application :
Iron removal in coal, mining, power, building materials, chemical and other industries
Type :
Electromagnetic
Description

Magnetic separation Detection Automatic unloading Strong insulating properties

Product Description:

It adopts a welded fully sealed structure, and the interior is cast with electrical resin, so that it has the advantages of dustproof, good waterproof performance, strong insulation performance, and high heat dissipation effect.

Under the premise of ensuring strong magnetic field suction performance (mainly IN), the number of coil turns is increased and the current density is reduced, thereby greatly reducing the heat source and controlling the temperature within 70, extending the service life of the iron remover.

When equipped with self-removal devices such as walking bicycles, it can adapt to working environments with special requirements and automatically unload iron.

Fully Sealed Structure Magnetic Separator Machine Automatic Unloading Strong Insulating Properties

Main technical parameters:

model

Adaptive

bandwidth

mm

Suspension

height

mm

Magnetic field

strength

≥mT

Material

thickness

≤mm

Excitation

power

≤kw

Adapt tobelt

speed

≤m/s

weight

kg

Dimensions

mm
A B DФ
RCDB-5 500 150 60 100 1 2.5 360 310 360 600
RCDB-6 600 180 60 120 1.6 520 310 370 700
RCDB-6.5 650 200 70 150 2 640 320 390 820
RCDB-8 800 250 70 200 3.9 950 320 390 980
RCDB-10 1000 300 70 250 5 1486 350 400 1030
RCDB-12 1200 350 70 300 7 2180 420 430 1100
RCDB-14 1400 400 70 350 9 2860 420 500 1420
RCDB-16 1600 450 70 400 12.5 4900 420 500 1650
RCDB-18 1800 500 70 450 17.5 7380 460 600 1800
RCDB-20 2000 550 70 500 19 8660 540 640 2100
