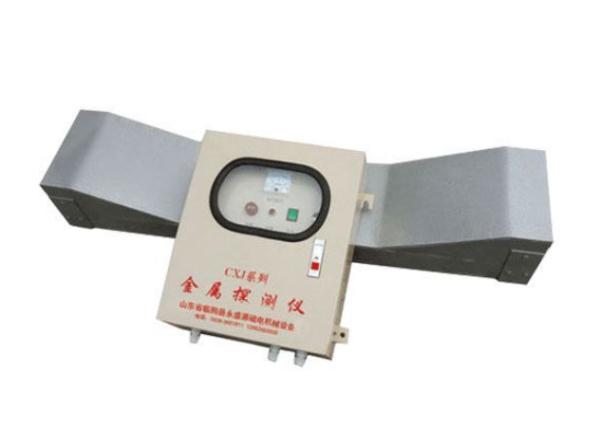

Customizable Belt Conveyor Metal Detectors For Bulk Materials CXJ Series Metal Detector
Customizable Belt Conveyor Metal Detectors For Bulk Materials CXJ Series Metal Detector
Specifications
Brand Name :
Emperor Shengfu
Model Number :
CXJ Series
Place of Origin :
China
Certification :
Quality Service Integrity Unit Certificate
MOQ :
1 set
Price :
Negotiate price
Packaging Details :
Wooden Case
Delivery Time :
2-15 work days
Payment Terms :
T/T
Supply Ability :
150 sets / month
Alarm Type :
Audible And Visual Alarm, Optional Automatic Rejection System
Conveyor Belt Width :
Customizable, Up To 2000mm
Type :
Industrial Metal Detector
Installation :
Mounted On The Conveyor Belt, Easy To Integrate Into Existing Production Lines
Sensitivity :
Sensitivity Debugging Quantitative
Detection Method :
Electromagnetic Induction
Control Panel :
Simple Operation Panel
Material :
Stainless Steel
Application :
Detect iron scattered on conveyor belts
Description

Product Description:

Introducing the Innovative CXJ Series Metal Detector

The CXJ series metal detector (also known as CXJ series metal detector) is designed specifically for detecting metals in magnetic and non-magnetic material belt conveyor systems. It can detect various types of metals present in industrial settings such as ferrous and non-ferrous metal mines, iron and steel plants, and sintering plants. This metal detector is especially useful in detecting magnetic ores that have a material grade below 70%, thanks to its sensor that features a window design without partition tape.

Main Components of the Metal Detector

The metal detector comprises of two main parts: a CNC box and a sensor. The CNC box has advanced digital processing technology that ensures stable performance and high detection sensitivity. The sensor is designed to accurately detect all kinds of metal debris that may be mixed in materials, such as iron, steel, manganese steel, and even stainless steel, copper, aluminum, and other metals. This solves the problem of using iron removers to remove large chunks of iron and other metals that may cause severe damage to the equipment.

Features of CXJ Series Metal Detector

The CXJ series metal detector has a variety of features that make it suitable for various industries. It has a quantitative sensitivity adjustment, high-sensitivity design that can detect super-large metal objects, and sound and light alarms. Additionally, it has a wide detection range and can accurately detect various types of metal debris ranging from iron, aluminum, stainless steel, to different types of alloys and metals. It also has a timing function and a control output that features one pair of relay contacts that are normally open, and one pair is normally closed.

Installation of the Sensor

The sensor is mounted on the belt frame, and the amplitude of the belt frame should be less than 0.5mm. If the amplitude exceeds 0.5mm, the sensor bracket should be installed separately. When the power supply voltage is unstable, a voltage stabilizer should be used to avoid any complications.

Applications:

The CXJ Series Belt Conveyor Metal Detectors are suitable for various product application occasions and scenarios. In the food processing industry, it can be used for detecting metal contaminants in various food products such as meat, fruits, and vegetables. In the pharmaceutical industry, it can detect metal particles in capsules, tablets, and other medicine forms. This system can also be used in packaging lines to ensure that no metal contaminants are present in the packaging materials.

The sensitivity of the CXJ Series Belt Conveyor Metal Detectors can be debugged quantitatively, ensuring the accuracy of detection. The system is made of stainless steel materials, which are durable and easy to clean. The control panel is designed with a simple operation panel, making it easy for operators to use. The conveyor belt width is customizable and can be up to 2000mm to meet different needs.

The CXJ Series Belt Conveyor Metal Detectors have received the Quality Service Integrity Unit Certificate from China, ensuring their high quality and reliability. The minimum order quantity is 1 set, and the price is negotiable. The product is packaged in a wooden case to ensure safe transportation, and the delivery time is 2-15 work days. Payment terms are T/T, and the supply ability is 150 sets/month. The operating temperature of the system is 0-40℃, making it suitable for various working environments.

Support and Services:

We offer a range of services to ensure that your Belt Conveyor Metal Detector is operating at peak performance, including installation, calibration, and maintenance. Our team of experienced technicians can provide on-site support or remote assistance as needed.

In addition, we offer training programs to help you and your staff understand how to use and maintain your Belt Conveyor Metal Detector. These programs can be tailored to your specific needs and can be conducted on-site or online.

FAQ:

Q: What is the brand name of the Belt Conveyor Metal Detectors?

A: The brand name of the Belt Conveyor Metal Detectors is Emperor Shengfu.

Q: What is the model number of the Belt Conveyor Metal Detectors?

A: The model number of the Belt Conveyor Metal Detectors is CXJ Series.

Q: What is the place of origin for the Belt Conveyor Metal Detectors?

A: The Belt Conveyor Metal Detectors are made in China.

Q: Is there a minimum order quantity for the Belt Conveyor Metal Detectors?

A: Yes, the minimum order quantity for the Belt Conveyor Metal Detectors is 1 set.

Q: What is the packaging for the Belt Conveyor Metal Detectors?

A: The Belt Conveyor Metal Detectors are packaged in wooden cases.

Q: What is the delivery time for the Belt Conveyor Metal Detectors?

A: The delivery time for the Belt Conveyor Metal Detectors is 2-15 work days.

Q: What are the payment terms for the Belt Conveyor Metal Detectors?

A: The payment terms for the Belt Conveyor Metal Detectors are T/T.

Q: What is the supply ability for the Belt Conveyor Metal Detectors?

A: The supply ability for the Belt Conveyor Metal Detectors is 150 sets per month.

Q: Is the Belt Conveyor Metal Detectors product certified?

A: Yes, the Belt Conveyor Metal Detectors product is certified with the Quality Service Integrity Unit Certificate.

Q: Can the price for the Belt Conveyor Metal Detectors be negotiated?

A: Yes, the price for the Belt Conveyor Metal Detectors can be negotiated.
