Product Description:

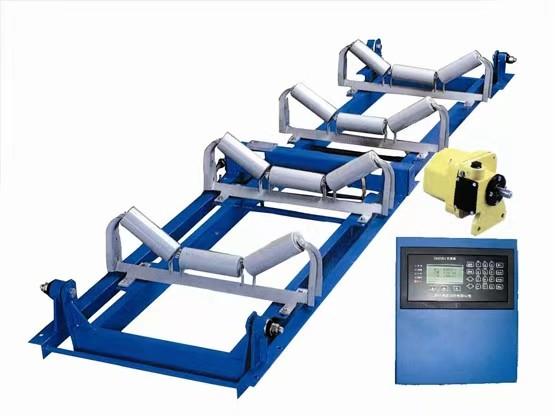

Electronic belt scales are widely used in industries to measure the weight and flow rate of materials on a conveyor belt. They consist of various components such as weighing, speed measuring, calculation, and communication parts.

This part includes a weighing sensor and a scale frame. The sensor is mounted on the frame, and when material passes through, it exerts a force on the sensor, generating an electrical signal proportional to the belt load.

The speed measuring part is comprised of a speed sensor that is typically connected to a large diameter speed measuring roller. It provides a series of pulses, where each pulse represents a unit of belt motion, and the frequency of the pulse is proportional to the belt speed.

The calculation part is made up of an integrator or weighing instrument that receives signals from the weighing and speed sensors. It obtains instantaneous flow value and accumulated weight value through integration operation, and displays them.

The integrator is equipped with optional networking, communication, and printing functions, and can be connected with other systems such as DCS. This allows for remote transmission and processing of data.

The electronic belt scale works on the principle of continuous dynamic measurement of materials on the conveyor belt. The metering roller detects the weight of the material on the belt, and the speed sensor detects the running speed of the belt. The integrator receives these signals, and through integral calculation, obtains the instantaneous flow rate and accumulated weight of the material, which is then displayed on the panel. This design allows the electronic belt scale to work continuously during the material conveying process without interrupting the flow of materials, thereby improving work efficiency.

Applications:

The Emperor Shengfu ICS Series Electronic Belt Scale is a high-quality product manufactured in China. It has been awarded the Quality Service Integrity Unit Certificate, ensuring its reliability and accuracy. The product has a minimum order quantity of 1 set, and the price is negotiable. It is packaged in a sturdy wooden case and has a delivery time of 2-15 work days. Payment terms are T/T, and the supply ability is 120 sets per month.

The Electronic Belt Scale is designed for dynamic weighing and continuous dynamic metering of materials. The product uses a speed ​​sensor to accurately measure the weight of materials moving on a conveyor belt. This weighing metering device has good stability and can accurately measure the weight of materials in harsh environments.

The Emperor Shengfu ICS Series Electronic Belt Scale is made of stainless steel material, making it durable and resistant to corrosion. It is suitable for on-site installation, making it easy to install and use in various production environments. The calibration method is automatic calibration, which can save time and improve efficiency.

Some of the product application occasions and scenarios for the Electronic Belt Scale are:

• Chemical plants: The Electronic Belt Scale can be used to measure the weight of chemicals moving on a conveyor belt, ensuring accurate metering and avoiding overloading.
• Mining industry: The Electronic Belt Scale can be used to weigh and meter materials in mining operations, such as coal, iron ore, and other minerals.
• Food industry: The Electronic Belt Scale can be used in food production to measure the weight of ingredients moving on a conveyor belt, ensuring accurate measurements and minimizing waste.
• Paper industry: The Electronic Belt Scale can be used to weigh and meter materials in paper production, such as pulp, wood chips, and other materials.

The Emperor Shengfu ICS Series Electronic Belt Scale is a reliable and efficient weighing metering device that is suitable for a wide range of applications. Its speed ​​sensor and continuous dynamic metering of materials make it an ideal choice for industries that require accurate and reliable measurement of materials.

Support and Services:

The Electronic Belt Scale is a high-precision weighing equipment that provides accurate and reliable measurements for bulk materials. Our product technical support and services include:

• Installation and commissioning services by our trained technicians
• On-site calibration and verification to ensure accurate weighing
• 24/7 remote technical support to quickly resolve any issues
• Maintenance and repair services to keep your equipment running smoothly
• Training and consultation services to help you optimize your weighing system

Our goal is to provide exceptional support and services to ensure the best performance and longevity of your Electronic Belt Scale.

FAQ:

Q1: What is the brand name of this belt scale?

A1: The brand name of this belt scale is Emperor Shengfu.

Q2: What is the model number of this belt scale?

A2: The model number of this belt scale is ICS Series.

Q3: Where is this belt scale manufactured?

A3: This belt scale is manufactured in China.

Q4: What is the certification of this belt scale?

A4: This belt scale has a Quality Service Integrity Unit Certificate.

Q5: What is the minimum order quantity for this belt scale?

A5: The minimum order quantity for this belt scale is 1 set.

Q6: Can the price be negotiated?

A6: Yes, the price for this belt scale can be negotiated.

Q7: How is this belt scale packaged?

A7: This belt scale is packaged in a wooden case.

Q8: What is the delivery time for this belt scale?

A8: The delivery time for this belt scale is between 2-15 work days.

Q9: What are the payment terms for this belt scale?

A9: The payment terms for this belt scale are T/T.

Q10: What is the supply ability of this belt scale?

A10: The supply ability of this belt scale is 120 sets per month.
