Specifications
Brand Name :
YT Mica / YiTian Mica
Model Number :
YT Mica / Non-halogen Flame retardant tape for cables & wires
Certification :
ROHS/ SGS
Place of Origin :
China
MOQ :
1000KGS
Payment Terms :
L/C, T/T
Delivery Time :
5-10 days
Packaging Details :
by pad, by spool
Material :
Cable Material
Type :
Insulation Material
Flame Retardant :
Yes
Color :
Black
Accessory :
Cable Accessory
Temperature Range :
-40°C to 105°C
Durability :
High
Waterproof :
Yes
Chemical Resistant :
Yes
Usage :
Protective Coating
Application :
Electrical Cables
Size :
Customized
Uv Resistant :
Yes
Description

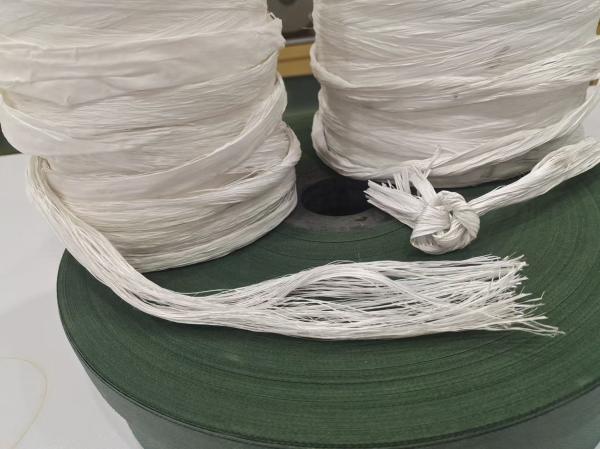

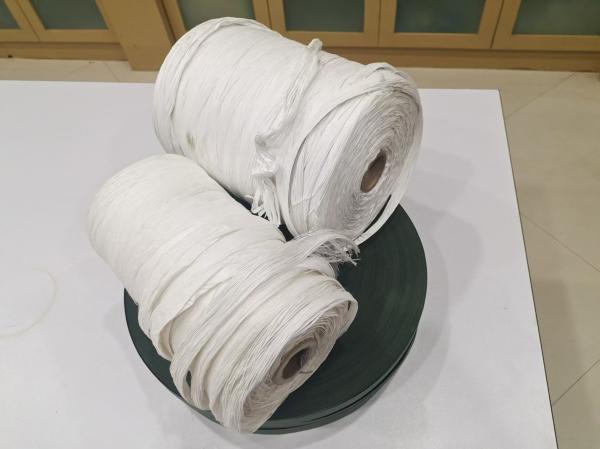

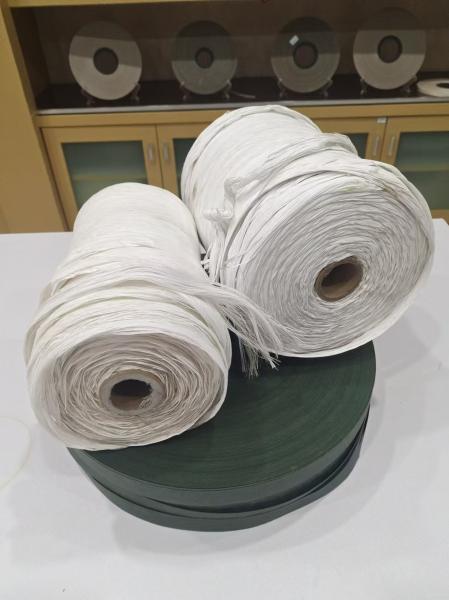

White Color Filling Rope PP While Rope As Filling Material For Cables And Wires.

Product ID PPDBCS

The commonality of ordinary white filling rope includes the characteristics of halogen-free, light specific gravity, and rounded cable filling effect. It is a more commonly used filling on the market

Products.

It can be widely used in non-hygroscopic filling technical requirements such as wires and cables, control cables, cross-linked cables, high and low voltage power cables, etc.

properties Data Sheet
performanc There should be no impurities, no pollution, uniform color, the color is white, the mesh filling rope can be lightly pulled into a net, and the grid is uniform, and there is no powder loss.
categories type diameter grammage Breaking strength
mm g/m N

single

0.3# 1.3

±0.3

1.8

±0.5

≥30
0.5# 1.5 2.0 ≥40
1# 2.0 2.5 ≥50
2# 2.5 4.0 ≥60
4# 3.0 6.0

±1.0

≥80
6# 3.5 8.0 ≥100
8# 4.0 10 ≥120
10# 4.5 12 ≥160
12# 5.0 14

±2.0

≥180
14# 5.5 16 ≥230
16# 6.0 18 ≥250
18# 6.2 20 ≥280
20# 7 24

±3.0

≥300
24# 7.2 28 ≥400
26# 7.5 30 ≥450
30# 8.0 34 ≥480

Plied

Multi-stranded

Φ9

±0.5

≤40

≥550

Φ10 ≤50
Φ11 ≤60
Φ12 ≤70
Φ13

±1.0

≤80
Φ14 ≤100
Φ15 ≤110
Φ16 ≤120
Φ18 ≤155
Environmental performance Data sheet unit Test Standard

FAQ

What are your main products?
1,YT MICA is engaged in the R&D, production, sales and service of fire resistant materials and accessory for cables and wires, high-clean materials, flame-retardant materials and other technologies, providing industry users with solutions based on "fire-resistant, flame-retardant, low-smoke and halogen-free". We provide ire resistant materials and accessory for cables and wires.

2.What about the product quality and which certificate do you have?
We have IATF16949,IS09001,1S014001 and ROHS certificate. We have strict quality control management system. Proceed Volume production exactly according to the approved sample quality and the technical data sheet requested by customer. We control internally every step of IQC,IPQC,OQC.


3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements.

4. What about your after-sale service?

We fully guarantee our product quality and will provide free technical guidance on operations.

System certifications obtained:
ISO9001 Quality Management System Certificate
ISO14001 Environmental Management System Certificate
ISO45001 Certificate of Occupational Health&Safety Management
IATF 16949 Quality Management System certificate
SA8000 Social Responsibility Management System Certificate

Yitian Mica has obtained 5 invention patents, 21 practical patents, 20 software registration rights, and 3 trademarks. More intellectual property rights has been applied for verification.


YTMICA 5 invention patents:
a mica insulation material for battery cells and its processing & application.
a squeeze-resistant fireproof mica tape for power batteries and its processing & application.

high-temperature resistant mica tape & mica thermal insulation parts and their production methods.
a processing method for fire-resistant mica tape.
a fire-resistant insulation tape for optical cables.
