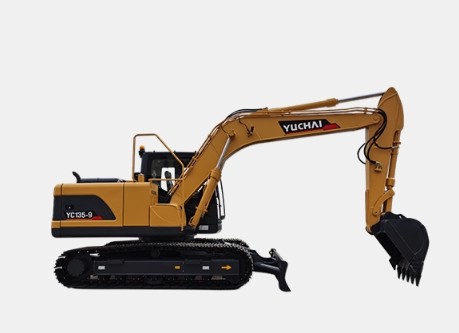

Yuchai YC135 Compact Crawler Mini Excavators Hydraulic Crawler Excavator
Yuchai YC135 Compact Crawler Mini Excavators Hydraulic Crawler Excavator
Specifications
Place of Origin :
China
Brand Name :
YuChai
MOQ :
1 PC
Packaging Details :
Custom, 1-8 units/40HQ
Delivery Time :
1-90 days
Payment Terms :
L/C, DA, DP, T/T
Product Name :
YUCHAI Mini Excavator
Moving Type :
Crawler Excavator
Color :
Customers Requirements
Application :
Building\Agriculture\Construction
Condition :
New
Machinery Test Report :
Provided
Price :
USD1000-USD200000/unit
Supply Ability :
1,000 units/month, 10,000 units/year
Description

Yuchai YC135 Excavator

Powerful Yuchai engine

YC135-9 is equipped with an engine independently developed by Yuchai, which has strong torque, sufficient power reserve, low fuel consumption, fast response and better fuel efficiency.

International brand hydraulic system

The tonality of compound movements is smooth. The hydraulic valve is stable, efficient and reliable.

Comfortable driving experience

The YC135-9 features a spacious cab and offers a broad driving vision. Equipped with suspension shock-absorbing seats, the year-on-year efficiency of air conditioning and refrigeration has increased by 18%, contributing to an overall comfortable operating experience.

Yuchai YC135 Compact Crawler Mini Excavators Hydraulic Crawler Excavator

YUCHAI Little Dig

YUCHAI Heavy Industry co., Ltd. was founded in 1989. It is the first excavator enterprise in China to produce micro-excavators and sell them to the world. It is the largest small excavator production and export base in China and a state-level high-tech enterprise.

More than 30 years of innovation and development, to ensure high quality customers!

Not afraid of harsh environment

Yuchai excavator YC135-9 has excellent performance, stable hydraulic system and Yuchai engine, so that Yuchai excavator can cope with various working conditions, including a series of tests of high temperature and high humidity, high strength in plateau, low temperature and severe cold environment.

Brand new cab

YC135-9 has a spacious cab and a wide driving vision; Full-color large screen, higher resolution, better color saturation, larger screen and easier recognition. With suspension shock-absorbing seat, it is suitable for different bodies or sitting positions to effectively relieve fatigue.

Yuchai YC135 Compact Crawler Mini Excavators Hydraulic Crawler ExcavatorYuchai YC135 Compact Crawler Mini Excavators Hydraulic Crawler Excavator

Full pilot control

The driving experience is more comfortable and the excavator action is more smooth

Sales champion model, excavator widely praised by customers.

YC135-9 is a new-generation excavator product newly upgraded by Yuchai Heavy Industry, which has a wide range of working conditions. Its outstanding digging performance is suitable for high-strength working conditions such as digging and crushing soil and rocks, and its moderate tonnage is also suitable for flexible operations such as urban construction and rural reconstruction. It is the "king of all-around" of the same class.

Easy maintenance

While the whole hood is kept, two openable side doors are added, and the three filters are centralized, so that all maintenance and inspection points are within reach.

All the main hydraulic hoses are arranged in the direction of the working device, which improves the convenience of detection and maintenance.

Yuchai YC135 Compact Crawler Mini Excavators Hydraulic Crawler Excavator

Specifications

Excavator Model YC135
Basic parameter
Machine weight kg 13800 / 14740 (with dozer blade)
Bucket capacity m³ 0.52
Width of bucket mm 934
Performance parameter
Engine model Yuchai 4DK / Cummins QSF 3.8
Engine power kW/rpm 86/2200
Max. Gradeability 35°
Max. digging force of arm kN 75.8
Max. digging force of bucket kN 106
Traveling speed km/h 5.0/3.1
Max. hauling force kN 121
Slewing speed of platform rpm 11
Operating parameter
Max. digging height mm 8335
Max. digging depth mm 5257
Max. digging radius mm 8070
Max. digging radius on ground level mm 7933
Max. dumping height mm 5896
Min. slewing radius mm 2561
Max. vertical digging depth mm 4380
Max. dozer balde heigh mm --
Mzx. dozer blade depth mm --
Transportation dimension
Overall length mm 7784
Overall width mm 2600
Overall height mm 2853
Other Parameter
Width of undercarriage mm 2600
Length of track mm 3695
Width of track mm 500 / 600
Height between undercarriage and ground mm 415
Height between platform and ground mm 919
Platform tail turning radius mm 2315
Length to center of rollers mm 2950
Fuel tank capacity L 270
Hydraulic oil tank capacity L 105
Track gauge 2950
Working Pressure Mpa 34.3
Ground Contact Pressure kPa --
Arm length mm 2250
Boom length mm 4600
Steering head angle
Flow rate L/Min 2×132.7
