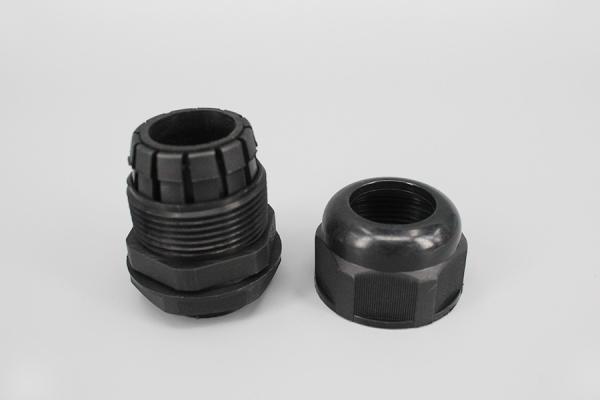

MG12 IP68 waterproof connector strain relief gray black nylon Watertight cable glands with certificate
MG12 IP68 waterproof connector strain relief gray black nylon Watertight cable glands with certificate
MG12 IP68 waterproof connector strain relief gray black nylon Watertight cable glands with certificate
MG12 IP68 waterproof connector strain relief gray black nylon Watertight cable glands with certificate
MG12 IP68 waterproof connector strain relief gray black nylon Watertight cable glands with certificate
MG12 IP68 waterproof connector strain relief gray black nylon Watertight cable glands with certificate
MG12 IP68 waterproof connector strain relief gray black nylon Watertight cable glands with certificate
MG12 IP68 waterproof connector strain relief gray black nylon Watertight cable glands with certificate
MG12 IP68 waterproof connector strain relief gray black nylon Watertight cable glands with certificate
MG12 IP68 waterproof connector strain relief gray black nylon Watertight cable glands with certificate
Specifications
Brand Name :
DEMOELE,ODM,OEM
Model Number :
MG12
Certification :
CE
Place of Origin :
China
MOQ :
10000
Price :
USD 0.01-0.1 PCS
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
10000000 PCS per day
Delivery Time :
5-10 work days,according to your order quantity
Packaging Details :
100-1000pcs/bag,or according to your requires.
Type :
MG12
Color :
Black,Grey,or as your requires
Material :
Nylon,94V-2 or PP
IP degree :
IP68
Description

Material:Nylon PA66(Flammability UL94V-2)for A,C,E,F parts(accept to customize flammability UL 94V-0 ).EPDM rubber for B,D parts(accept to customize resist high temperature rubber,resist strong acid/alkali,etc)

IP degree:IP68

Working temperature:-40℃ to 100℃

Feature:The special design for claw and seal nut can hold cable steady,the usage range of cable diameter wider,it’s harder to pull cable out.Resistant to salt water,weak acid,alcohol,oil,grease,etc.

Colours:Black,Grey,other color available upon request.

MG12 IP68 waterproof connector strain relief gray black nylon Watertight cable glands with certificate

Specification

Remark:Special specification can be customized.
Type Cable diameter (mm) Thread diameter C1(mm) Thread length C2 (mm) Wrench diameter (mm)
MG12 4.5-8 12 9 19 Standard type
MG16 6-10 16 15 22
MG20 9-14 20 15 27
MG25 13-18 25 15 33
MG32 18-25 32 15 41
MG40 24-30 40 20 50
MG50 30-40 50 23 62
MG63 40-50 63 24 75
MG12 3-5.3 12 9 19 Rubber ring thicken type
MG16 4-7 16 15 22
MG20 6-11 20 15 27
MG25 10-16 25 15 33
MG32 15-22 32 15 41
MG40 20-25 40 20 50
MG50 26-32 50 23 62
MG63 36-48 63 24 75

Details of product

MG12 IP68 waterproof connector strain relief gray black nylon Watertight cable glands with certificate

MG12 IP68 waterproof connector strain relief gray black nylon Watertight cable glands with certificate
