Industrial Wheel Type Sand Washing Machine Seal Structure Convenient Operate
Industrial Wheel Type Sand Washing Machine Seal Structure Convenient Operate
Industrial Wheel Type Sand Washing Machine Seal Structure Convenient Operate
Industrial Wheel Type Sand Washing Machine Seal Structure Convenient Operate
Industrial Wheel Type Sand Washing Machine Seal Structure Convenient Operate
Industrial Wheel Type Sand Washing Machine Seal Structure Convenient Operate
Industrial Wheel Type Sand Washing Machine Seal Structure Convenient Operate
Industrial Wheel Type Sand Washing Machine Seal Structure Convenient Operate
Specifications
Brand Name :
Yuhong
Model Number :
XSD2610
Certification :
CE,ISO
Place of Origin :
Henan,China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30sets
Delivery Time :
10-15working days
Packaging Details :
International standard packing Seaworthy packing. Standards in container, spare parts in export wooden case.
Wheel size :
Φ2600×1000
Rotary speed :
1-2r/min
Max feeding size :
10mm
Capacity :
20-50t/h
Motor power :
5.5kw
Color :
As requirement
Description

XSD2610 High Quality Discount Price Wheel Type Washing Machine with good after sale

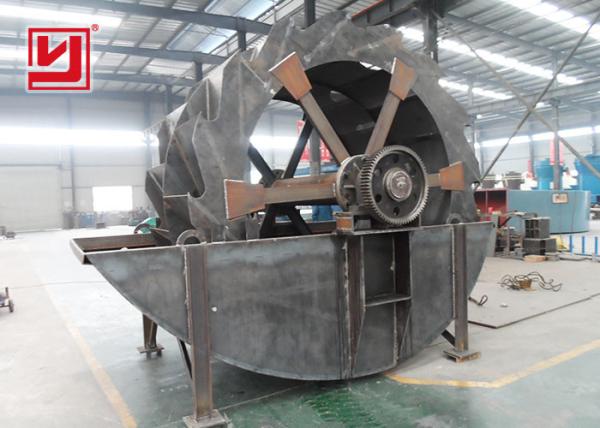

XSD series sand washing machine is a kind of wheeled washing equipment, and can clean and separate the dust and powder from the sand. Its new seal-structure and reliable driving device can make sure the cleaning effect and a kind of high efficiency sand washing equipment matched with the sand making machine.

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.

Model XSD2610 XSD2816 XSD3016 XSD3620
Wheel size (mm) Φ2600×1000 Φ2800×1600 Φ3000×1600 Φ3620×2000
Rotary speed (r/min) 1-2 1-2 0.8-1.5 0.8-1.2
Max feeding size (mm) ≤10 ≤10 ≤10 ≤10
Capacity (t/h) 20-50 30-70 50-120 80-150
Motor power (kw) 5.5 7.5-11 11-15 15-18.5
Weight (kg) 4300 5600 8100 9900
Overall dimension (mm) 3255×1982×2690 3540×3000×2880 3845×3000×3080 4456×3479×3688
