Industrial Rotary Drum Dryer Machine , Rotary Drying Equipment Energy Saving
Industrial Rotary Drum Dryer Machine , Rotary Drying Equipment Energy Saving
Industrial Rotary Drum Dryer Machine , Rotary Drying Equipment Energy Saving
Industrial Rotary Drum Dryer Machine , Rotary Drying Equipment Energy Saving
Industrial Rotary Drum Dryer Machine , Rotary Drying Equipment Energy Saving
Industrial Rotary Drum Dryer Machine , Rotary Drying Equipment Energy Saving
Industrial Rotary Drum Dryer Machine , Rotary Drying Equipment Energy Saving
Industrial Rotary Drum Dryer Machine , Rotary Drying Equipment Energy Saving
Specifications
Brand Name :
Yuhong
Model Number :
φ1200*12000mm
Certification :
CE ISO
Place of Origin :
Henan, China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
15-30sets/month
Delivery Time :
10-15working days
Packaging Details :
International standard packing Seaworthy packing. Standards in container, spare parts in export wooden case.
Capacity :
2-6t/h
Input moisture :
10-40%
Output moisture :
1-10%
Max feed-in temperature :
700℃
Drum diameter :
1200mm
Drum length :
12000mm
Warranty :
12months
Color :
As requirement
Applicable Industries: :
Building Material Shops, Farms, Energy & Mining
Heating source :
Gas or coal or electric or oil
Description

Rotary dryer for drying different kinds of raw materials with good quality low factory price

Production Description

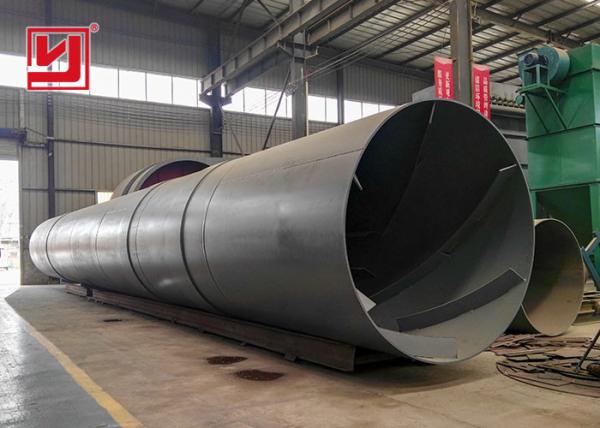

Rotary dryer, also named as rotary drum dryer and rotary drying machine, is energy-saving and high efficient drying equipment. Rotary dryer is widely used for drying materials in industries like cement, mine, building materials, chemistry, food and fertilizer, etc, raw material such as: sand, coal, slag, slurry, wood chips, etc.This rotary drying machine comes with thermocouples on the feeding and discharging device to control the temperature.

Processed Materials: Manure, Sand, Coal,Slag, compound fertilizer, straw briquette fuel, granular fuel and saw dust briquette.

Applications: Industries of metallurgy, chemical engineering, construction materials and mining.

Capacity: 1-50tones per hour

Heating Fuel: Coal, Gas, Oil, Biomass fuels, Wood,etc.

Detailed Image

Technical Parameter

Model Gradient Rotation speed Max feed-in gas temperature Power Output Weight
(%) (r/min) (℃) (kw) (t/h) (t)
600×6000 3-5 3-8 700 3 0.5-1.5 2.9
800×8000 3-5 3-8 700 4 0.8-2.0 3.5
800×10000 3-5 3-8 700 4 0.8-2.5 4.5
1000×10000 3-5 3-8 700 5.5 1.0-3.5 5.6
1200×10000 3-5 3-8 700 7.5 1.8-5 14.5
1200×12000 3-5 3-8 700 11 2-6 14.8
1500×12000 3-5 2-6 800 15 3.5-9 17.8
1800×12000 3-5 2-6 800 18 5-12 25
2200×12000 3-5 1.5-6 800 18.5 6-15 33
2200×18000 3-5 1.5-6 800 22 10-18 53.8
2200×20000 3-5 1.5-6 800 30 12-20 56
2400×20000 3-5 1.5-5 800 37 18-30 60
3000×20000 3-5 1.5-5 800 55 25-35 78
3000×25000 3-5 1.5-5 800 75 32-40 104.9

Customer Case

Paking and Delivery

1. By railway to Mid Asia,Russia,Belaus and so on.

2. By sea to the rest countries.

3. Stnadard export packing no damage to the machines and containers

Certificate Show
