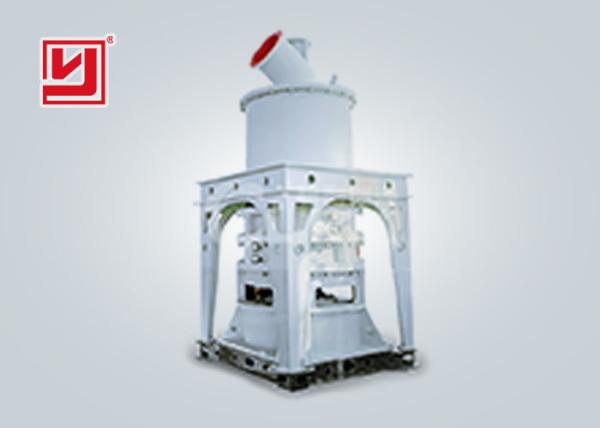

High Efficiency Ultra Fine Powder Grinding Machine Vertical Type 0.7-7t/h
High Efficiency Ultra Fine Powder Grinding Machine Vertical Type 0.7-7t/h
High Efficiency Ultra Fine Powder Grinding Machine Vertical Type 0.7-7t/h
High Efficiency Ultra Fine Powder Grinding Machine Vertical Type 0.7-7t/h
High Efficiency Ultra Fine Powder Grinding Machine Vertical Type 0.7-7t/h
High Efficiency Ultra Fine Powder Grinding Machine Vertical Type 0.7-7t/h
High Efficiency Ultra Fine Powder Grinding Machine Vertical Type 0.7-7t/h
High Efficiency Ultra Fine Powder Grinding Machine Vertical Type 0.7-7t/h
Specifications
Brand Name :
Yuhong
Model Number :
HGM100
Certification :
CE, ISO, BV
Place of Origin :
Henan, China
MOQ :
1set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
25-30Days
Capacity :
0.7-7t/h
Mesh :
325-2500
Max feeding size :
10mm
Condition :
New
Warranty :
12 months
Color :
Up to you
Price :
Negotiation
Description

high efficiency new condition ultrafine powder mill fine powder grinding machine

Processed Materials:Kaolin, limestone, calcite, talcum, barite, pottery clay, dolomite, bentonite, mica, illite,vermiculite,sepiolite, diatomite, graphite, alunite, floatstone,etc

Applications:Chemical Industry, paint, cosmetics, medicine, food additive,etc.

Technical Data

Model Average Diameter No. of Ring No. of Roller Speed of Main Shaft Max Feeding Size Size of Finished Products Capacity Dimensions Whole Machine Power
(L×W×H)
(mm) (r.p.min) (mm) um mesh (t/h) (m) (kw)
HGM90 930 3-4 24-27 200-220 10 5-47 325-2500 0.6-6.5 14.7*4.8*7.2 185-204
HGM100 1035 3 27 180-200 10 5-47 325-2500 0.7-7 18*4.6*8.6 263-290
HGM100A 1035 4 34-36 180-200 10 5-47 325-2500 1-8.5 18*4.6*8.6 263-290
HGM1253-8 1300 4 40-44 135-155 10 5-47 325-2500 1.5-12 14*9*10.25 380-430

Working Principle

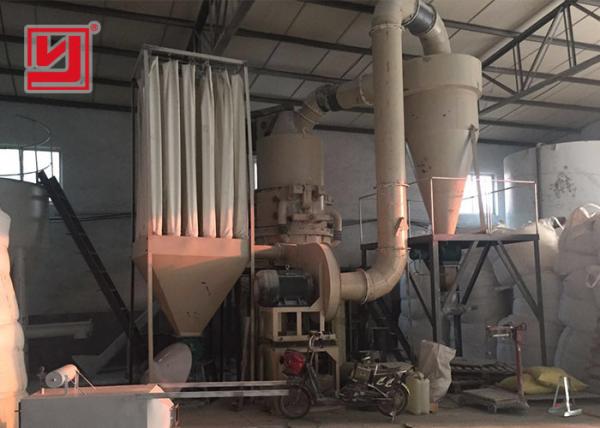

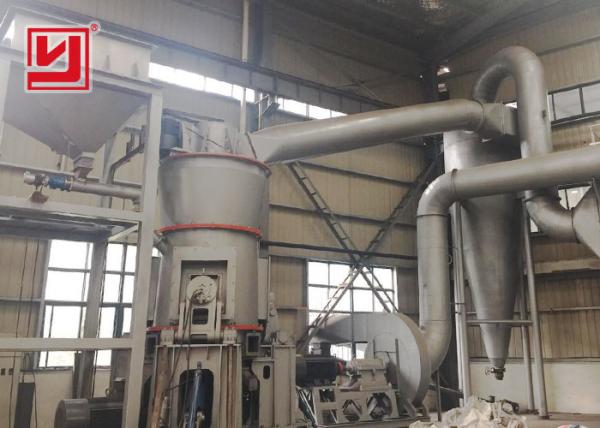

The motor drives the main shaft and every turnplate through the reducer. The reducer drives dozens of rollers to rotate against race way of ring through pin. Small material crushed by hammer crusher is transported into hopper by elevator and then vibrating feeder shall feed material to the central part of upper turnplate evenly. The material falls to circle under the centrifugal force and comes down to raceway of ring to be crushed into powder. After grinded in the first race way, the material goes to the second and third turnplate. The blower inhales the external air into the mill and carries the powder after third turnplate into powder-separator. Turbine in the separator makes the coarse powder drop down and regrind, and the fine powder shall go into cyclone powder collector together with air current and go down through discharge valve as final product; at the same time air current with a little dust goes out through blower and muffler after purified by filter.

Features
1. High fineness and flexible adjustment
The product size can be adjusted between 325 mesh to 2500 mesh (47-5micron).
2. Environmentally friendly
The application of pulse dust collector and muffler greatly reduce dust pollution and noise.
