Specifications
Brand Name :
Yuhong
Model Number :
3R2115
Certification :
CE, ISO, BV
Place of Origin :
Henan, China
MOQ :
1set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
25-30 Days
Price :
Negotiation
Supply Ability :
15-30sets per month
Packaging Details :
seaworthy and long distance transportation sustainable packaging
Type :
Yuhong Raymond mill
Application :
Cement, coal, metallurgy, etc..
Name :
Raymond grinding mill
Color :
As requirement
Usage :
Material grinding
Main motor power :
15kw
Description

High efficiency raymond grinding mill industrial mining grinding machine

Technical Parameter:

Model Max Feeding Size Finished Products Size Shift Output Inner Diameter of Ring Diameter of Roller Height of Roller and Ring Main Motor Power Dimensions Weight
(L×W×H)
(mm) (mm) (t/h) (mm) (mm) (mm) (kw) (mm) (kg)
3R2115 15 0.125-0.044 1-18 6460 210 150 15 4500*2800*5800 3600
3R3016 15-25 0.125-0.044 3-30 910 300 160 30 7500*4500*5000 7000
4R2716 15-25 0.125-0.044 3-36 830 270 160 22 5970*4000*5000 3900
4R3016 15-25 0.125-0.044 3-36 910 300 160 30 7500*4500*6200 7500
5R4119 30 0.125-0.044 6-75 1280 410 190 75 7850*8000*9700 25700
6R4525 30 0.125-0.044 10-120 1770 450 250 132 8850*10500*11000 47000

Working Principle:

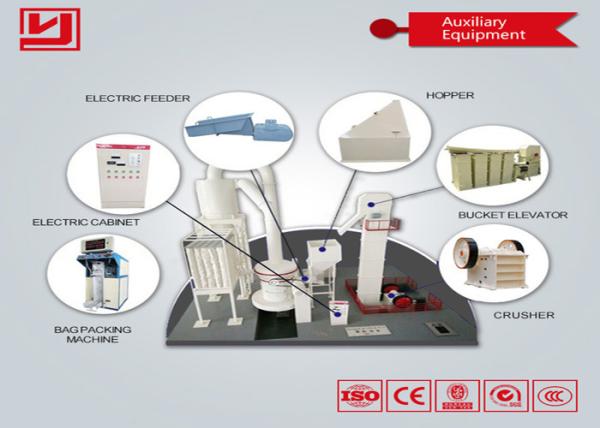

Firstly, raw material is crushed by jaw crusher to the size required, then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.

Advantages:

1. Classifier: Size of final product can be 0.613mm (30mesh) –0.033mm (425mesh). Some can reach the fineness of 0.013mm (1000 mesh).

2. Grinding device: The multi-class seals are adopted to keep the grinding equipment tightly closed.

3. Spacer protective measures: Mainframe is under protection, easy to be replaced, maintenance cost is reduced.

4. Spring strengthens grinding force: Compared with other mills, its capacity increases by 10%-20% under the same powder condition. compression force of rollers to material improve 800-1200kgf under the force of high-pressure spring.

5. Blower: Enhancing fan configuration and frequency conversion speed can be based on features of different materials, fineness, production requirements so as to efficiently adjust the air volum, achieve the best running state and reduce the energy consumption.

6. Pulse dust collector: Dust removal effect reaches the national powder emission standards; According to customers' actual demand, pulse bag filter can also be used, thus achieving rapidly automatic dust removal, and dust removal efficiency is higher.
