Mechanical Industry Compressed Air Filter
Mechanical Industry Compressed Air Filter
Mechanical Industry Compressed Air Filter
Mechanical Industry Compressed Air Filter
Mechanical Industry Compressed Air Filter
Mechanical Industry Compressed Air Filter
Mechanical Industry Compressed Air Filter
Mechanical Industry Compressed Air Filter
Mechanical Industry Compressed Air Filter
Mechanical Industry Compressed Air Filter
Mechanical Industry Compressed Air Filter
Mechanical Industry Compressed Air Filter
Specifications
Model No. :
YD025
Material :
Aluminum Alloy
Housing Serve Lige :
15 Years
Element Serve Life :
6000~8000 Hours
Filtration Performance :
From 5 μm To 0.01μm
Maxi. Operate Pressure :
1.0mpa
Operate Temperature :
1.5~80ºc
Connection :
Rc3/4"
Flow Rate :
1.5m³/Min
Resistance Corrosion :
Inside And Outside
Parts :
Dp Indicator, Auto Drain, Sight Glass
Diversion Fin Design On Element Top Cap :
Less Pressure Loss
Pressure Loss :
About 0.25 Bar
Bleed Valve :
Available
Color :
Red
OEM & ODM Service :
Yes
Trademark :
Yuka
Transport Package :
Brown Inner Box & Cardboard
Specification :
Dimension: 89x 79x 246mm
Origin :
China
HS Code :
8421399090
Clapboard :
Without Clapboard
Filter Number :
1
Medium Material :
Fiberglass
Efficiency :
F5
Filtration Grade :
Medium Filter
Type :
Cartridge Filter
Place of Origin :
China
Brand Name :
Yuka
Price :
Negotiable
Packaging Details :
Box Package
Delivery Time :
3-7working days
Payment Terms :
L/C,T/T
MOQ :
50pcs
Supply Ability :
300,000pcs/month
Description
Product Description


Why we should choose efficiency compressed air treatment?
Compressed air purification equipment must deliver uncompromising performance and eliability whilst providing the right balance of air quality with the lowest cost of operation. Many manufacturers offer products for the filtration and purification of contaminated compressed air, which are often selected only upon their initial purchase cost, with little or no regard for the air quality they provide, the cost of operation throughout their life or indeed their environmental impact. When purchasing purification equipment, delivered air quality, the overall cost of ownership and the equipment's environmental impact must always be considered.

Product Overview
Commodity Compressed Air Filter
Model YD025
Flow rate 1.5m³/min
Element grade 5μm/1μm /0.01μm/0.001mg/m³
Working pressure 143psi g
Working temperature 1.5℃~80℃
Material Aluminum Alloy
Color of housing Red
Trade term EXW & FOB SHENZHEN
Package Internal Box & External Carton
Warranty 15 years for filter housing, 4000-6000 hours under rated working conditions for Filter Element



7 Grades Filter Element: PF/AO/AA/AX/ACS/AR/AAR
PF AO AA AX ACS AR AAR
As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w). High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w) Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w) Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w) Dust particles whose diameter more than 1μm can be removed Dust particles whose diameter more than 0.01μm can be removed


Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g).
For application in other working pressure, please refer to the correction factors.
Model Pipe size Flow rates Dimension (mm)
L/S m3/min scfm W(Width) D(Depth) H(Height) A B C(clearance for housing)
YD017 RC1/2" 16.7 1.0 35.3 89 79 246 40 186 118
YD025 RC3/4" 25.0 1.5 53.0 89 79 246 40 186 118
YD030 RC1/2" 30.0 1.8 63.6 89 79 280 40 220 158
YD035 RC3/4" 33.3 2.0 70.6 89 79 280 40 220 158
YD058 RC3/4" 46.7 2.8 98.9 120 110 377 55 276 195
YD068 RC1" 60.0 3.6 127.1 120 110 377 55 276 195
YD080 RC1" 80.0 4.8 169.5 120 110 477 55 377 290
YD145 RC2" 120.0 7.2 254.2 120 110 477 55 377 290
YD220 RC1-1/2" 200.0 12.0 423.7 162 151 676 64 566 480
YD260 RC2" 233.3 14.0 494.4 162 151 676 64 566 480
YD330 RC2" 267.2 16.0 564.8 162 151 984 64 875 780
YD360 RC2-1/2" 317.3 19.0 670.7 162 151 984 64 875 780
YD405 RC2-1/2" 367.4 22.0 776.6 200 189 757 78 634 560
YD430 RC3" 467.6 28.0 988.4 200 189 1012 78 634 560
YD620 RC3" 620.0 37.2 1313.6 200 189 1012 78 889 780
Technical requirements Maximum operating pressure: 10 barg Operating temperature: 1.5°C~80°C.
Pressure Barg 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Psig 15 29 44 59 73 87 100 116 131 145 160 174 189 203 219 232
Correction factor 0.38 0.53 0.65 0.76 0.85 0.93 1.00 1.07 1.13 1.19 1.23 1.31 1.36 1.41 1.46 1.51

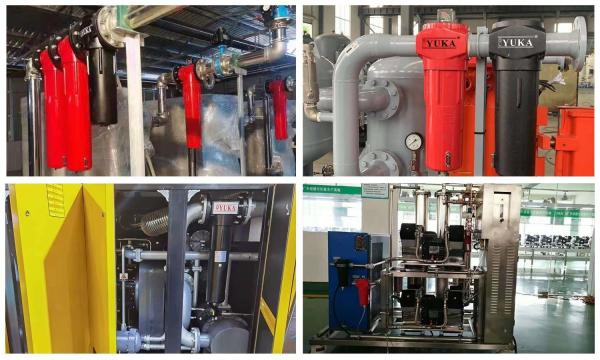

Product Application
Mechanical Industry Compressed Air Filter
YUKA Certificates
Mechanical Industry Compressed Air Filter


YUKA Patents
Mechanical Industry Compressed Air Filter


YUKA Factory
Mechanical Industry Compressed Air Filter

YUKA Facility
Mechanical Industry Compressed Air Filter

YUKA in Shanghai ComVac Asia & Hannover Messe Exhibition
Mechanical Industry Compressed Air Filter


YUKA Delivery

Mechanical Industry Compressed Air Filter

YUKA service:
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty

Q:Why choose us?
a. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.

Frequently Asked Questions:
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.

Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.

Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.

Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.

Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
