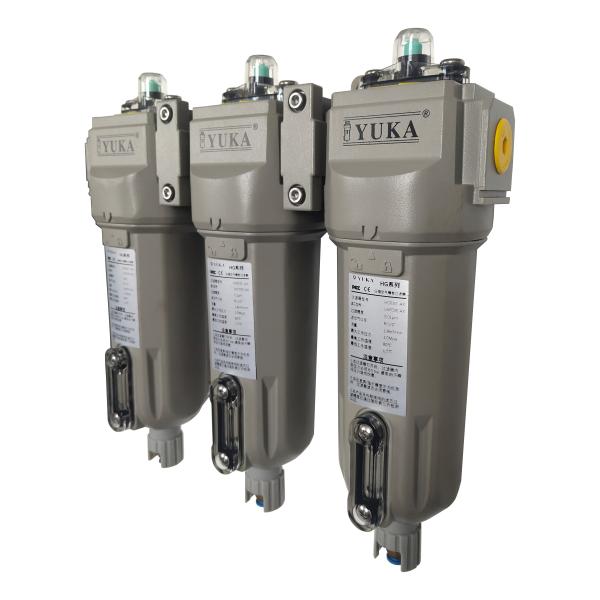

High Efficiency Activated Carbon Air Filter
High Efficiency Activated Carbon Air Filter
Specifications
Model No. :
HG080
Element Serve Life :
6000~8000 Hours
Clapboard :
Without Clapboard
Medium Material :
Fiberglass
Type :
Cartridge Filter
Material :
Aluminum Alloy
Housing Serve Lige :
15 Years
Filtration Performance :
From 5 μm To 0.01μm
Operate Temperature :
1.5~80ºc
Transport Package :
Brown Inner Box & Cardboard
Filtration Efficiency :
99.99%
Element Material :
Sodium Borosilicate Glass Fiber
Maxi. Operate Pressure :
1.0 Mpa
Filtration Grade :
Ulpa Filter
Connection :
Rc1"
Element Design :
Without Tie-Rod
Parallel Design :
Available
Sight Glass :
Two
Flow Rate :
4.8 M³/Min
Specification :
Dimension: 133x 120x 492mm
Place of Origin :
China
Brand Name :
Yuka
Price :
Negotiable
Packaging Details :
Box Package
Delivery Time :
3-7working days
Payment Terms :
L/C,T/T
MOQ :
50pcs
Supply Ability :
300,000pcs/month
Description
Product Description

How to choose right filter for Your Air Compressor System?

When you’re working with air compressors, air purification and filtration is an critical part of maintenance. Compressed Air Filters play an important role in your industrial air compressor system. Choosing the right filter not only increases the efficiency of your unit, but it can also reduce energy costs and protect your employees from harmful chemicals and particulates.

However, does all air filter work for your compressed air system? Well it is depending on your working conditions, the project you’re completing and how often you use your equipment, you’ll need to make an precise choice. This guide will detail how air compressor filters work, why they’re important, what type of Air Compressor Filter to buy and when you should replace it.

①Assess the requirements of your application. Different industry require different solution.
②What type of filtration is needed? Coalecent filter material removes solid and liquied contaminants from gas streams. Particulate filter media removes solid from gas streams. Absorber media removes hydrocarbon vapors from gas streams.
③Any specific micron of filtration performance you required?
④What are the working conditions of your application? Mainly criteria of consider : Flow, working pressure, temperature,pressure loss,material of structure (stainless steel, aluminum alloy, mild steel, carbon steel)
⑤Filter flow rate from how much SCFM? Pressure drop should be less than **bar? For saving the cost and protect environment.

How Does a Compressed Air Filter Work?

A. Air compressor filter does is keep water, oil and dirt from down to your pneumatic tools, making them essential to the overall health of your air system. These kinds of dust or particles can damage or destroy your equipment if you don’t offer proper filtration. If they pass through those tools, your project will be affect in negatively, such as by destroying a paint job or contaminating foods in production facilities.

One of the benefits of air filters is that they are reasonable investments. What you have to keep up with wear and replace them in time, it costs far less to purchase new filters than to pay for repair costs for damaged pneumatic equipment or air compressors. You’ll receive result in positive, as keeping the air that passes through your compressor clean is critical to tool and equipment health as well as work quality.

Features & Benefits


①The new dual-level design makes it easier for users to observe the condensate discharge inside the filter and judge whether the drain is blocked;
② Parallel design, reducing the time of installation and paralleling;
③ No screw design, easy to replace the Filter Element;
④The material of the sodium borosilicate glass fiber filter element ensures high-efficiency filtering effect and meets the ISO8573.1-2010 standard;
⑤The shell has a service life of 15 years, and the filter element has 6000-8000 hours of filtration level except ACS;
⑥Wall buckle design, easy to install on the wall.


Guaranteed Quality
All YUKA series Compressed Air Filters have TWO GUARANTEES.
The first guarantee is a filter element PF/AO/AA/AX grade with 6000-8000 hours serve life. ACS/AR/AAR grade with 2000-3000 hours.
This ensures that the solid particle, oil aerosol and vapor content selected conforms to the ISO 8573.1 international standard.

The second guarantees the compressed air filter housing for fifteen years under recommended operating conditions.

International test and measurement standard ISO12500
>ISO 12500 has made clear a general test and definition method for the compressed air filter manufacturers. The main performance
parameters are the air inlet oil content and particles size distribution of the solid particles.
>ISO12500-1 specifies the test requirements for the filtration performance of oil aerosol in the coalescing filter.
>ISO12500-2 specifies the test requirements of adsorption filters for the removal performance of steam adsorption.
>ISO12500-3 specifies the requirements for removal of particulate matter from solid pullutants.


Product are test with the international advanced testing equipment based on standard ISO12500, Which is equivalent to the standard
ISO8573.1-2010 quality standard, and provide filter performance test report.

Filtration Grade PF AO AA AX ACS AR AAR
Particle removal (ISO12500-3) 5μm 1μm 0.01μm 0.01μm - 1μm 0.01μm
Outlet oil aerosol concentration (ISO12500-1) 5mg/m³ 0.6mg/m³ <0.01mg/m³ <0.001mg/m³ <0.004mg/m³ - -
Filtration performance of Particle (ISO12500-3) - 99.999+% 99.999+% 99.999+% 99.999+% 99.999+% 99.999+%
Filtration performance of oil (ISO12500-1) 50% 80+% 99.9+% 99.99+% - - -
Element spanlife 6000 hours 6000 hours 6000 hours 6000 hours 2000-3000 hours 4000-6000 hours 4000-6000 hours
Filtration Type Coalescence Coalescence Coalescence Coalescence Adsorption Coalescence Coalescence
Airflow direction From inside to outside From outside to inside

Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7bar g(100psi g).
For the application in other working pressure, please refer to the correction factors.
Model Pipe size Flow rates Dimension (mm)
L/S m³/min scfm W(Width) D(Depth) H(Height) A B C(clearance for housing)
HG017 RC1/2" 16.7 1.0 35.3 92 83 265 - - -
HG025 RC3/4" 25 1.5 53 92 83 265 - - -
HG030 RC1/2" 30 1.8 63.6 92 83 285 17.5 193 158
HG035 RC3/4" 33.3 2 70.6 92 83 285 17.5 193 158
HG058 R3/4" 46.7 2.8 98.9 132 120 393.5 24.4 257.6 195
HG068 RC1" 60 3.6 127.1 132 93.3 393.5 24.4 257.6 195
HG080 RC1" 80 4.8 169.5 132 119.6 502 24.4 356.2 300
HG145 RC1" 120 7.2 254.2 132 19.6 502 24.4 356.2 300
Technical requirements Maximum operating pressure: 10 barg Maximum operating temperature: 80°C Minimum operating temperature:1.5°C
Pressure Barg 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Psig 15 29 44 59 73 87 100 116 131 145 160 174 189 203 219 232
Correction factor 0.38 0.53 0.65 0.76 0.85 0.93 1.00 1.07 1.13 1.19 1.23 1.31 1.36 1.41 1.46 1.51
