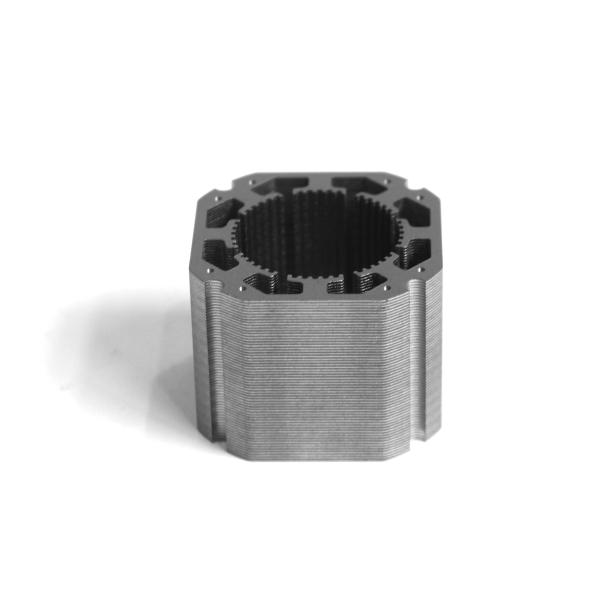

YUMA Laminated Stator Core Is Made Up Of Iron 39mm NEMA 16 Stepper Motor Rotor
YUMA Laminated Stator Core Is Made Up Of Iron 39mm NEMA 16 Stepper Motor Rotor
Specifications
Brand Name :
YUMA
Model Number :
NEMA16(39mm) (BYG 1.8°)
Certification :
IATF16949, ISO14001，ISO45001
Place of Origin :
Changzhou, China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
3 Million sets/Month
Delivery Time :
20days
Packaging Details :
Plastic bag+Carton box+wooden pallet
Name :
NEMA Stepper motor core
Material :
B35A300
Application :
Industrial Control
Is it customizable :
Customizable
certification :
IATF16949, ISO14001，ISO45001
Model :
NEMA16(39mm) stepper stator and rotor stack
Description

Motor Core For Industrial Control NEMA Stepper motor core

NEMA16(39mm stepper stator and rotor)

Specifications:

NEMA16(39mm stepper stator and rotor)
39 BYG 1.8° normal 39 BYG 1.8° middle inner hole 39 BYG 1.8° large inner hole
stator ID 21.85mm stator ID 23.85mm stator ID 25.85mm
rotor OD 21.96mm rotor OD 23.87mm rotor OD 25.88mm
rotor ID 5/6.5/8mm rotor ID 5/6.35/6.5/8mm rotor ID 5/6.5/8/9.45mm

We support

stator core restacking
stator core teeth
stator core winding
stator iron core

Description:

NEMA 16(39mm) motor core(stator and rotor),

Yuma has existing moulds, which can save customers the cost of developing moulds.

We use Baosteel high-quality silicon steel, which meet Global requirements.

Cooperating with Kuroda in Japan, we can customize and develop moulds for customers, and have rich experience in motor core mould development

Applications:

Robotics

Textile

Medical

Agriculture

Industrial

Logistics

Household Electrical

Automobile

New energy

Competitive Advantage:
By using rotary lamination, the problem of the same plate difference on the material is eliminated, and the parameters such as the parallelism, flatness and the dynamic balance of the rotor with lateral run out of the product can reach the ideal effect of the customer.
At present, and the annual production is nearly 35 million sets. More than 100 customers use our products stably for a long time.
In the research and development of new products, Yuma will continue to optimize the tooth shape / groove type / inner hole of
products according to the needs of customers, so as to get better new products. At the same time, through the optimization of
products, the cost performance of products is continuously improved.
