Diy Stator Lamination Welding 23/45mm Brushless AC Servo Motor Stator Rotor
Diy Stator Lamination Welding 23/45mm Brushless AC Servo Motor Stator Rotor
Diy Stator Lamination Welding 23/45mm Brushless AC Servo Motor Stator Rotor
Diy Stator Lamination Welding 23/45mm Brushless AC Servo Motor Stator Rotor
Diy Stator Lamination Welding 23/45mm Brushless AC Servo Motor Stator Rotor
Diy Stator Lamination Welding 23/45mm Brushless AC Servo Motor Stator Rotor
Specifications
Brand Name :
YUMA
Model Number :
60 SERIES Servo stator and rotor stack
Certification :
IATF16949, ISO14001，ISO45001
Place of Origin :
Changzhou, China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
3 Million sets/Month
Delivery Time :
20days
Packaging Details :
Plastic bag+Carton box+wooden pallet
Name :
Brushless DC motor core
Material :
B50A600
Application :
Industrial Control
Is it customizable :
Customizable
certification :
IATF16949, ISO14001，ISO45001
Model :
60 SERIES Servo stator and rotor stack
Description

Motor Core For Industrial Control Brushless AC Servo motor core 60 SERIES Servo stator and rotor stack

Specifications:

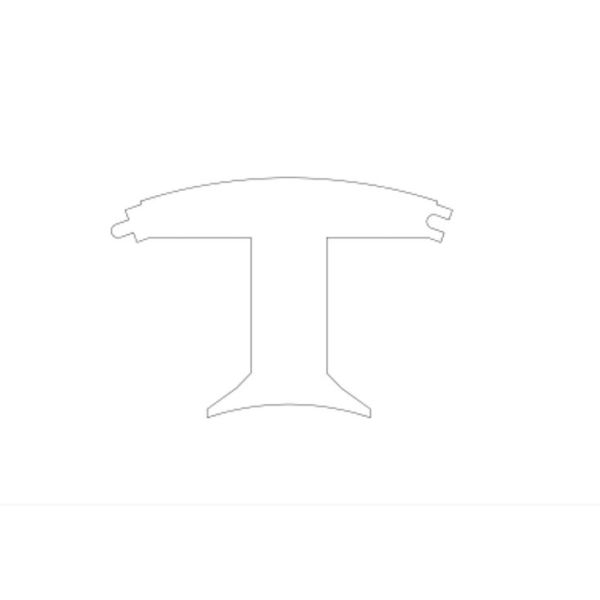

YSM2S-60STA
At present, it is designed as V-type riveting point, and the end frame is matched

Outer diameter Inner diameter Pole width Number of slot material Buttress skeleton Height of core
56.1 29.7 4.4 9 B35A300 YES L=23/45

We support

motor core length
motor core manufacturing
motor core material
motor core production
motor core stacking
motor core stamping
motor core stamping die
motor core stator
stator core stamping
motor rotor core

Description:

60 SERIES Servo stator and rotor stack

Yuma has existing moulds, which can save customers the cost of developing moulds.

We use Baosteel high-quality silicon steel, which meet Global requirements.

Cooperating with Kuroda in Japan, we can customize and develop moulds for customers, and have rich experience in motor core mould development

Applications:

Robotics

Textile

Medical

Agriculture

Industrial

Logistics

Household Electrical

Automobile

New energy

Competitive Advantage:
By using rotary lamination, the problem of the same plate difference on the material is eliminated, and the parameters such as the parallelism, flatness and the dynamic balance of the rotor with lateral run out of the product can reach the ideal effect of the customer.
At present, and the annual production is nearly 35 million sets. More than 100 customers use our products stably for a long time.
In the research and development of new products, Yuma will continue to optimize the tooth shape / groove type / inner hole of
products according to the needs of customers, so as to get better new products. At the same time, through the optimization of
products, the cost performance of products is continuously improved.
