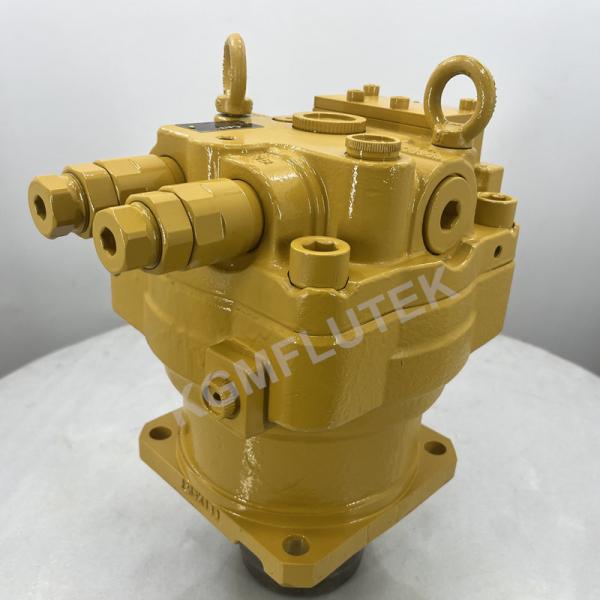

CAT336GC M5X180 Excavator Swing Motor 5160446 CAT Slewing Motor
CAT336GC M5X180 Excavator Swing Motor 5160446 CAT Slewing Motor
CAT336GC M5X180 Excavator Swing Motor 5160446 CAT Slewing Motor
CAT336GC M5X180 Excavator Swing Motor 5160446 CAT Slewing Motor
CAT336GC M5X180 Excavator Swing Motor 5160446 CAT Slewing Motor
CAT336GC M5X180 Excavator Swing Motor 5160446 CAT Slewing Motor
CAT336GC M5X180 Excavator Swing Motor 5160446 CAT Slewing Motor
CAT336GC M5X180 Excavator Swing Motor 5160446 CAT Slewing Motor
Specifications
Brand Name :
CAT
Model Number :
5160446
Certification :
ISO
Place of Origin :
Japan
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
1000sets per month
Delivery Time :
1-3 days
Packaging Details :
Wooden case
Product name :
CAT Excavator Slewing Motor
Part name :
Excavator Swing Motor
Part number :
5160446
Model :
M5X180
Condition :
100% Original Brand New
Application model :
CAT336GC
After-sales service provided :
Video Support
Application :
Crawler Excavator
Description


CAT336GC M5X180 Swing Motor 5160446 CAT Excavator Slewing Motor



Product Details

CAT336GC M5X180 Swing Motor 5160446 CAT Excavator Slewing Motor
Product name: CAT Excavator Slewing Motor
Part number: 5160446
Part name: Hydraulic swing motor
Brand Name: CAT
Place of Origin: Japan
Condition: 100% original brand New
Material: Iron & Steel
Application: Crawler Excavator
Applicable model: CAT336GC
Usage: Hydraulic Machinery Industry, Construction Machinery
Dimension(L*W*H): 52x52x60CM
Weight(KGS): 65KGS
Delivery time: 1-3 Days after we received the payment
After Warranty Service: Online support , Video technical support
Warranty: 6 months



M5X180 Hydraulic Swing Motor Spare Parts

PART DESCRIPTION QTY
PISTON SHOE 9
CYLINDER BLOCK 1
VALVE PLATE M 1
RETAINER&BALL GUIDE 1
RETAINER PLATE 1
BALL GUIDE 1
SHOE PLATE 1
FRICTION PLATE 2
STEEL PLATE 3
DRIVE SHAFT 1
PRESS PIN 6
BALL GUIDE SPACER 1
SPACER 1
COIL SPRING 1
SNAP RING 1



Features

1. Integrated structure with Axial Piston Motor and Reducer.
2. High reliability - all main parts are made by Automatic CNC producing line.
3. High efficiency - the axial piston motor maintains high efficiency.
4. Compact in volume and low noise.
5. Two-speed function, exchange in high speed and strong torque.
6. Parking brake - included as standard for safety
7. Exchangeable: same flange dimensions with original final drive.




Specifications-M2X/M5X Series Motor

Model M2X63 M2X210 M5X80 M5X130 M5X180 M5X250
Displacement (cm3) 64 210.1 79 129.2 180.1 250.1
Pressure (MPa) Rated 29.4 29.4 33 32.4 32.4 33
Max 34.3 34.3 40 39.2 39.2 40
Max speed (min-1) 2,200 1,400 2,200 1,850 1,680 1,520
SPARE PARTS FOR EXCAVATOR MODELS
CATERPILLAR: 304CCR, 305.5, 305CCR, 307C, 307CSB, 307D, 308DCR, 308DCRSB, 311C, 311DLRR, 312C, 312CL, 312D, 312DL, 314CLCR, 315CL, 315DL, 318CL, 320B, 320C, 320D 320D, 321CLCR, 322D, 320B, 320C, 320D, 325B, 325C, 325D, 330B, 330C, 330D, 336B, 336C, 336D, 345B

We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.

All of our swing motors are packed well in wooden case.
