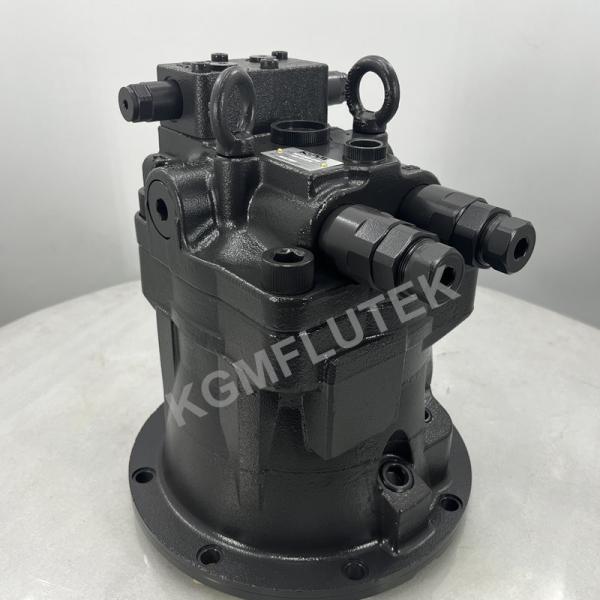

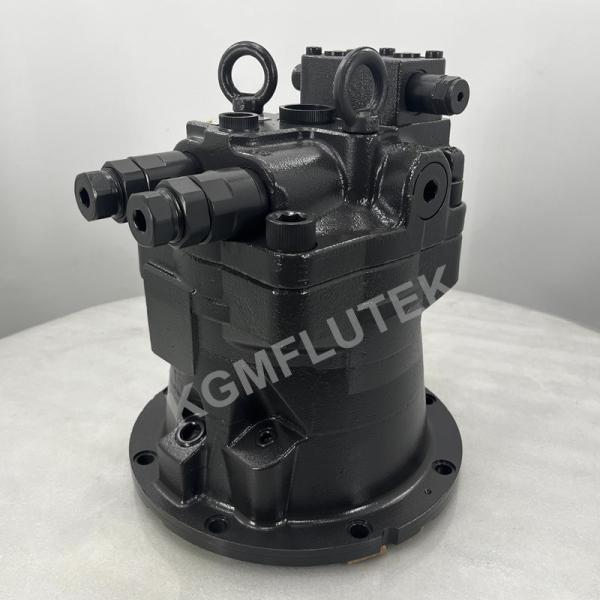

M2X Series EC210B Excavator Swing Motor M2X120B-CHB-10A-47/270
M2X Series EC210B Excavator Swing Motor M2X120B-CHB-10A-47/270
M2X Series EC210B Excavator Swing Motor M2X120B-CHB-10A-47/270
M2X Series EC210B Excavator Swing Motor M2X120B-CHB-10A-47/270
M2X Series EC210B Excavator Swing Motor M2X120B-CHB-10A-47/270
M2X Series EC210B Excavator Swing Motor M2X120B-CHB-10A-47/270
M2X Series EC210B Excavator Swing Motor M2X120B-CHB-10A-47/270
M2X Series EC210B Excavator Swing Motor M2X120B-CHB-10A-47/270
Specifications
Brand Name :
KPM
Model Number :
M2X120B-CHB-10A-47/270
Certification :
ISO
Place of Origin :
Japan
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
1000sets per month
Delivery Time :
1-3 days
Packaging Details :
Wooden case
Product name :
M2X Series Swing Motors
Part name :
Excavator Swing Motors
Model :
M2X120B-CHB-10A-47/270
Condition :
Original Brand New
Application :
VOLVO Excavator
Application model :
EC210B
After-sales service provided :
Free Online Technical Support
Inventory :
In stock
Description

M2X Series Swing Motors EC210B Swing Motor M2X120B-CHB-10A-47/270



Product Details

M2X Series Swing Motors EC210B Swing Motor M2X120B-CHB-10A-47/270
Product name: M2X Series Swing Motors

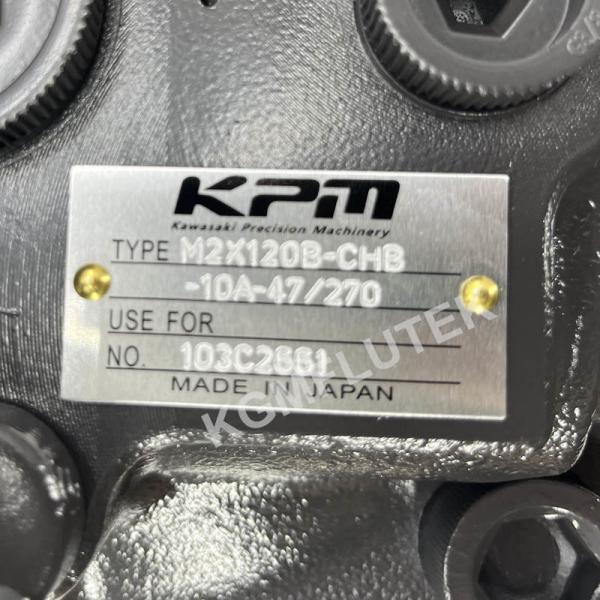

Model: M2X120B-CHB-10A-47/270
Part name: Hydraulic swing motor
Brand Name: KAWASAKI KPM
Place of Origin: Japan
Condition: 100% original brand New
Material: Iron & Steel
Application: Crawler Excavator
Applicable model: EC210B
Usage: Hydraulic Machinery Industry, Construction Machinery
Dimension(L*W*H): 52x52x60CM
Weight(KGS): 60KGS
Delivery time: 1-3 Days after we received the payment
After Warranty Service: Free Online Technical Support
Warranty: 6 months



M2X120 Hydraulic Swing Motor Spare Parts

PART DESCRIPTION QTY
M2X120 PISTON SHOE 9
M2X120 CYLINDER BLOCK 1
M2X120 VALVE PLATE M 1
M2X120 RETAINER PLATE 1
M2X120 BALL GUIDE 1
M2X120 SHOE PLATE 1
M2X120 FRICTION PLATE 2
M2X120 STEEL PLATE 3
M2X120 DRIVE SHAFT 1
M2X120 PRESS PIN 6
M2X120 ALL GUIDE SPACER 1
M2X120 SPACER 1
M2X120 COIL SPRING 1
M2X120 SNAP RING 1



Features

1. Integrated Valving For Swing Function
The M2X / M5X Series Swing Motors are designed to operate two or five-section operator functions. The motors feature integrated valving for the swing function and are available in two voltage configurations.

2. Compact Design
The M2X / M5X Series Swing Motors are high-quality, long-lasting products that have been designed to withstand the rigors of high-volume commercial applications. The motors feature a compact design that allows you to easily integrate them into your existing equipment.


3. Directly Connected To Reduction Gear
The M2X / M5X series swing motors are used to drive the main swing. They can be directly connected to reduction gearboxes with high torque and low speed, so that the overall performance is good.





Specifications-M2X / M5X Series Motor

Model M2X63 M2X210 M5X80 M5X130 M5X180 M5X250
Displacement (cm3) 64 210.1 79 129.2 180.1 250.1
Pressure (MPa) Rated 29.4 29.4 33 32.4 32.4 33
Max 34.3 34.3 40 39.2 39.2 40
Max speed (min-1) 2,200 1,400 2,200 1,850 1,680 1,520

We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.

All of our swing motors are packed well in wooden case.
