M5X180CHB-10A-12A-51A/260 Excavator Rotary Motor For SANY SY235-8 SY235-9
M5X180CHB-10A-12A-51A/260 Excavator Rotary Motor For SANY SY235-8 SY235-9
M5X180CHB-10A-12A-51A/260 Excavator Rotary Motor For SANY SY235-8 SY235-9
M5X180CHB-10A-12A-51A/260 Excavator Rotary Motor For SANY SY235-8 SY235-9
M5X180CHB-10A-12A-51A/260 Excavator Rotary Motor For SANY SY235-8 SY235-9
M5X180CHB-10A-12A-51A/260 Excavator Rotary Motor For SANY SY235-8 SY235-9
M5X180CHB-10A-12A-51A/260 Excavator Rotary Motor For SANY SY235-8 SY235-9
M5X180CHB-10A-12A-51A/260 Excavator Rotary Motor For SANY SY235-8 SY235-9
Specifications
Brand Name :
KPM
Model Number :
M5X180CHB-10A-12A-51A/260
Certification :
ISO
Place of Origin :
Japan
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
1000sets per month
Delivery Time :
1-3 days
Packaging Details :
Wooden case
Product name :
M5X180CHB Rotary Motor
Type :
Excavator hydraulic spare parts
Model :
M5X180CHB-10A-12A-51A/260
Condition :
Original Brand New
Application :
Sany Crawler Excavator
Application model :
SY235-8 SY235-9
After-sales service provided :
Online technical support
Features :
High reliability
Description

M5X180CHB-10A-12A-51A/260 Rotary Motor For SANY SY235-8 SY235-9



Product Details

M5X180CHB-10A-12A-51A/260 Rotary Motor For SANY SY235-8 SY235-9

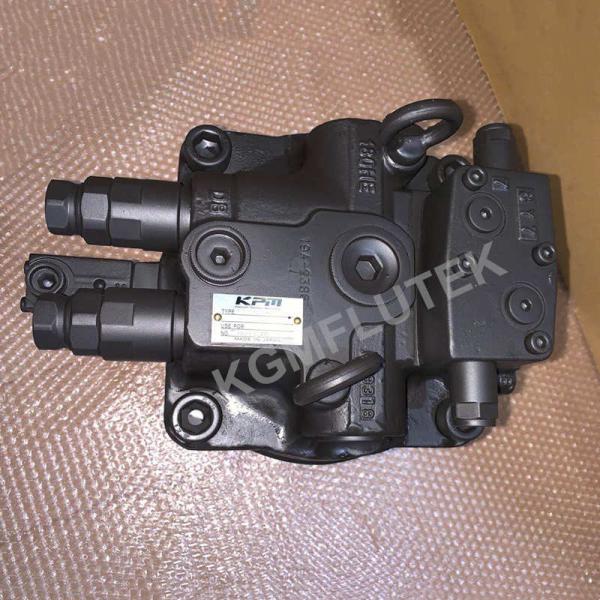

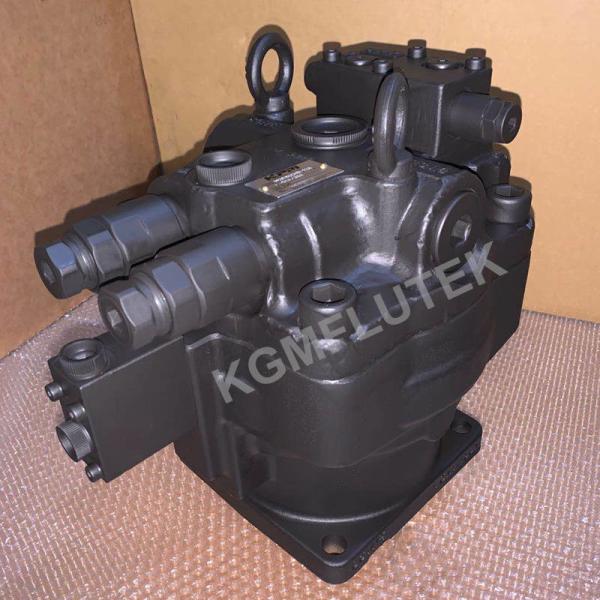

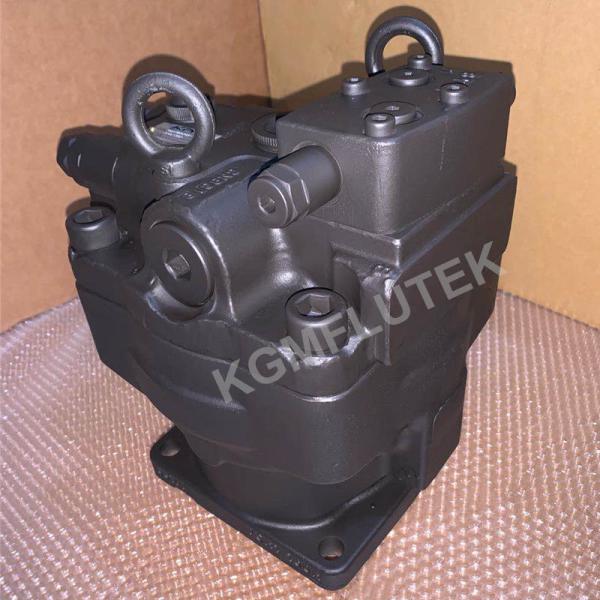

Product name: M5X180CHB Rotary Motor
Model: M5X180CHB-10A-12A-51A/260
Part name: Hydraulic swing motor
Brand Name: KAWASAKI KPM
Place of Origin: Japan
Condition: 100% original brand New
Material: Casting Iron & Steel
Application: Sany Excavator
Applicable model: SY235-8 SY235-9
Usage: Hydraulic Machinery Industry, Construction Machinery Parts
Dimension(L*W*H): 52x52x60CM
Weight(KGS): about 85KGS
Delivery time: 1-3 Days after we received the payment
After Warranty Service: Free Online Technical Support
Warranty: 6 months
Guarantee: We will check the swing motor and send detail pictures to buyer to confirm before shipping.



M5X180 Hydraulic Swing Motor Spare Parts

We offer swing motor spare parts for M5X180. Spare parts include: Piston Shoe, Cylinder Block, Valve Plate, Retainer Plate/Set plate, Ball Guide, Shoe Plate/Thrust Plate, Friction Plate, Steel Plate, Drive Shaft, Press Pin, Guide Space, Coil spring and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement swing motor parts. Our parts can totally interchange with original Kawasaki, same specification and duration.

PART DESCRIPTION QTY
M5X180 PISTON SHOE 9
M5X180 CYLINDER BLOCK 1
M5X180 VALVE PLATE M 1
M5X180 RETAINER PLATE 1
M5X180 BALL GUIDE 1
M5X180 SHOE PLATE 1
M5X180 FRICTION PLATE 2
M5X180 STEEL PLATE 3
M5X180 DRIVE SHAFT 1
M5X180 PRESS PIN 6
M5X180 ALL GUIDE SPACER 1
M5X180 SPACER 1
M5X180 COIL SPRING 1
M5X180 SNAP RING 1



Features


1. The M2X series are swash plate type piston motors developed for application to swinging operation of construction machines, and are provided with a built-in mechanical brake, a relief valve, and a make-up valve.

2. The design has enabled an extraordinarily compact motor with the piston/cylin-der part, mechanical brake part, and attached valves part neatly arranged respectively.


3. The mounting flange of the motor has been so enlarged as to enable it to be directly connected with the ring gear of a reduction gear.


4. M5X has been developed to realize the lighter weight, more compact size and stronger output power on the basis of M2X technology.






Specifications-M2X / M5X Series Motor

Model M2X63 M2X210 M5X80 M5X130 M5X180 M5X250
Displacement (cm3) 64 210.1 79 129.2 180.1 250.1
Pressure (MPa) Rated 29.4 29.4 33 32.4 32.4 33
Max 34.3 34.3 40 39.2 39.2 40
Max speed (min-1) 2,200 1,400 2,200 1,850 1,680 1,520

We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.

All of our swing motors are packed well in wooden case.
