Automatic Flexo Printing Slotting Die-cutting Stacking Machine, Lead-edge Feeding
Automatic Flexo Printing Slotting Die-cutting Stacking Machine, Lead-edge Feeding
Automatic Flexo Printing Slotting Die-cutting Stacking Machine, Lead-edge Feeding
Automatic Flexo Printing Slotting Die-cutting Stacking Machine, Lead-edge Feeding
Automatic Flexo Printing Slotting Die-cutting Stacking Machine, Lead-edge Feeding
Automatic Flexo Printing Slotting Die-cutting Stacking Machine, Lead-edge Feeding
Automatic Flexo Printing Slotting Die-cutting Stacking Machine, Lead-edge Feeding
Automatic Flexo Printing Slotting Die-cutting Stacking Machine, Lead-edge Feeding
Automatic Flexo Printing Slotting Die-cutting Stacking Machine, Lead-edge Feeding
Automatic Flexo Printing Slotting Die-cutting Stacking Machine, Lead-edge Feeding
Automatic Flexo Printing Slotting Die-cutting Stacking Machine, Lead-edge Feeding
Automatic Flexo Printing Slotting Die-cutting Stacking Machine, Lead-edge Feeding
Specifications
Place of Origin :
China
Brand Name :
Yush
Model Number :
YKMD-Q
Certification :
CE
Price :
FOB: 30000~200000USD
Packaging Details :
Plastic Film or Wooden Box
Delivery Time :
30~60 working days
Payment Terms :
T/T
Supply Ability :
10 sets per month
MOQ :
1set
Type :
Carton Printer Slotter Die Cutter Machine
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
Customized
Warranty :
One year
Color :
Customer's Request
Condition :
New
Usage :
For carton print slotting and die cutting
Description

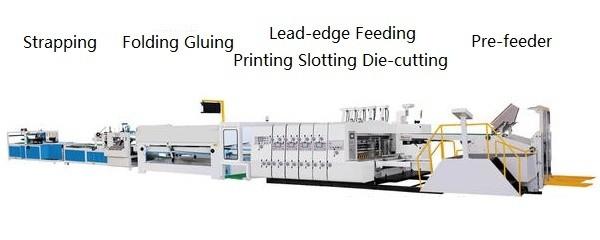

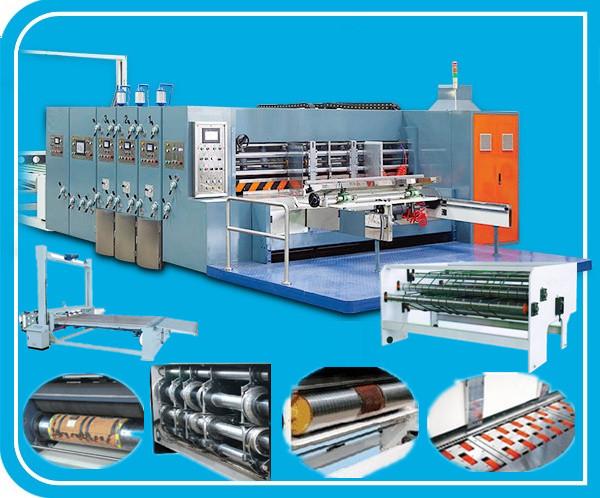

YKMD-Q Automatic Lead-edge Feeding Flexo Printing Slotting Die-cutting Stacking Machine

1) YKMD-Q Automatic Lead-edge Feeding Flexo Printing Slotting Die-cutting Stacking Machine can finish cardboard 1~5 color printing, slitting, scoring, slicing, slotting, die-cutting, creasing, stacking, etc. at one time.

2) Adopt vacuum adsorption lead-edge feeding cardboard, accurate and reliable.

3) Main motor adopts frequency conversion control and stays stable working.

4) PLC control, includes keeping records, speed, delivering paper in interval. Rubber roller moves up and down; malfunction alarm enunciator is controlled by electric motion automatically.

5) Each part is equipped with auto rise device.

6) Notch system adopts high-precision thread pole. with precise and reliable XKNC.

7) Each machinery group is shifted by electric motion and locked pneumatically.

8) Turning gear rubs precisely, equips with spraying and lubricating device which products less noise and can be used for a longer period.

9) Die cutter rubber roller strap revolving along the axis which helps to extend the using time of the rubber roller.

10) Electric control parts and main axletrees are implored so as to ensure their quality.

Max Sheet size

900*1200mm~1600*3000mm

Min Sheet Size

300*400~500*600mm

Max Printing Area

900*1000mm~1600*2800mm

Min Slotting Distance

120*120*120*120mm

Max Slot Depth

225~400mm

Max Die-cutting Size

900*1000mm~1600*2800mm mm

Max Stacking Height

1500mm

Design Speed

120~180pcs/min
